Made In China Rubber Vulcanizing Machine
Product Description:
1.Our rubber sheet vulcanizing press are of high automation level and compact advanced structure, suitable to vulcanize giant conveyer belt or rubber sheet, such as nylon conveyer belt, common conveyer belt, waste tire powder rubber sheet etc.
2.The machine equipped with front and rear pallet device, it can be convenient loading and discharging.
3.The main machine is of frame structure and equipped with special purpose hydraulic unit. Both the hot plates and piston plunger are all made of superior material, they are accurately processed and have high etch and wear resistance. The control system has been taken up with PLC so as to realize multi program automatic control of curing process, for example, the temperature of the hot plates can be measured and regulated automatically. This will improve the control level and provide with high efficiency of production and low intensity of labor.
Technical parameters:
Type |
XLB-DQ 400×400×2 |
XLB-DQ 400×400×2 |
XLB-DQ 400×400×2 |
XLB-DQ 450×450×2 |
XLB-DQ 450×450×2 |
|
Total pressure (MN) |
0.25 |
0.50 |
0.50 |
1.00 |
1.00 |
|
Plate size (MM) |
400×400 |
400×400 |
400×400 |
450×450 |
450×450 |
|
Plate clearance (mm) |
125 |
125 |
125 |
125 |
125 |
|
Working layer number |
2 |
2 |
2 |
2 |
2 |
|
Piston stroke (mm) |
250 |
250 |
250 |
250 |
250 |
|
Plate pressure (kg/cm*cm) |
20 |
31 |
31 |
49 |
49 |
|
Main motor power(KW) |
3 |
2.2 |
2.2 |
2.2 |
2.2 |
|
Overall dimension (L×W×H) (mm) |
1300×800×1500 |
2400×550×1500 |
2400×550×1500 |
1500×600×1500 |
2450×600×1550 |
Weight(kg) |
1150 |
1300 |
3200 |
2100 |
3600 |
Type |
XLB-DQ 600×600×2 |
XLB-DQ 600×600×2 |
XLB-DQ 600×600×2 |
XLB-DQ 750×850×2(4) |
|
Total pressure (MN) |
1.00 |
1.00 |
1.00 |
1.60 |
|
Plate size (mm) |
600×600 |
600×600 |
600×600 |
750×850 |
|
Plate clearance (mm) |
125 |
125 |
125 |
125 |
|
Working layer number |
2 |
2 |
2 |
2(4) |
|
Piston stroke (mm) |
250 |
250 |
250 |
250(500) |
|
Plate pressure (kg/cm*cm) |
28 |
28 |
28 |
25 |
|
Main motor power(KW) |
2.2 |
2.2 |
2.2 |
3 |
|
Overall dimension (L×W×H) (mm) |
1600×750×1550 |
2650×750×1550 |
1410×680×1750 |
1900×950×2028 |
|
Weight (kg) |
2500 |
4600 |
3500 |
6500(7500) |

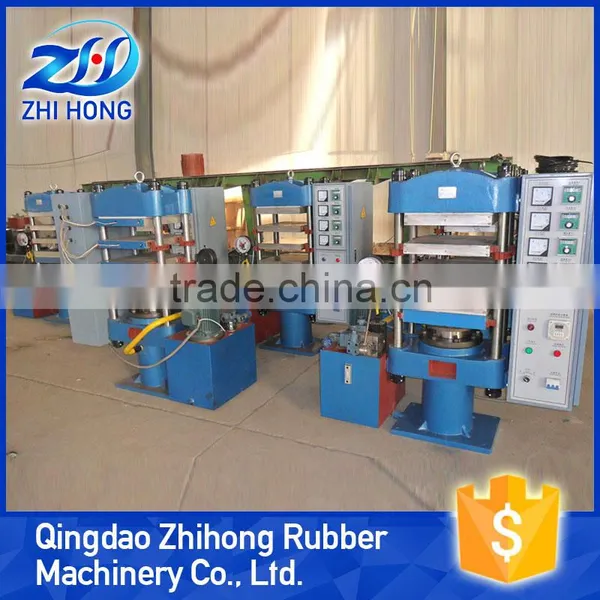

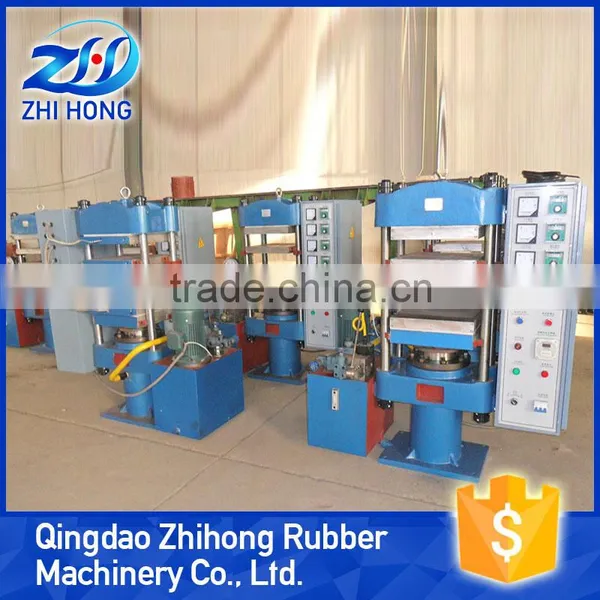

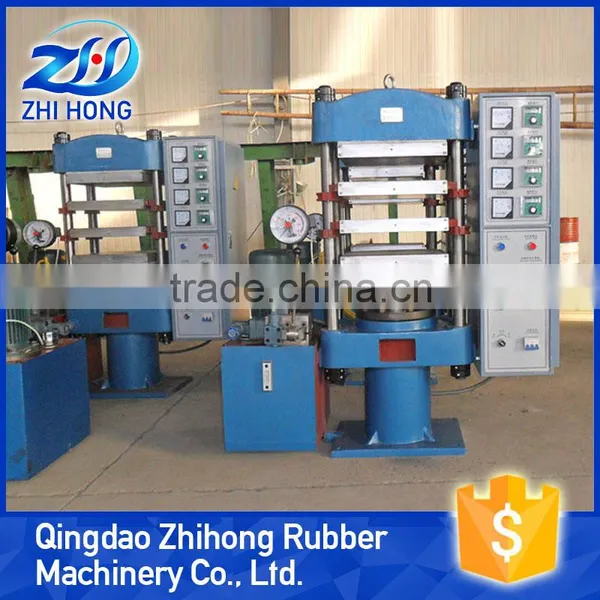

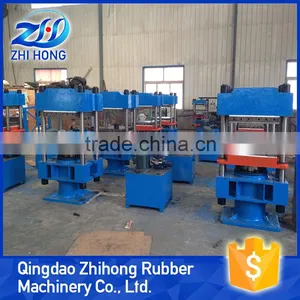

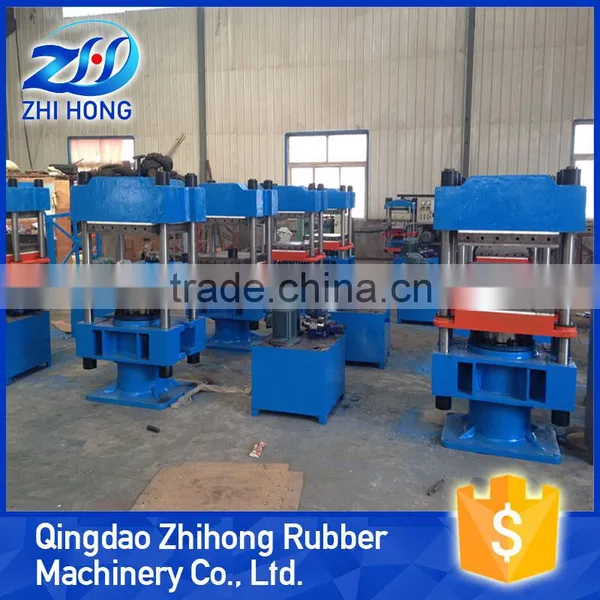

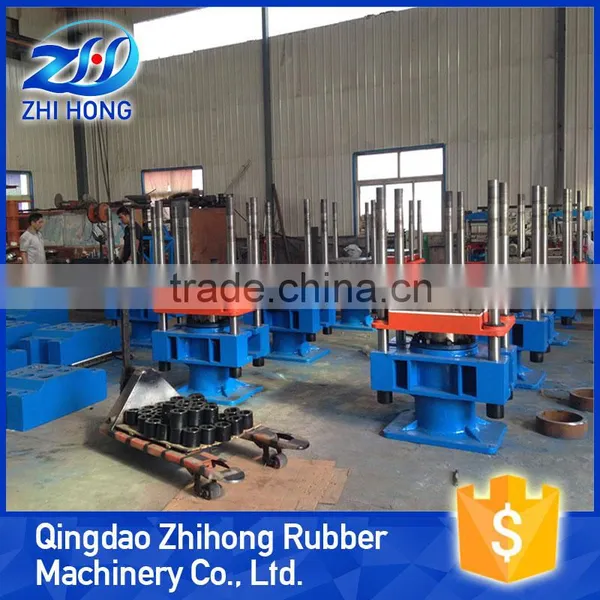

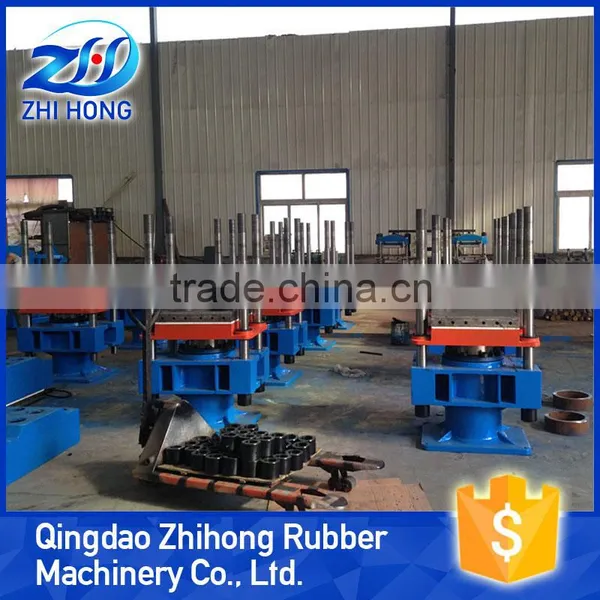

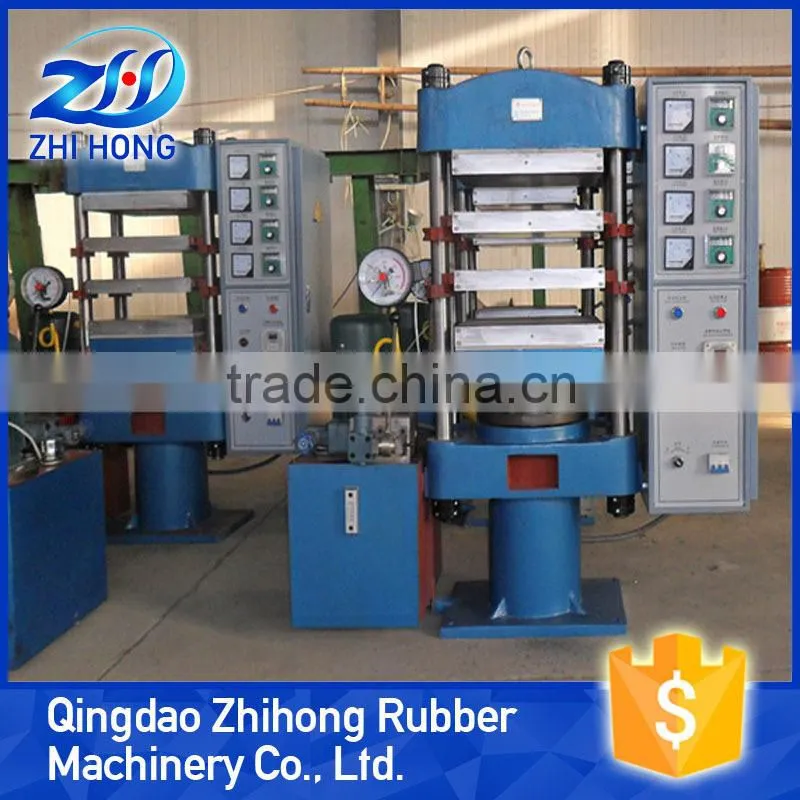

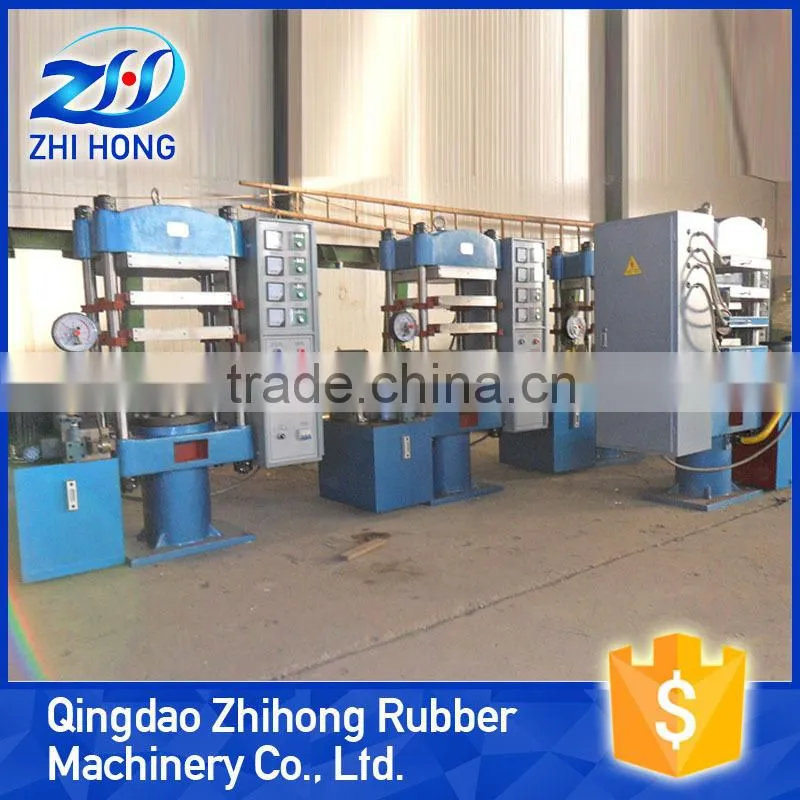

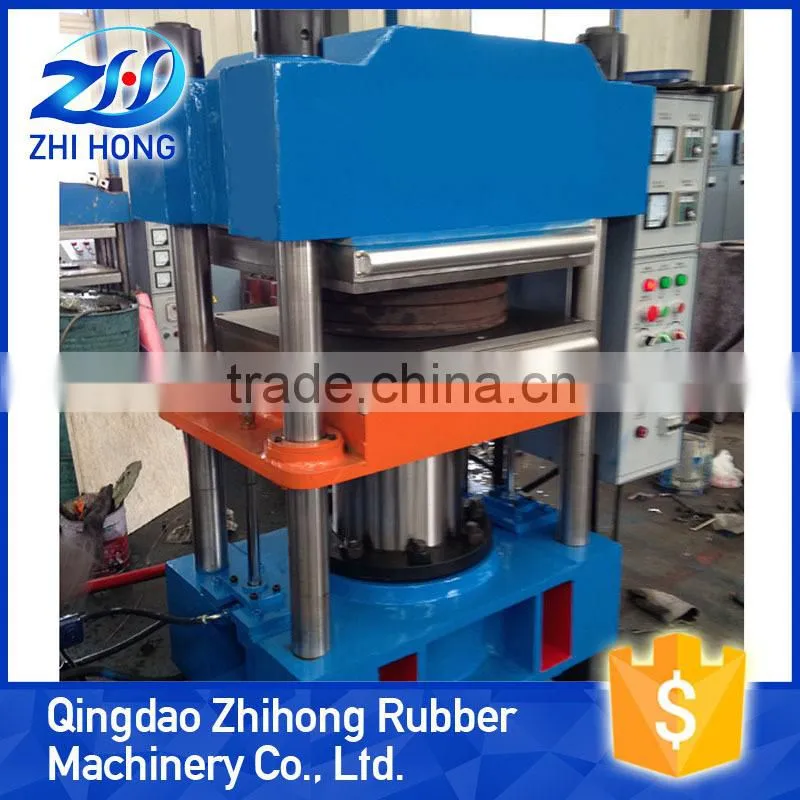

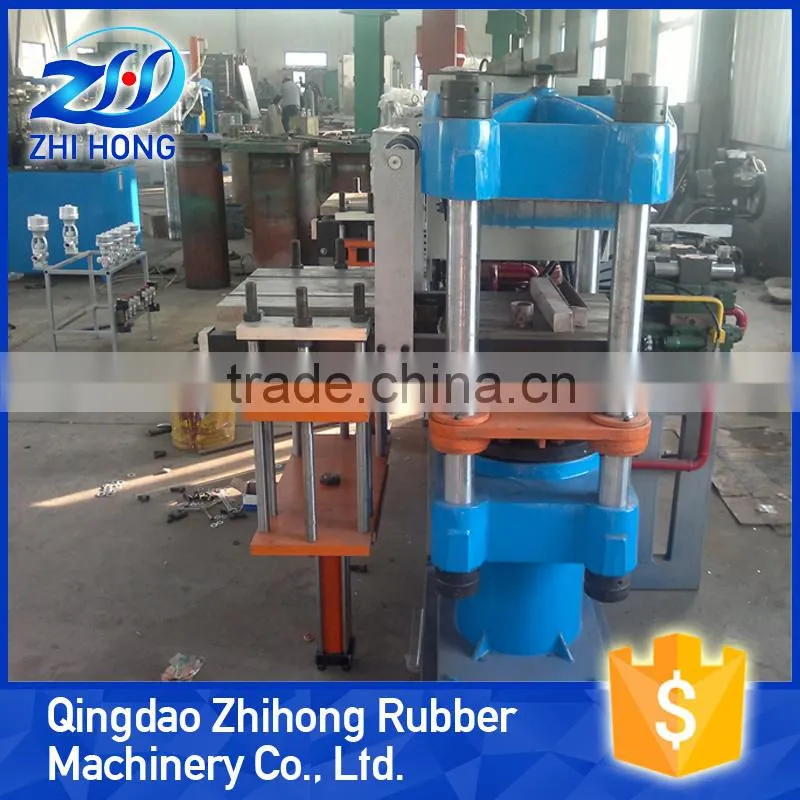

Details Show Of Our Rubber Vulcanizing Machine:

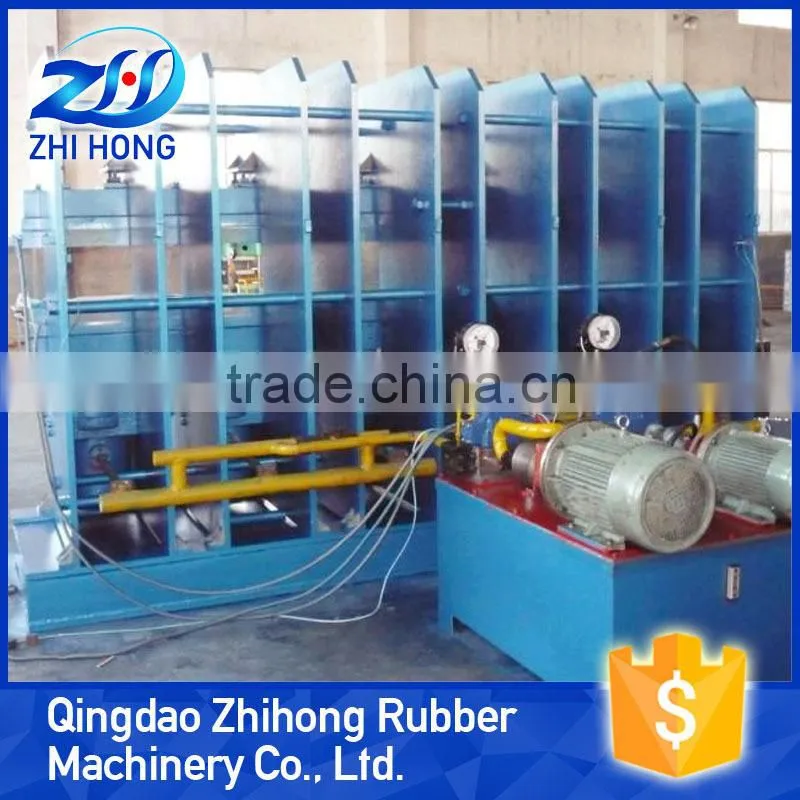

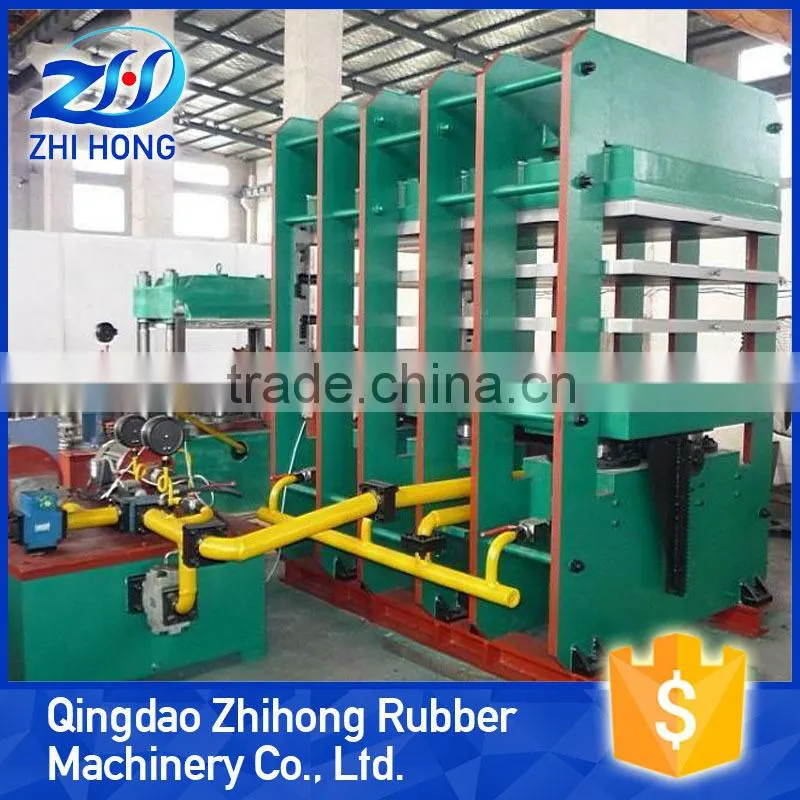

Details Show Of Our Conveyor Belt Vulcanizing Press:
A Little Tip:
We can design and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.We have a group of professional engineers who engaged in this field for more than 15 Years in charge of designing,manufacturing, installing,testing. So we can guarantee that our machines will be running with good performance based on high quality. Good after-sales service will be satificated with you.
More Read, More Trust:
Packing Details:
Please Feel Free To Contact Us For Further Information!
