Gold Supplier Rubber Tile Hydraulic Vulcanizing Press
Advantage:
1. High speed open/close molds, high production efficiency
2. Automatic in/out mold and ejector device, low labor strength
3. obtained ISO CE Certifications
vide one year quality guarantee
5.provide all kinds of rubber machine
Rubber Tile Hydraulic Vulcanizing Press
1.Usage
Rubber tile press machine mainly used to vulcanize various kinds of rubber tiles, rubber mats etc. only need different molds.
2.Structure
Rubber tile press machine is column structure, including main machine, hydraulic station, electric controlling cabinet.
Main machine is composed by base, plunger piston, platform, beam, automatic mould pushing-out device and compulsory mould opening device.
3. Materials of main component
3.1. hot plate : high quality Q235 steel board.
3.2. hydraulic cylinder: is made of cast steel of ZG35.
3.3. piston : is made of chilled cast iron, the hardness of surface is approx 60-70HS.
4. Main technical parameters
Model |
XLB-D550x550x4 |
Total pressure (MN) |
0.5 |
Plate size (mm) |
550x550x45 |
Daylight (mm) |
150 |
Daylight no. |
4 |
Piston stroke (mm) |
600 |
Motor power (kw) |
3.0 |
Overall size (mm) |
2200x900x2200 |
Weight (Kg) |
3600 |
Packaging
wooden casse, plastic and pallet for long distance transport.

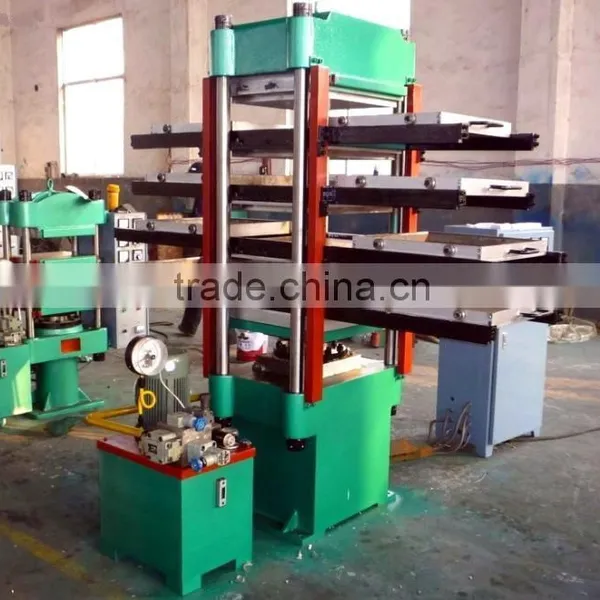

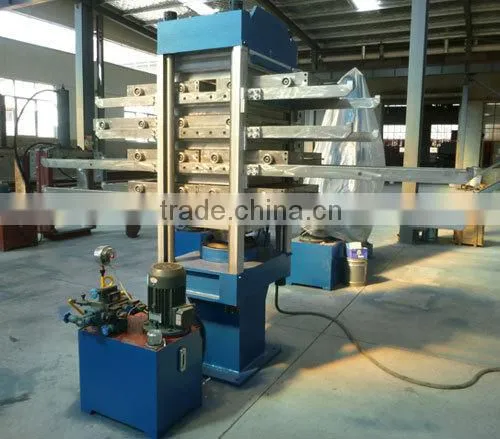

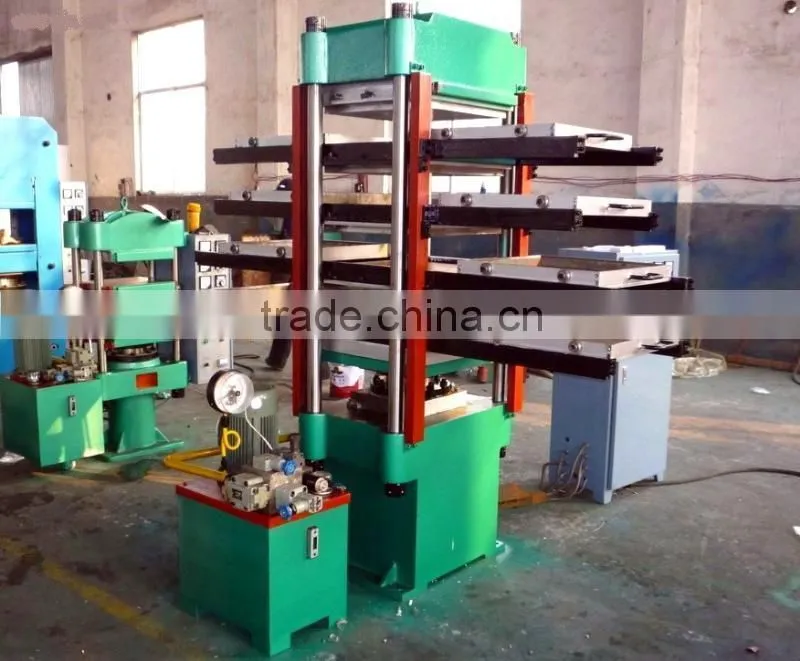

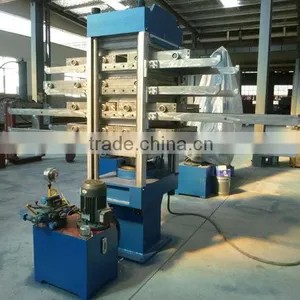

Rubber tile press machine pictures

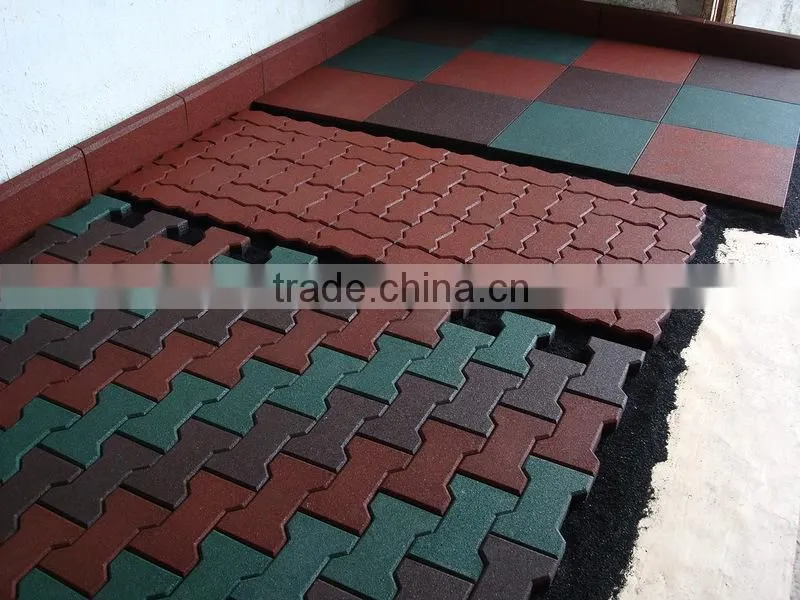

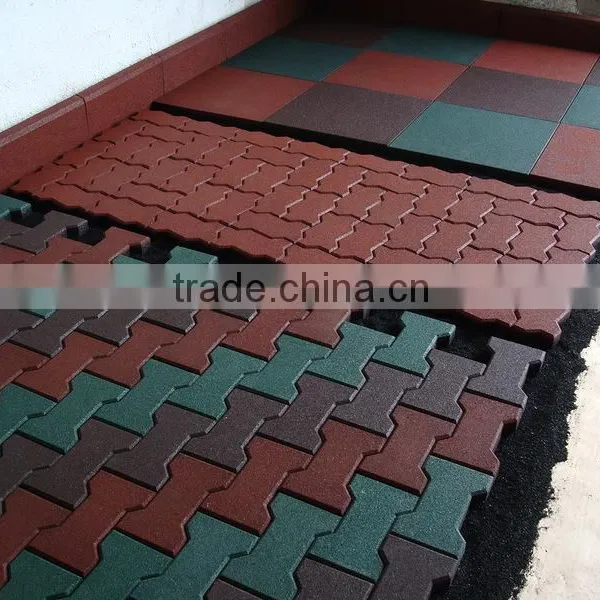

Tiles pictures
Our warranty time is 13 months, during guarantee period, the cost of any spare parts or new accessory should be borne by the seller;Beyond the warranty period we only charged for the cost of spare part.
Qingdao Zhihong Rubber Machinery CO.,LTD, we have a group of professional engineers who engaged in this job for more than 15 years in charge of designing, manufacturing, installing, testing. So we can guarantee that our machines will be running with good performance based on high quality. good after-sales service will be satisfied with you.
We sincerely hope to establish long time business relationships with domestic and foreign friends, your attention and cooperation will be highly appreciated.
