Electric Hot Air Drying Oven for PU polyurethane Rubber Silicone Products oven
Introduction of the machine structure.
DYG series vulcanizing oven can be suitable for rubber, silicone rubber and PU Polyurethane etc. products.
Electric Hot Air Drying Oven adopts national science and technology commission key promotion of far infrared heating new technology, infrared components are heated after 2 - more than 15 micron far infrared ray radiation, when it is absorbed by the heated objects can be converted into heat energy, thereby gaining rapid drying effect, to shorten the production cycle, save energy, improve product quality, etc. Temperature control meter USES the import component, fashionable, easy to use, save energy!
Material and accessary:
Inside material: stainless steel 304

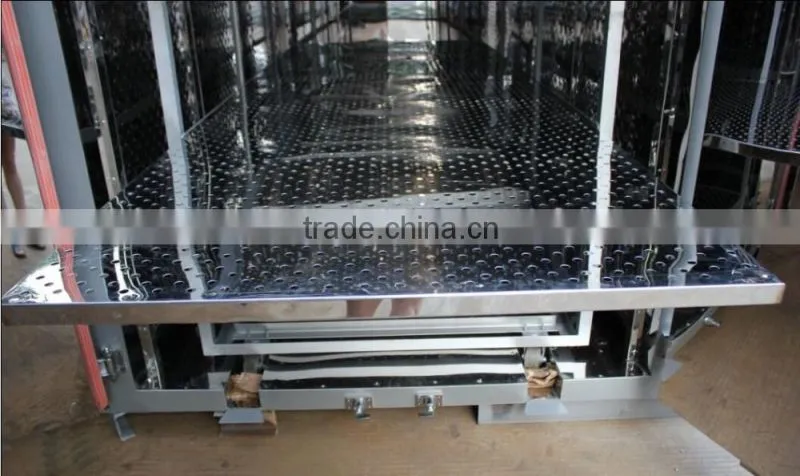

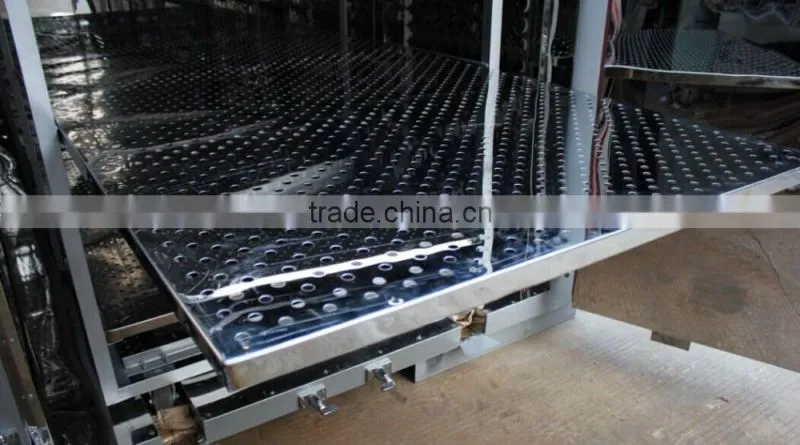

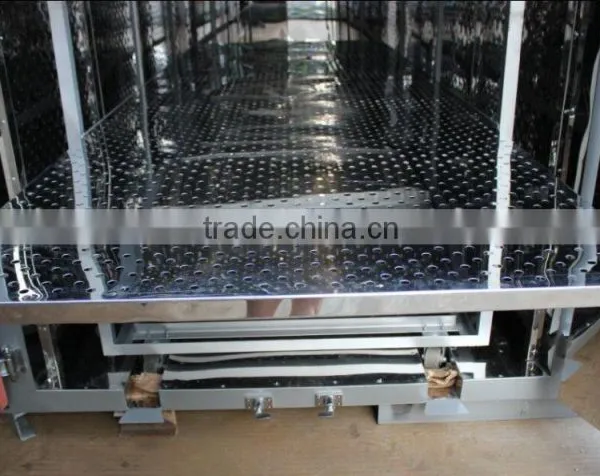

Equipped with stainless steel trolley one set
Technical parameters for Electric Hot Air Drying Oven :
Model |
voltage |
Power KW |
Working temperature scope(℃) |
Uniform temperature (℃) |
Motor powerW |
Working room size (mm) |
Overall size (mm) |
H×W×D |
H×W×D |
||||||
DYG-A |
380V |
9 |
room~300 |
±2.5 |
180 |
1000×800×800 |
1558×1410×1050 |
DYG-B |
380V |
12 |
room~300 |
±2.5 |
370 |
1000×1000×1000 |
1780×1360×1250 |
DYG-C |
380V |
15 |
room~300 |
±2.5 |
750 |
1200×1000×1200 |
1980×1360×1450 |
DYG-D |
380V |
18 |
room~300 |
±2.5 |
750 |
1500×1200×1000 |
2180×1560×1250 |
DYG-E |
380V |
21 |
room~300 |
±2.5 |
1100 |
1500×1200×1200 |
2180×1560×1450 |
DYG-F |
380V |
24 |
room~300 |
±2.5 |
1100 |
1500×1200×1500 |
2180×1560×1750 |
Technical parameters Electric Hot Air Drying Oven (big model):
1.Name: Electric Hot Air Drying Oven PU polyurethane curing oven
2.Model : 3x1.5x1.5 M (DxWxH)
3.Working temperature scope: room ~300℃
4.Temperature control precision:±1℃
5.Heating power:36KW
6.Stainless steel trolley: 1set
7.Working room size: 3000x1500×1500mm (DxWxH)
8.Overall dimension: 3300×1860×2200mm(side control cabinet width 250mm)(DxWxH)
9.Packing wooden case dimension: 3400×2200×2300mm (DxWxH)
10.The time for temperature rising:
1.)Heating rate should be more than 0.5 ℃ / min, not more than 10 ℃ / min.
2.)From room temperature up to 150 ℃, not more than 20 to 25 minutes.
3.)From room temperature up to 250 ℃, not more than 30 minutes.

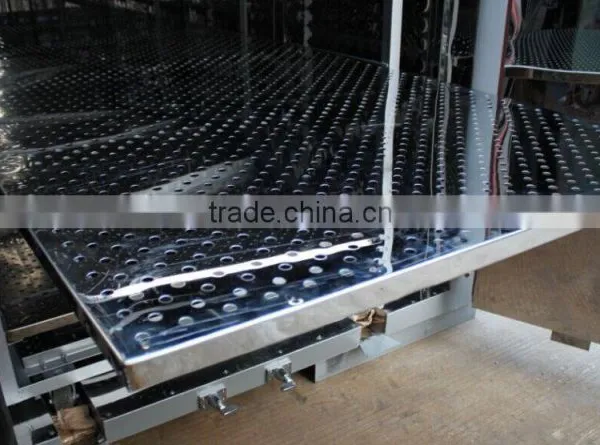

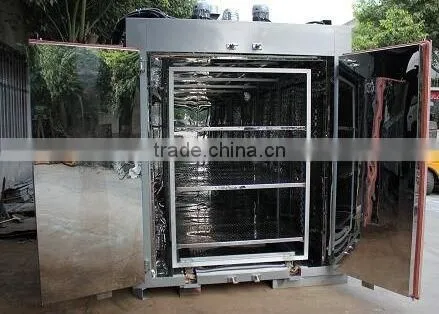

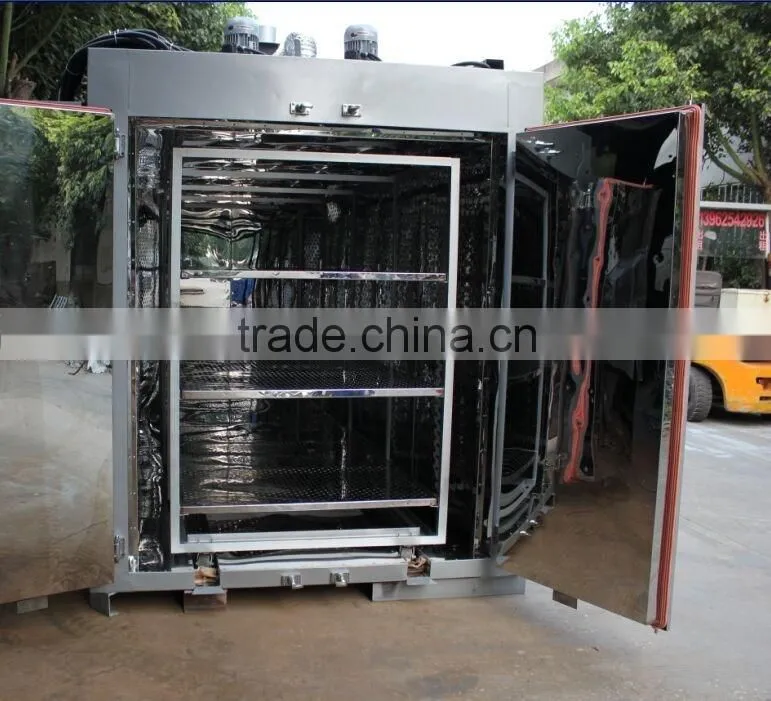

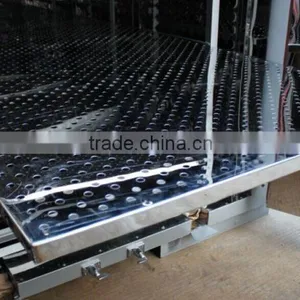

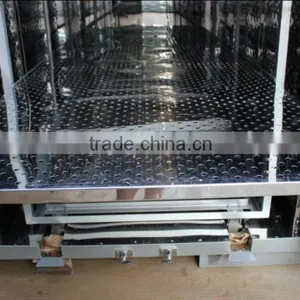

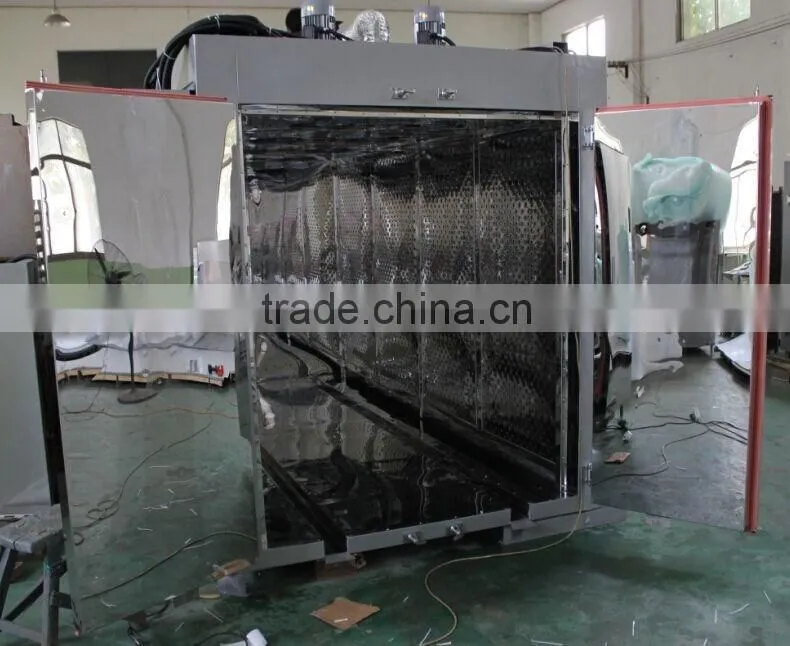

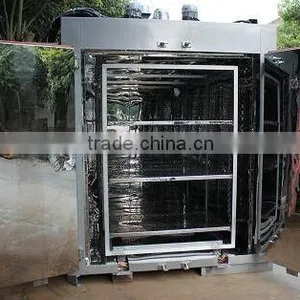

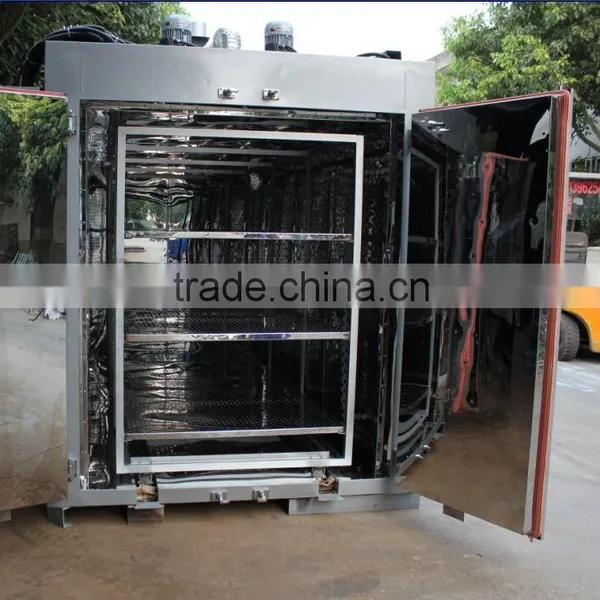

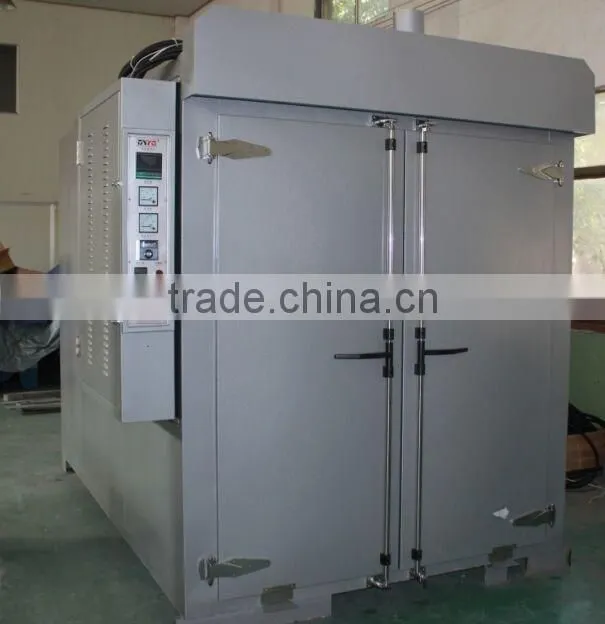

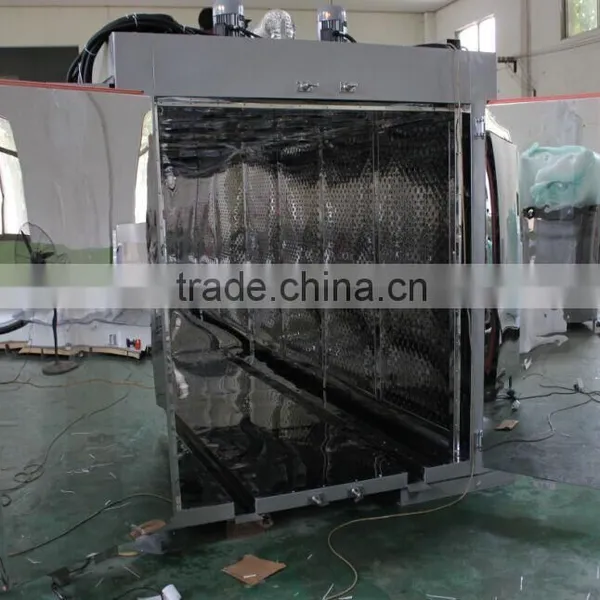

Pictures as follows:
If you are interesting our products, please kindly contact us as following informations:
