Specifications
Applicable to the sweeper, open a window, massage chair, sofa, etcSafe and reliable,Quality assuranced
1.Feature:
Input Voltage: 12/24/36VDC
Load Capacity: 1200N
Standard Stroke: 10/30/50/100/150/200/250/300 mm, special stroke are available according to customer‘s requirement.
Speed: 4-30mm/s
Type Of Duty: 25%
Operation Temperature: -26°C (-14.8F) to +65°C (149F)
Standard protection class: IP 65
Limit Switches: Inner
Min. Install Dimension: S+110mm (Option)
Availability in Black and White housing
2.Size

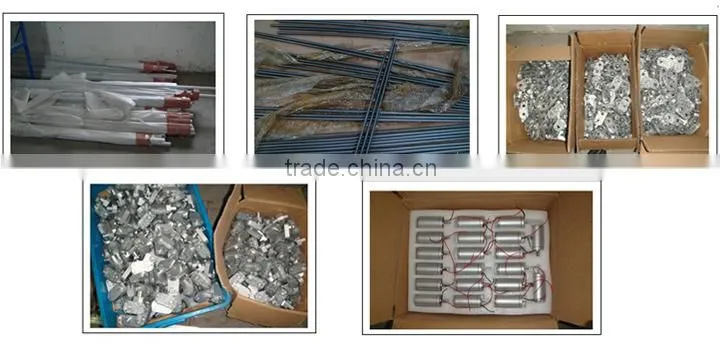

3.Main accessories
4.Testing equipments

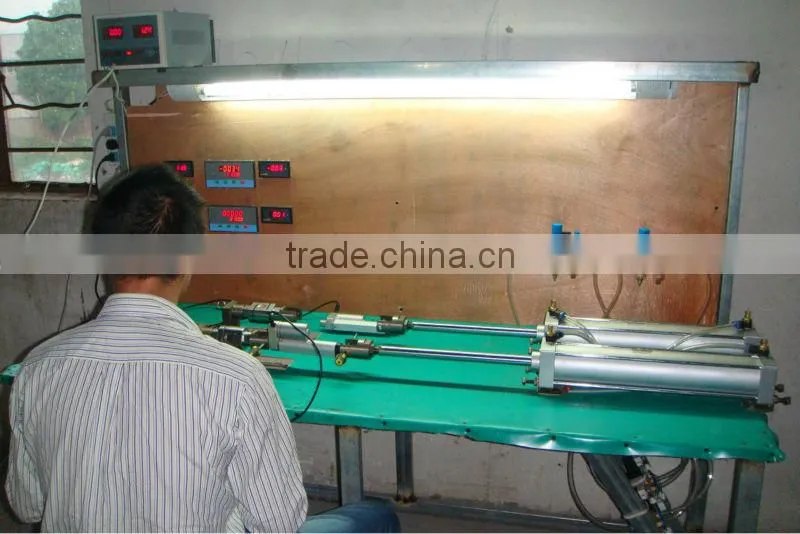

Working testing equipment to ensure every product can work normally before out of factory,our products are 100% been tested.

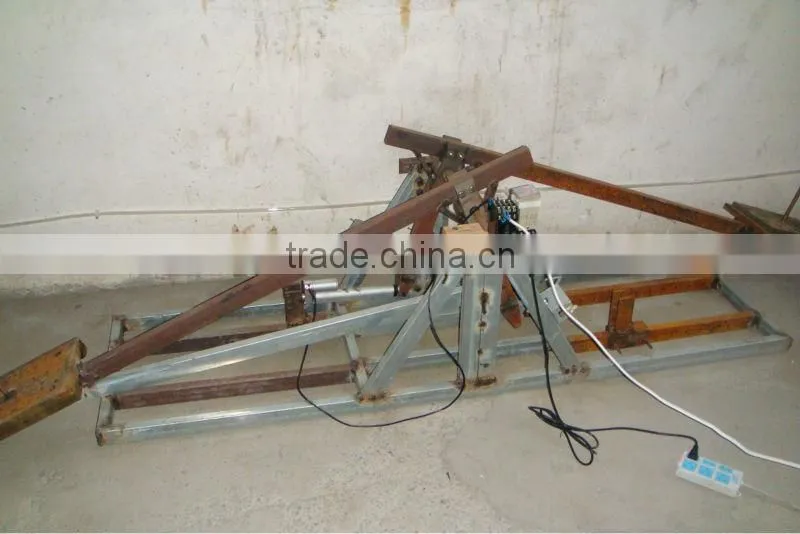

Working life testing machine
We test the working life of our products,all of them can work more than 10000 times.
5. Our advantage

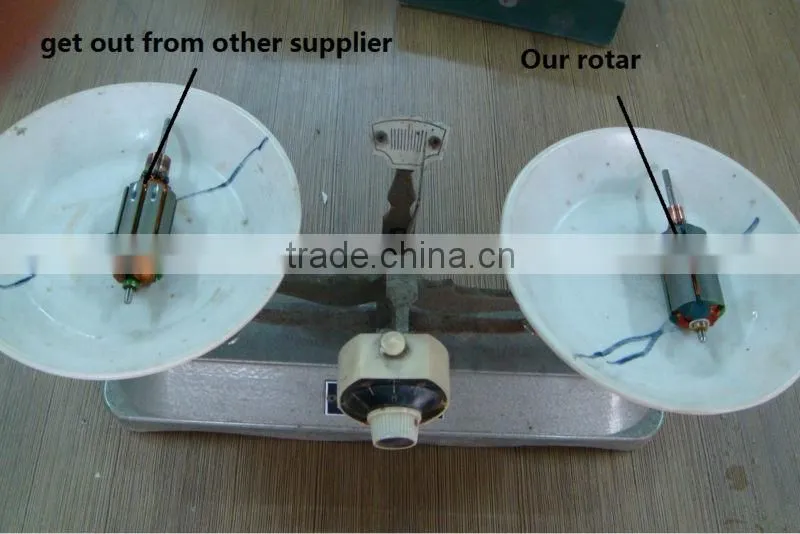

Our rotar have more varnished wire, can output large power and the working life will be longger,see following photo,our rotor is heavier than normal.

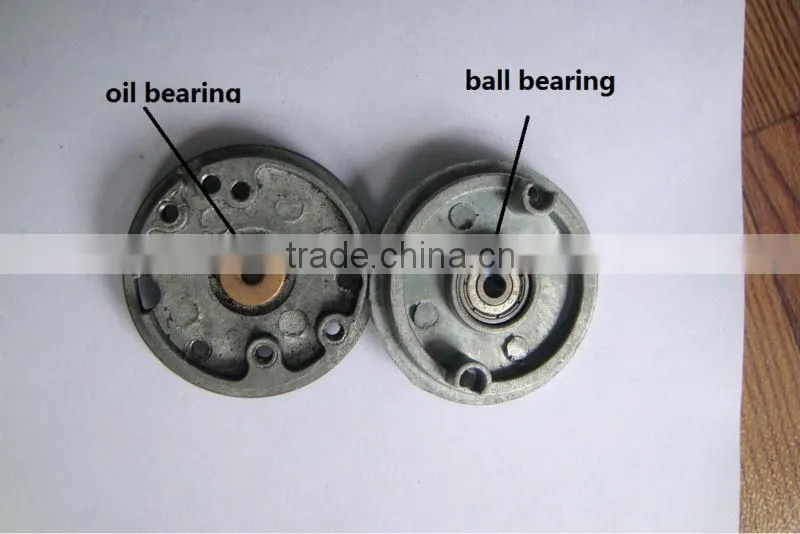

We use ball bearing instead of oil bearing,can make sure long working life,see following picture:
Our Aluminum materials are all been oxidized ,can keep shine and clear longger time

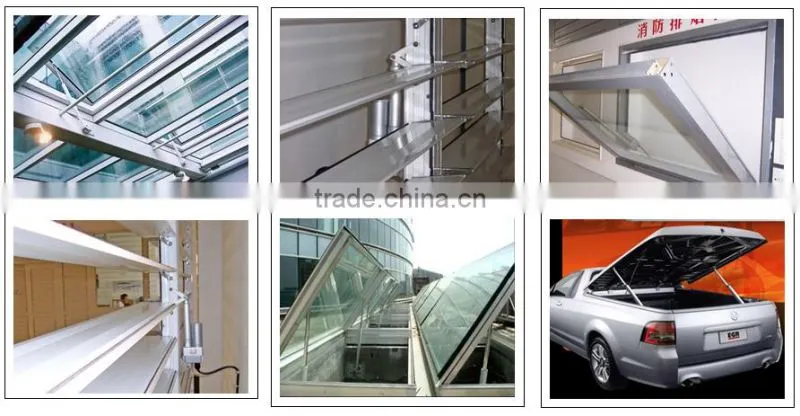

6. Applications
7. Packing

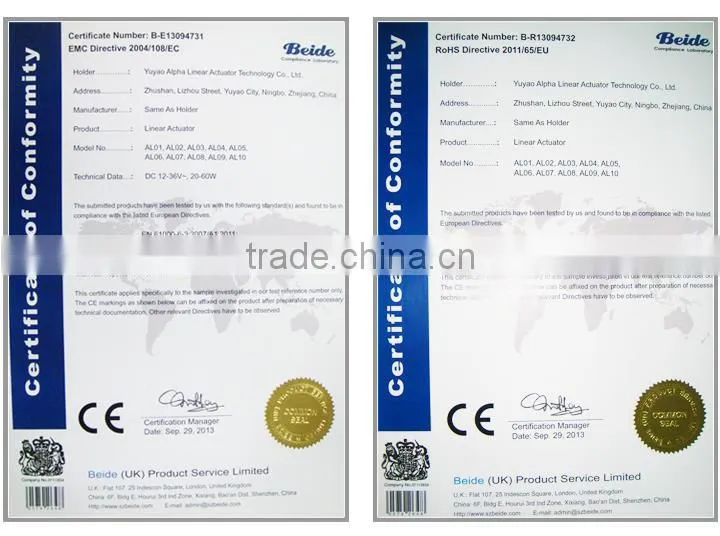

8. Certificates
9. We offer 2 years quality guarantee,can design the size and the function for you.Welcome to visit our factory.
