Home > Electrical & Electronics > Electric Motor > DC Motor > High Load Wireless Remote Control Linear Actuator

High Load Wireless Remote Control Linear Actuator

Name: High Load Wireless Remote Control Linear Actuator
Brand: ALPHA
SKU: 115256095

High Load Wireless Remote Control Linear Actuator thumbnail-1

High Load Wireless Remote Control Linear Actuator photo-1

US$ 25.8 - 34.5 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

ALPHA

Model Number:

AL01

Contact Supplier Request Quote Chat Now

Yuyao Alpha Linear Actuator Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name ALPHA

Model Number AL01

Usage Other, sweeper/window/sofa/etc

Certification CE, ROHS

Type Other, Permanent magnet dc motor

Construction Permanent Magnet

Commutation Brushless

Speed(RPM) 4-30mm/s

Voltage(V) 12/24V

Specifications

Applicable to the sweeper, open a window, massage chair, sofa, etc
Safe and reliable,Quality assuranced

1.Feature:

Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive

Standard Stroke: 100/150/200/250/300/350/400 mm, special stroke are available according to customers' requirement.

Max. Thrust: 2000N, 4000N, 6000N

Free Load Speed: 5mm/s~13mm/s

Rated Load Speed: 5mm/s

Duty cycle: 10%

Ambient temperature -25°C (-13F) to +65°C (149F)

Standard protection class :IP 44

Built-in integral limit switch, not adjustable after leaving factory

Low noise design, dB<53(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.

CE Certificated

Standard Stroke(mm)		50	100	150	200	300	350	400
Minimum install Size(mm)	2000N	225	275	325	375	473	525	575
	4000N	225	275	325	375	473	525	575
	6000N	225	275	325	375	473	525	575

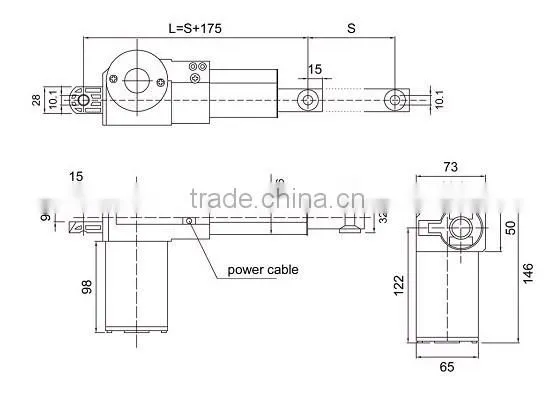

2.Size

3.Main accessories

4.Testing equipments

Working testing equipment to ensure every product can work normally before out of factory,our products are 100% been tested.

Working life testing machine

We test the working life of our products,all of them can work more than 10000 times.

5. Our advantage

Our rotar have more varnished wire, can output large power and the working life will be longger,see following photo,our rotor is heavier than normal.

We use ball bearing instead of oil bearing,can make sure long working life,see following picture:

Our Aluminum materials are all been oxidized ,can keep shine and clear longger time

6. Applications

7. Packing

8. Certificates

9. We offer 2 years quality guarantee,can design the size and the function for you.Welcome to visit our factory.
