Home > Electrical & Electronics > Electric Motor > DC Motor > 12v Linear Actuator Waterproof

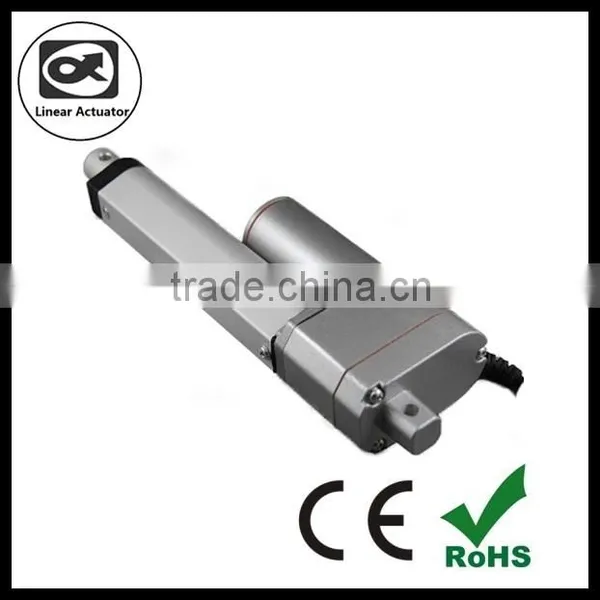

12v Linear Actuator Waterproof

Name: 12v Linear Actuator Waterproof
Brand: ALPHA
SKU: 115255709
Availability: InStock

12v Linear Actuator Waterproof thumbnail-1

US$ 20.8 - 22.8 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

ALPHA

Model Number:

AL03

Contact Supplier Request Quote Chat Now

Yuyao Alpha Linear Actuator Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name ALPHA

Model Number AL03

Usage Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, window opener,TV Lift,Door open

Certification CE, ROHS

Type Gear Motor

Construction Permanent Magnet

Commutation Brush

Protect Feature Waterproof

Speed(RPM) 4000r/min

Continuous Current(A) 1.5A

Output Power 50W

Voltage(V) 12V/24VDC

Efficiency IE 1

Specifications

1.High Quality .
2.Small Dimensions .
3.Long Warranty Time .
4.High Waterproof .
5.Can be Working for different fields .

1.Feature:

Input Voltage: 12/24/36VDC
Load Capacity: 1200N
Standard Stroke: 10/30/50/100/150/200/250/300 mm, special stroke are available according to customer‘s requirement.
Speed: 4-30mm/s
Type Of Duty: 25%

Operation Temperature: -26°C (-14.8F) to +65°C (149F)
Standard protection class: IP 48
Limit Switches: Inner
Min. Install Dimension: S+110mm (Option)
Availability in Black and White housing

2.Size

3.Main accessories

4.Testing equipments

Working testing equipment to ensure every product can work normally before out of factory,our products are 100% been tested.

Working life testing machine

We test the working life of our products,all of them can work more than 10000 times.

5. Our advantage

Our rotar have more varnished wire, can output large power and the working life will be longger,see following photo,our rotor is heavier than normal.

We use ball bearing instead of oil bearing,can make sure long working life,see following picture:

Our Aluminum materials are all been oxidized ,can keep shine and clear longger time

6. Applications

7. Packing

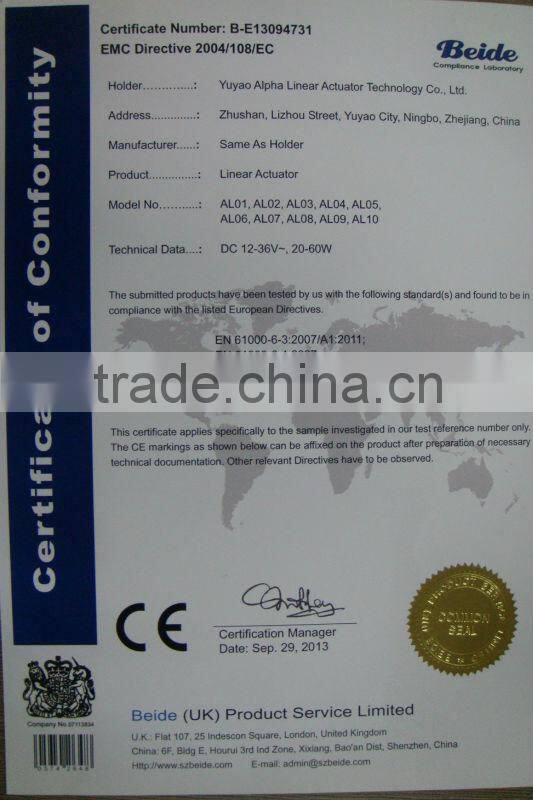

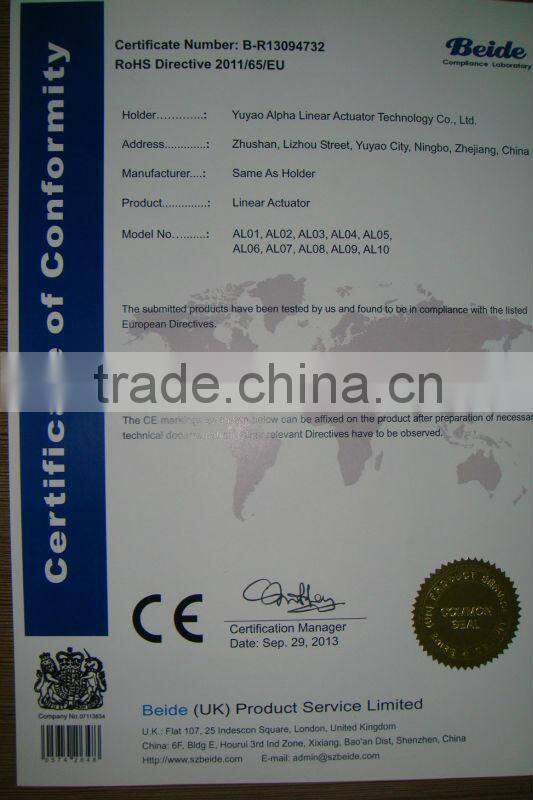

8. Certificates

9. We offer 2 years quality guarantee,can design the size and the function for you.Welcome to visit our factory.
