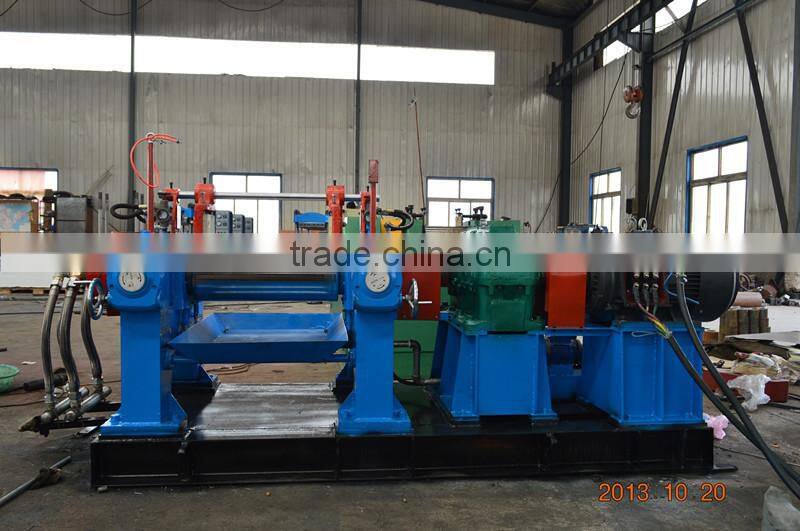

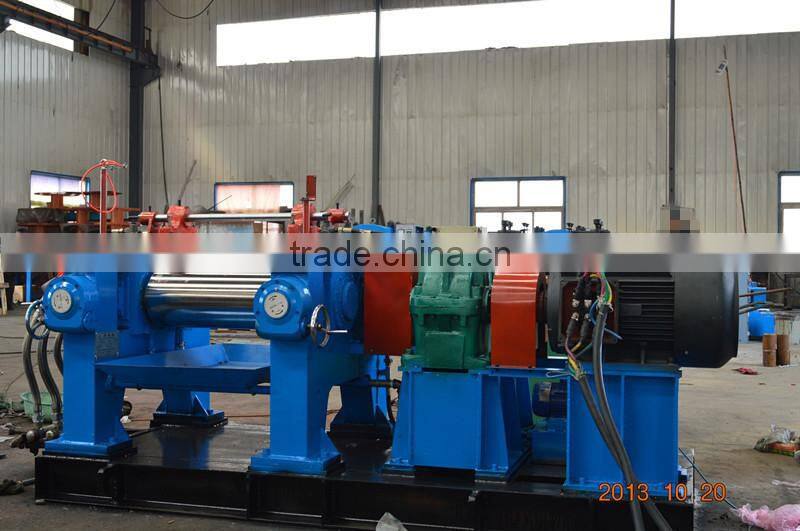

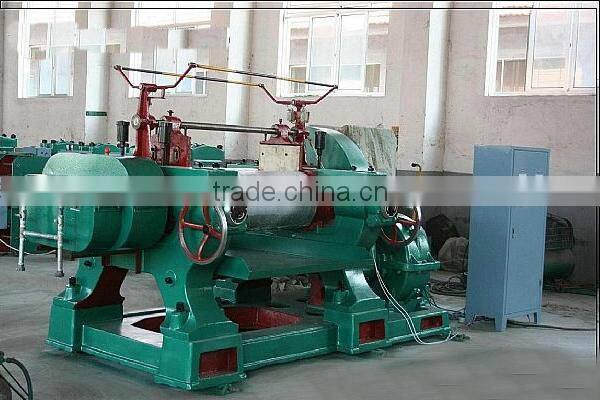

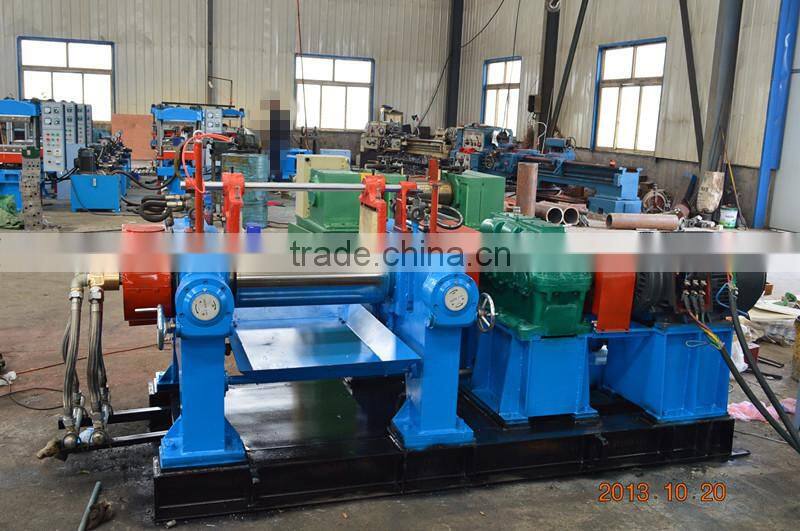

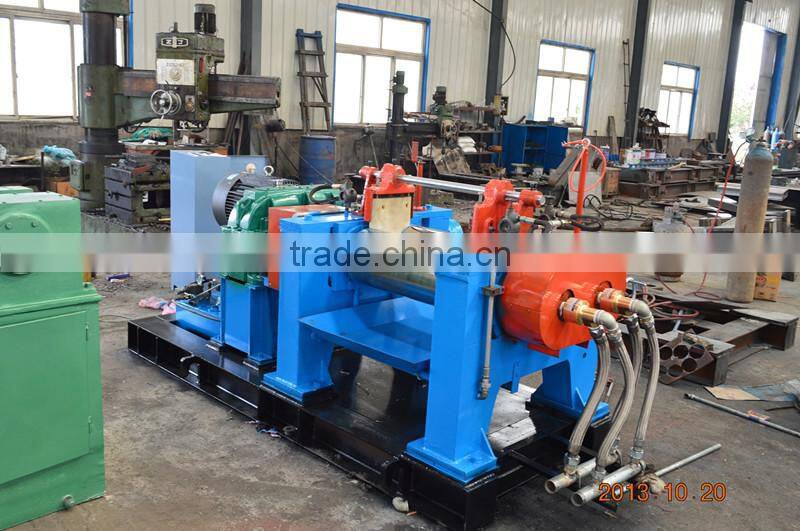

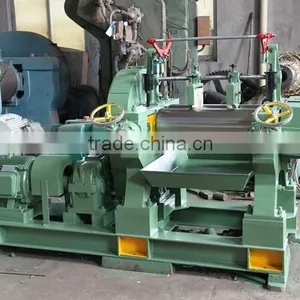

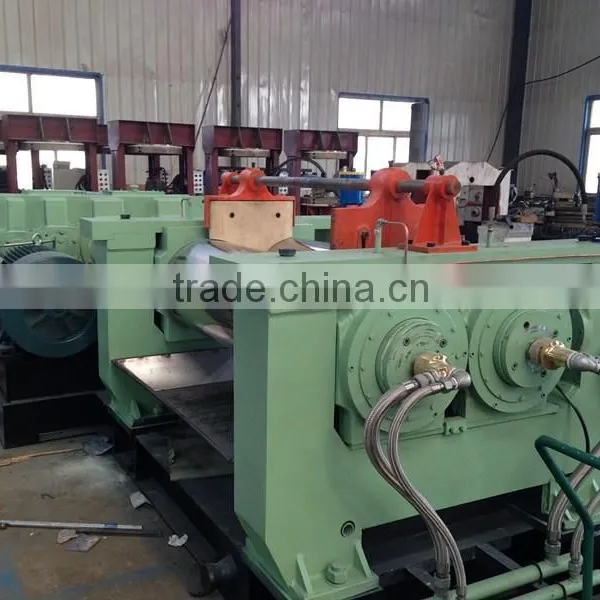

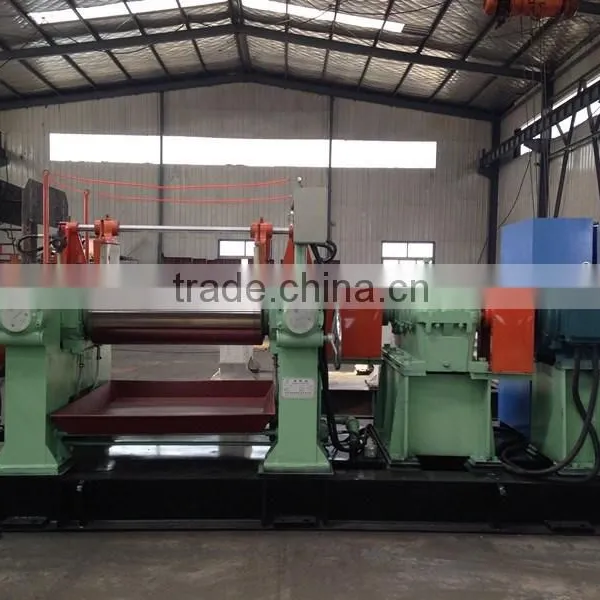

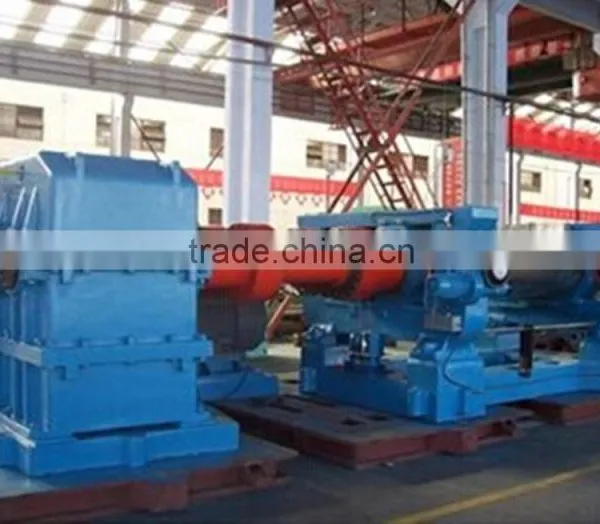

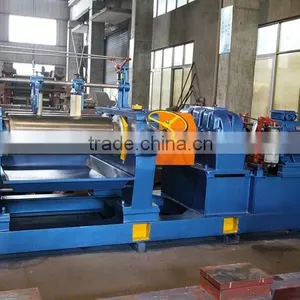

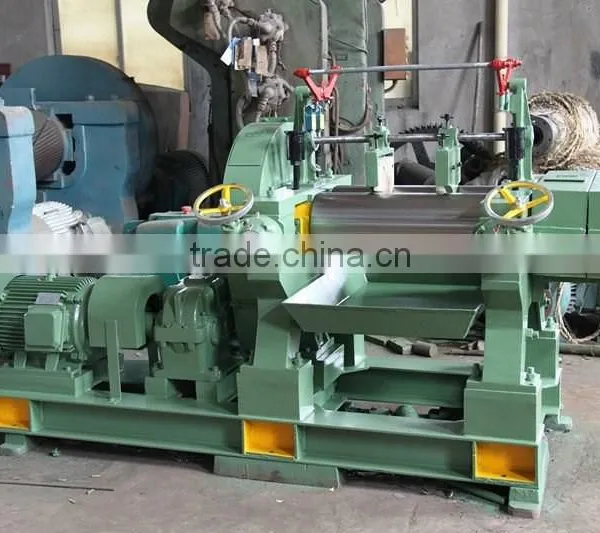

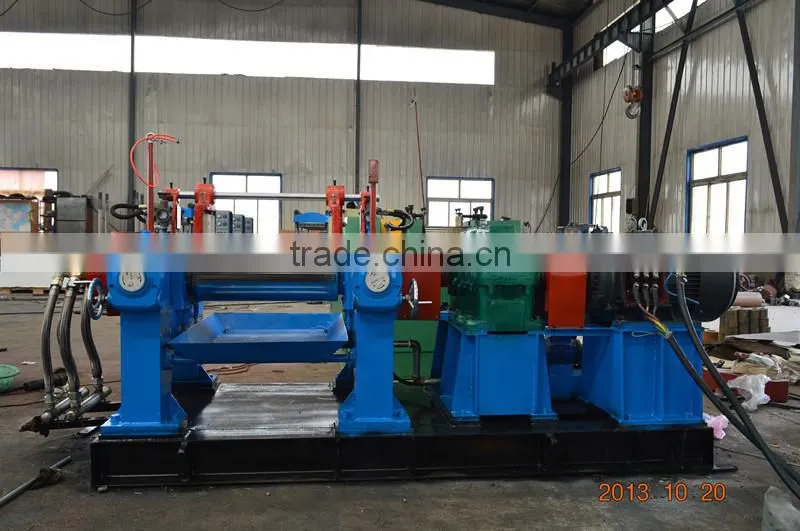

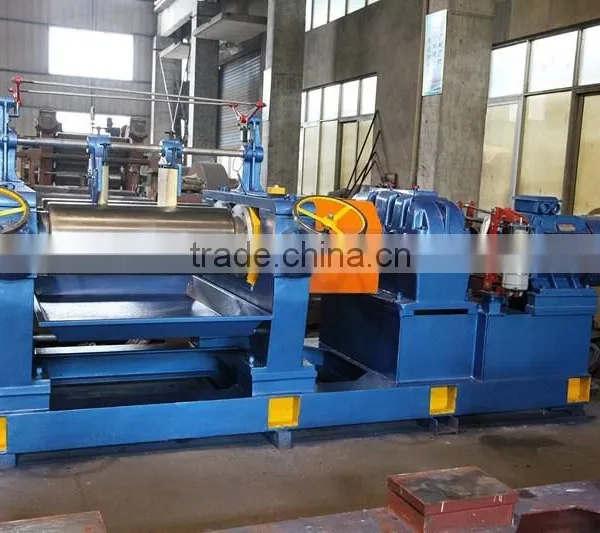

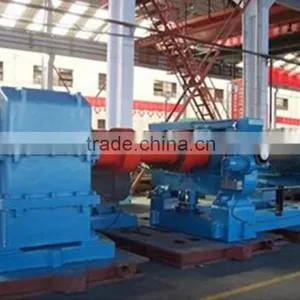

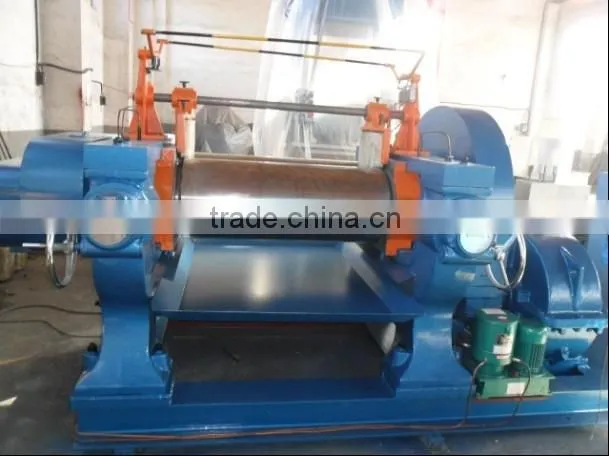

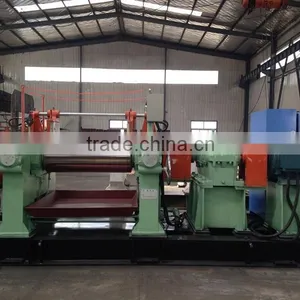

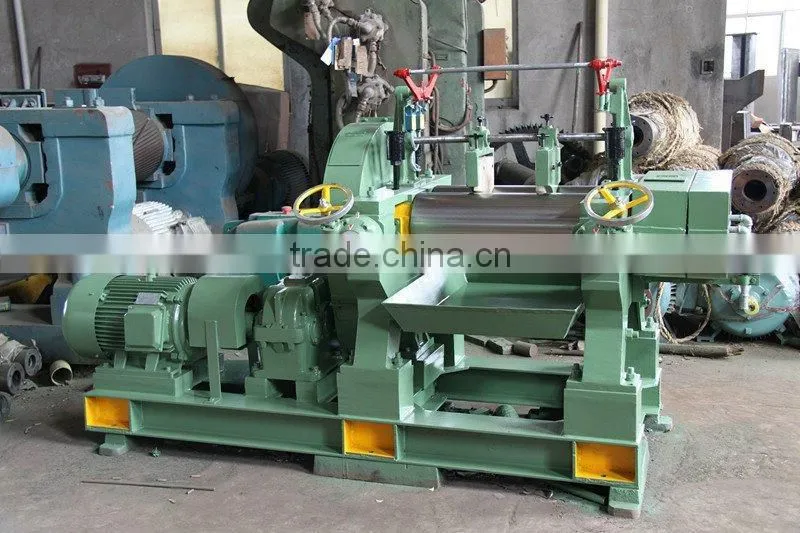

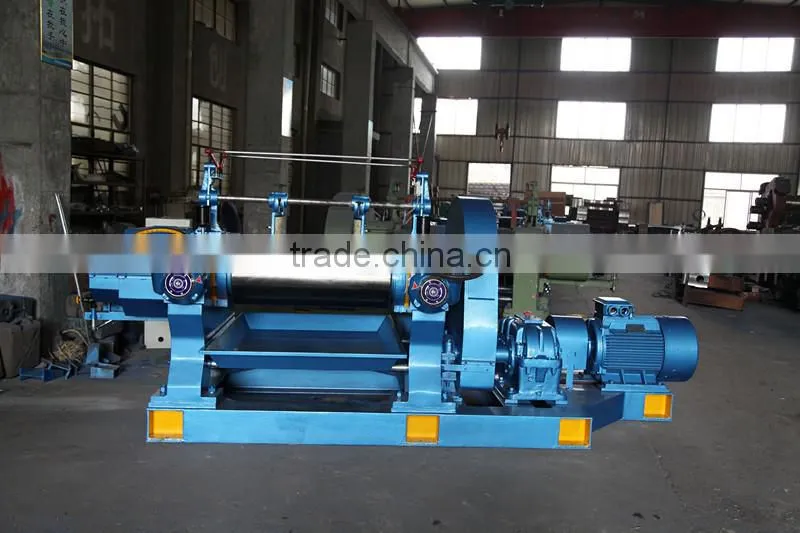

rubber mixing mill/two roll mill

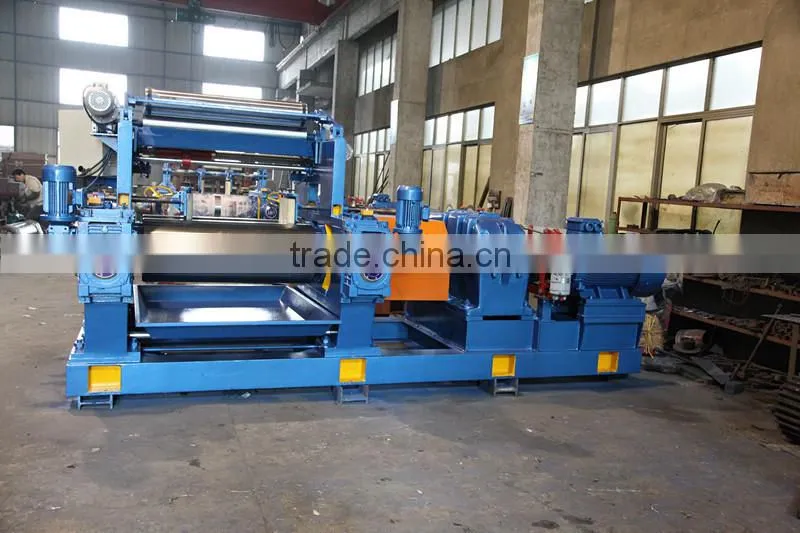

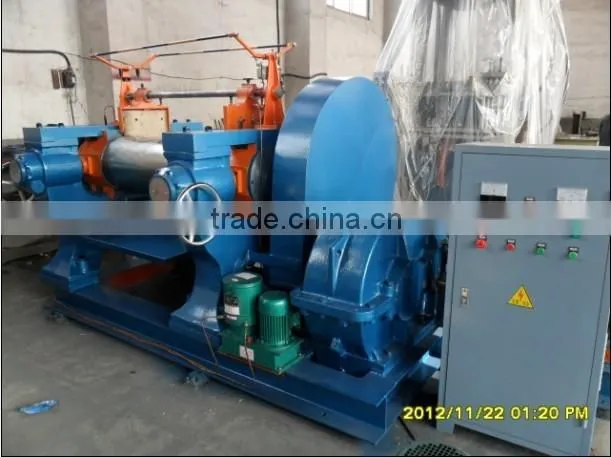

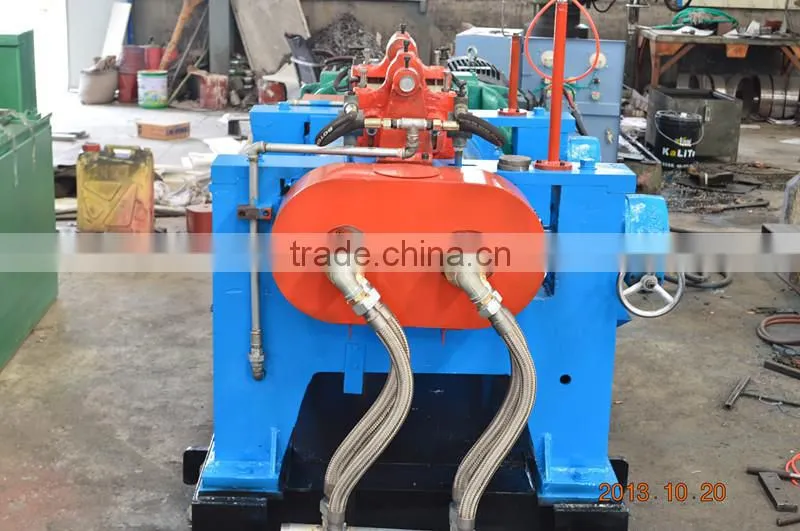

two roll milling mill

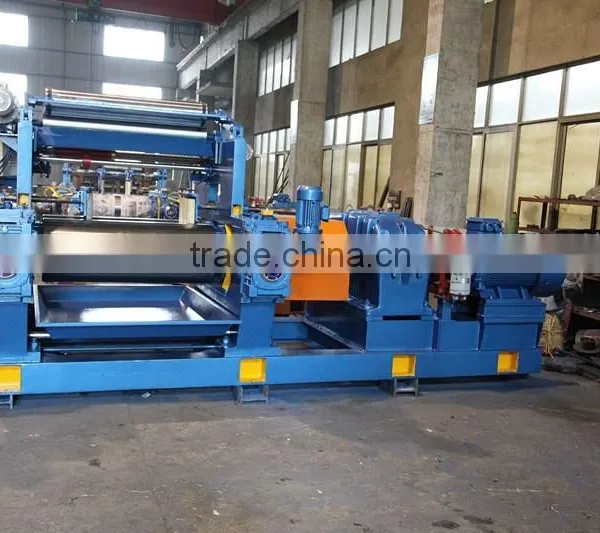

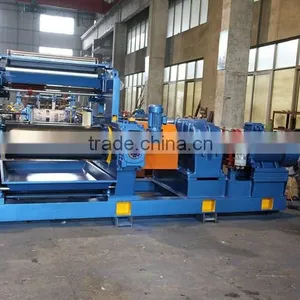

two roll mill with stock blender
Usage:
It is mainly used for plasticating , mixing and sheeting of plastic and rubber. And specially suitable for the sheeting of down-steam equipment of large-scale internal mixer unit, and warming, refining and feeding of the rubber materials required by three or four rolls calender.
Features:
1 The rolls are made of chilled alloy cast iron with wear-resistant hard surface, The roll is bored or drilled to make the temperature of the roll surface well-proportioned.
2 Overload protection device is provided to protect the main parts from damage due to overload.
3 the machine have emergency braking system . In case of emergency, the safety rod is pulled down and the rolls will be stopped immediately.
4 The machine can be equipped with manual adjustment or motorized gap adjusted device to easily adjust the roll spacing.
5 the rolls is adopted double row spherical roll bearings to suppor, it can be maintained easily and have long service life.
6.the transmission system adopts 4 stages cylindrical gearbox and full hard teeth surface, and frontand rear rolls are connected througth a pair of cross universal-joint couplings,which has compact structure, low noise and high efficiency.
7.The bed-plate of the machine have split type base, it is easy to be installed.
8. the stock blender can be installed according to customer's requirement.
Technical parameters:
Technical parameter type |
XK-160 |
XK-230 |
XK-250 |
XK-400 |
XK-450 |
XK-560 |
XK-550B |
XK-660 |
working diameter of rolls(mm) |
160 |
230 |
250 |
400 |
450 |
560/510 |
550 |
660 |
working length of rolls(mm) |
320 |
600 |
620 |
1000 |
1200 |
1530 |
1500 |
2130 |
front roll surface speed(m/min) |
8.95 |
10.21 |
14.1 |
18.65 |
24.26 |
27.72 |
27.94 |
28.6 |
friction ratio |
1:1.35 |
1:1.19 |
1:1.17 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.22 |
1:1.24 |
max.nip(mm) |
4.5 |
7 |
8 |
10 |
15 |
15 |
15 |
15 |
capacity per.batch(kg) |
1~2 |
6~10 |
8~15 |
18~35 |
25~50 |
35~50 |
50~60 |
165 |
motor power(kw) |
5.5 |
15 |
18.5 |
37 |
55 |
90 |
110 |
245 |
overall dimension:LxWxH(mm) |
1380x860x1320 |
2800x1200x1120 |
3400x1500x1800 |
4350x1850x1785 |
5200x2380x1840 |
5845x2284x1978 |
5870x2475x2045 |
7465x3662x2080 |
weight(kg) |
1280 |
2500 |
3500 |
7600 |
14000 |
23000 |
27000 |
49000 |
If you are interested in our more products, please check our website:
https://img13.fr-trading.com
Thank you
