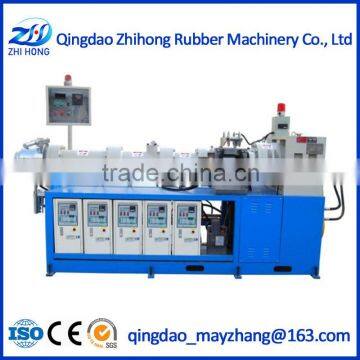

XJP-65 Pin Barrel Cold Feed Rubber Extruder
Equipment composition
ld feeding silicone rubber extruder
2.single extruder head
3.super high temperature tunnel
4.hot air vulcanizing tunnel
5.water cooling channel
6.traction machine
7.wind-up machine
Cold feed rubber extruder machine includs the PIN-TYPE cold feeding rubber extruder machine and common cold feeding rubber extruder macine. Cold feed rubber extruder machine is widely used in the rubber product like rubber profiles, rubber tubes, tubber tyres and rubber sealings production.
The PIN-TYPE Cold feed Rubber Extruder Machine Applications: extrusion of tread,side wall,inner tube of the tyre. the rubber pipe extrusion,rubber sheet extrusion, rubber sealings etc.
The Common Cold feed Rubber Extruder Machine Applications: car tubes extrusion, rubber sealing strips, rubber window&door sealing profiles, rubber rings etc.extrusion.
| Model | XP90×14D | |
| General Specifications | Outlet Direction | Right in and left out facing the device |
| Screw Diameter | 90mm | |
| Screw Speed (r/min) | 0 to 55 | |
| L/D | 14:1 | |
| Capacity(kg) | 320kg/h | |
| Central Height Of Extruder | 1050mm±20mm | |
| Feeding Mode | Active feeding with side roller | |
| External Dimensions | External dimensions 3200(L) ×1200(W) ×1620(H)MM | |
| Weight | 3800Kg |
|
diameter(mm) |
L/D ratio |
The maximum speed of screw(r/min) |
|
Maximum productive capacity(kg/h) |
Net Weight (KG) |
XJP-45 |
¢45 |
12:1 |
70 |
7.5 |
50 |
500 |
XJP-65 |
¢65 |
12:1 |
65 |
37 |
120 |
1200 |
XJP-75 |
¢75 |
12:1 |
60 |
37 |
120 |
1700 |
XJP-90 |
¢90 |
14:1 |
55 |
55 |
320 |
3800 |
XJP-120 |
¢120 |
20:1 |
50 |
110 |
600 |
5200 |
XJP-150 |
¢150 |
20:1 |
45 |
135 |
720 |
6500 |
