Home > Products > 3G/WCDMA/CDMA Antennas > Professional Manufacturer 1920-2170MHz High Gain 9dbi Antenna External GSM Antenna 3G Antenna With SMA Connector

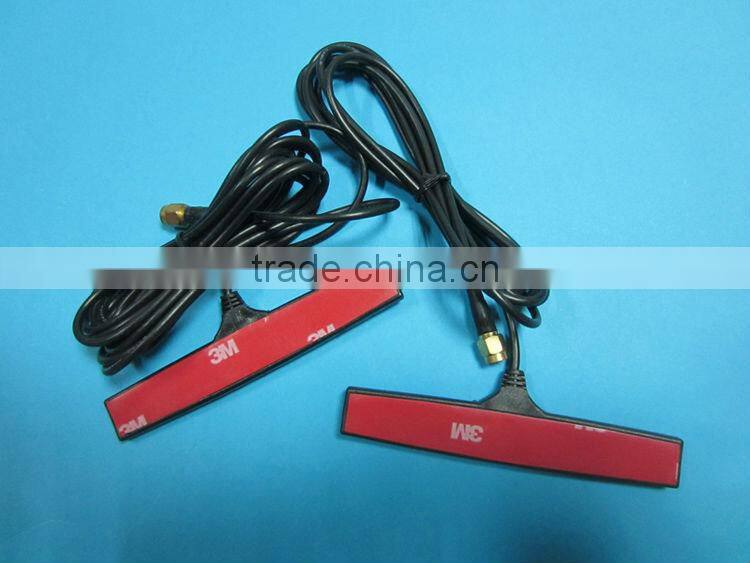

Professional Manufacturer 1920-2170MHz High Gain 9dbi Antenna External GSM Antenna 3G Antenna With SMA Connector
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory Supplier 3G 1920-2170MHz 3m Cable GSM Antenna High Gain GSM Internet Antenna
-
Made In China 8dBi 1920-2170MHz Car Long Range Antenna Omni Directional Indoor Patch Antenna With RG174
-
Shenzhen Supply 7dBi 1920-2170MHz 3G GSM External Antenna Amplified Car Patch Antenna
-
High Power 1920-2170MHz 9dBi Patch Antenna Omni Directional High Gain 5.8GHz Patch Antenna With SMA
-
Professional Manufacturer 1920-2170MHz 9 DBi Antenna For Huawei Long Range 3G Rubber Antenna
-
Signal Strength 850-1900MHz Indoor Rubber Antenna Omni 1.2G Rubber Duck Antenna With Right Angel SMA
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yetnorson | |
| Model Number | YXN-0235- External GSM Antenna 3G Antenna |
One product with one PE bag package of External GSM Antenna 3G Antenna
Product Description
Specifications
External GSM Antenna 3G Antenna1) High Gain 9dBi
2) Frequence1920-2170MHz
3) Factory price
4) CE,RoHs,ISO
| Electrical Specifications of External GSM Antenna 3G Antenna | |
| Frequency Range (MHz) | 1920-2170MHz |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤1.2 |
| Gain (dBi) | 9dBi |
| F/B Ratio | ≥15dB |
| Horizontal Beam width | 60°-90° |
| Vertical Beam width | 70°-70° |
| Polarization Type | Vertical |
| Power Capacity (w) | 100 |
| Mechanical Specifications | |
| Antenna Dimension | 210mm*180mm*45mm |
| Connector | SMA |
| Weight | 0.6kg |
| Mounting Mast Diameter | Ø30~Ø50mm |
| Rated Wind Velocity | 210Km/h |
| Operating Temperature | -40°C to+80°C |
| Radome Material | UV protected ABS |
| Radome Colour | black |
| Storage Temperature | -65°C to+85°C |
Welcome come to our website select your satisfied products ,if you have any question about our products pls feel free contact us we are always be ready anytime!!!
Company Profile
Shenzhen Yetnorson Technology Co.,Ltd is one of professional antenna maker, which focus on GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field. We offer antennas with good quality and good price. And we are cooperating with several overseas clients from all over the world. Please support us. Thank you very much!
