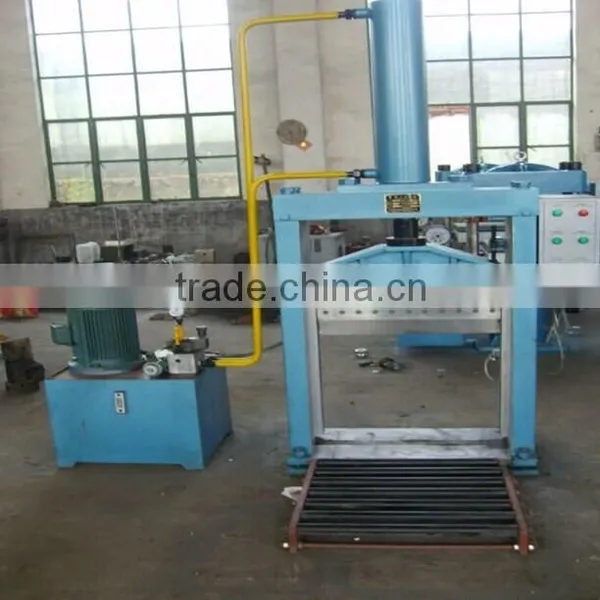

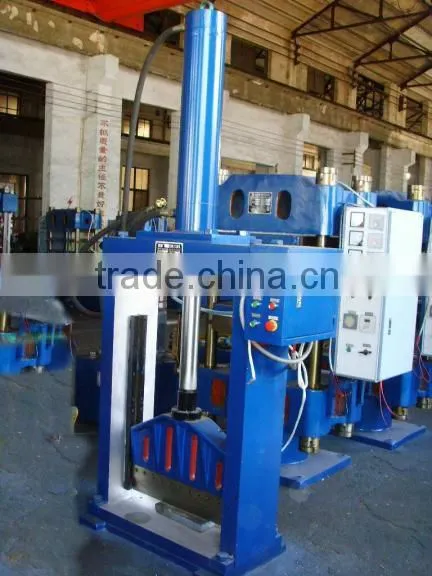

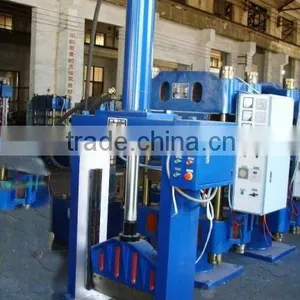

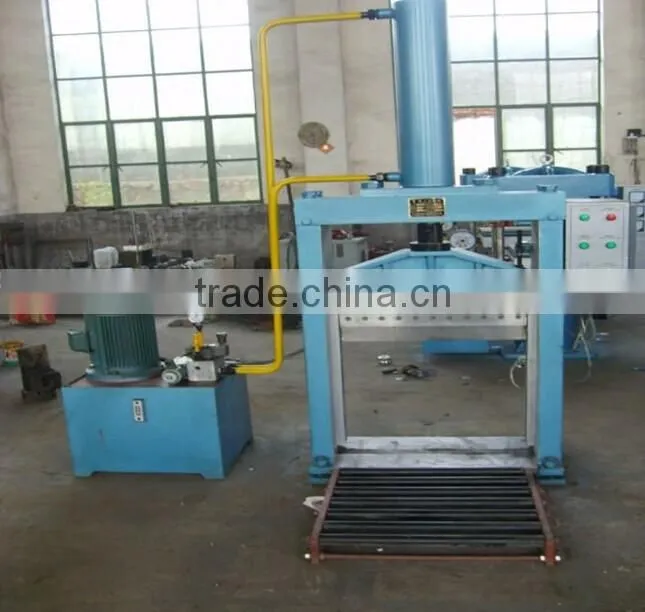

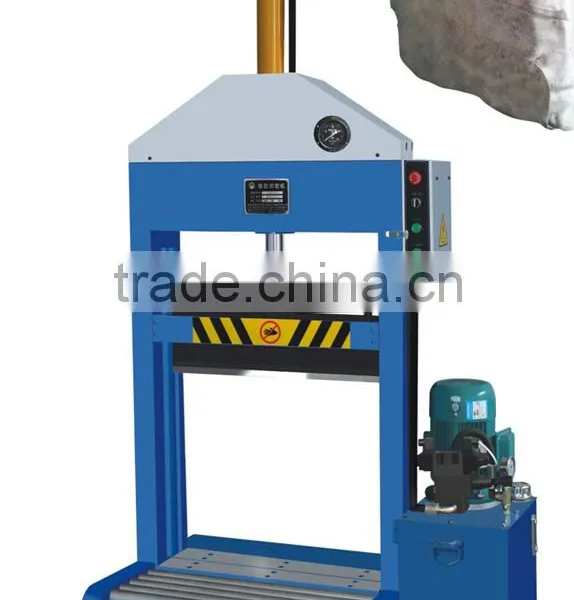

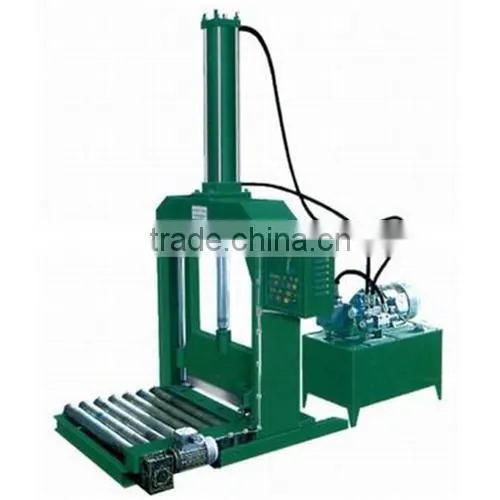

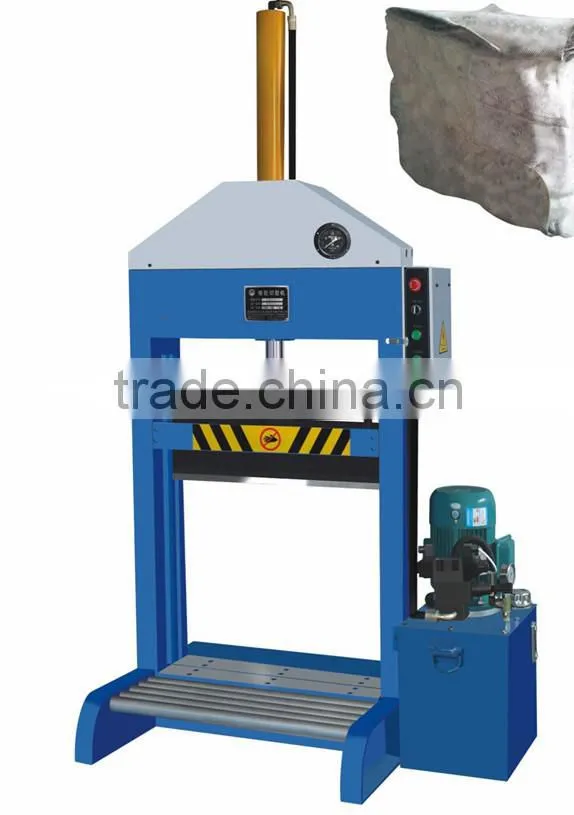

Hydraulic single blade rubber cutter/ blade cutter
Product description:
single blade rubber cutting machine used to splite the natural rubber and syntetic rubber into pieces rubber for plasticating.
This bale splitter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder
Technical parameters:
Model |
XQL-80 |
XQL-160 |
||
Width(mm) |
660 |
790 |
||
Stoke(mm) |
680 |
680 |
||
Rated cut-off force(KN) |
80 |
160 |
||
Diameter of hydro-cylinder(mm) |
150 |
200 |
||
Time Taken by the Stroke(S) |
10-16 |
10-16 |
||
Rated working oil pressure (Mpa) |
4.5 |
5.0 |
||
pumping flow |
63L/min |
63L/min |
||
Motor power (KW) |
5.5KW,960r/min |
5.5KW,960r/min |
||
Overall size(mm) |
1950*500*2300mm |
2150*550*2500 |
||
