Waste tire recycling cutting rubber crumb machine

Waste tire recycling cutting rubber crumb machine

uasge:

Waste tire cutter / Tire cutting machine is mainly used for cutting waste tire.

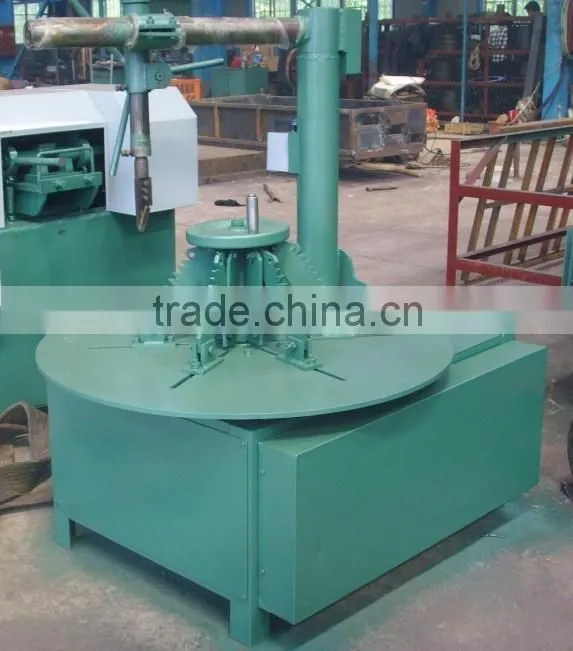

1).model QQJ-20 side wall cutter (cut out of the ring)

tire ring cutter machine is used to cut off the bead and steel wall with steel wires from waste tires.

Motor power is 5.5kw,

overall size is 1100x900x1700mm(LXWXH)

output is tire bead and sidewall , tread.

Capacity:45-60 tires/h, be equal to 1500-2250kg/h.

2).model QTJ-380 strip cutter (cutter tape)

strip cutting machine is used to cut the body of waste tire into strip type, so the strip can be feed to block cutter.

Motor power is 5.5kw

Overall size is 1290x870x1550

Input : the tire tread and side wall and output of QQJ-20 bead cutter.

Output is 3-5cm width rubber strip

Capacity is 15-20pcs tires per hours, be equal to 500-750kg tires per hour.

3). model QKJ-45 block cutter (cutter into pieces)

block cutting machine is used to cut the waste tire strip into block with 5cmx5cm size

Motor power:11kw

Overall size is 1130x830x1100mm(LXWXH)

Input is the rubber strips from the model QTJ-380 strip cutter.

Output is 30mmx30mm rubber blocks

Capacity is 30-40pcs waste tires per hours , be equal to 1000-1500kg waste tire per hour

4). model YQJ-285 steel wire separator (magnetic separator)

tire bead wire separator is used to separate the steel wires from the side wall of waste tires.

Motor power: 15kw

Overall size: 1520x1150x1210mm(lxwxh)

Input is bead rings from the QQJ-20 bead cutter.

Output is steel wires and tire rim scraps.

Capacity is 30-40pcs waste tires per hours, be equal to 1000-1500kg tire per hours.

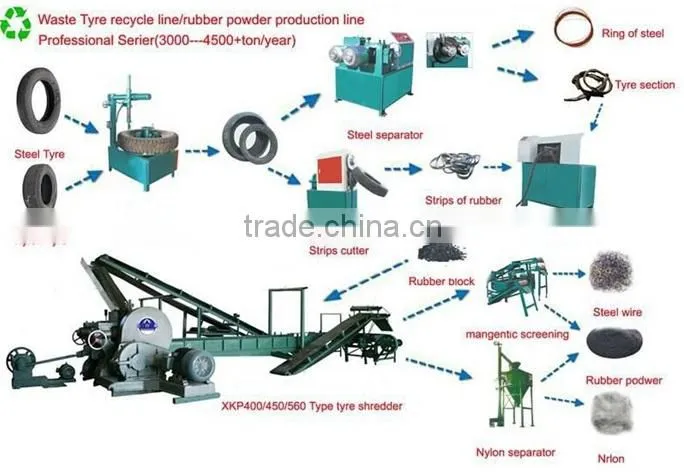

Processing of production line:
