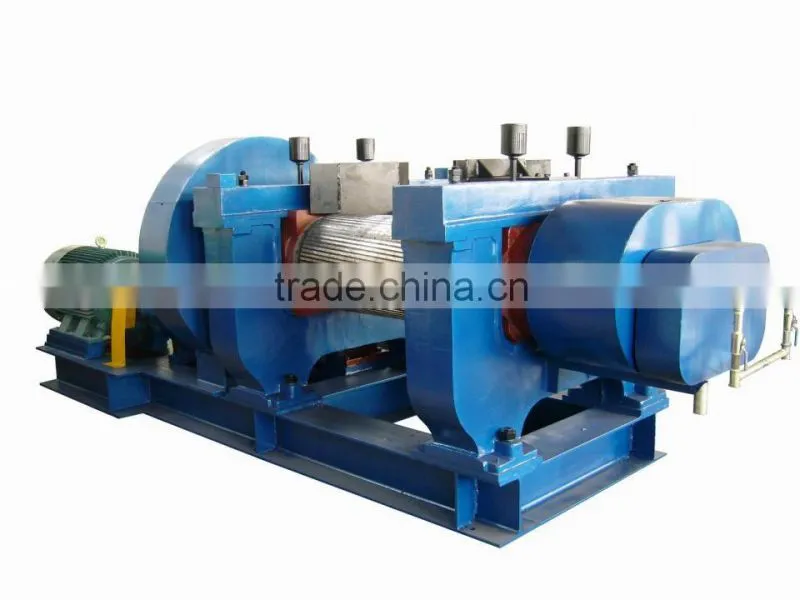

Help CenterTwo Roll Rubber Cracker Mill 22"
Related Products
-
Rubber Cracker Mill 18" RollerUS$ 10,000 - 100,000MOQ: 1 Set -
Rubber Crusher Mill 16" RollerUS$ 10,000 - 100,000MOQ: 1 Set
-
Chinese New Rubber Tyre Crusher Machine Rubber Grinding MachineUS$ 10,000 - 80,000MOQ: 1 Set
-
Made in China New Design Rubber Crusher/rubber Crusher For Rubber Raw Material Machinery/ High Tyre Rubber CrusherUS$ 10,000 - 80,000MOQ: 1 Set
-
Chinese New Best Price Rubber Crusher Rubber Devulcanizer Machine Waste Tire Recycling Machine,US$ 10,000 - 80,000MOQ: 1 Set

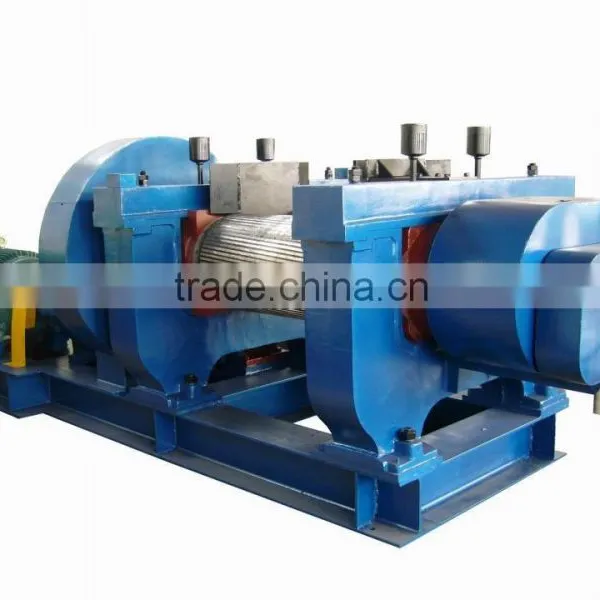

Rubber crusher/cracker mill
Usage:
The cracker mill is mainly used to grinding waste rubber, tire, tube, flap and break the raw rubber materials.
Features:
1. The rolls are made of chilled cast iron, the surface is hard and wearable, the internal processing can make the temp. Of the roll surface well-proprotioned.
2. The machine has overload protection device. And the major components cannot be damaged because of overloading.
3. The machine is equpped with emergency braking device. When an emergent accident happens, draw the pull rod, and then the machine will stop at once. It is safe and reliable.
Technical parameters:
Type |
XKP-400 |
XKP-450 |
XKP-560 |
Front roll diameter (mm) |
400 |
450 |
560 |
Rear roll diameter (mm) |
400(groove roller) |
450(groove roller) |
510(groove roller) |
Working length of rolls (mm) |
600 |
650 |
800 |
Front roll surface speed (m/min) |
17.32 |
23.2 |
25.56 |
Friction ratio |
1:1.38 |
1:1.38 |
1:1.30 |
Max.nip (mm) |
8 |
8 |
15 |
Production capacity(kg/h) |
200-300 |
600-800 |
-1500 |
Motor power (kw) |
45 |
55 |
75 |
Overall dimension (mm) |
3950*1800*1780 |
4770*1846*1835 |
5064*2284*1978 |
Weight (kg) |
7000 |
12000 |
19000 |
