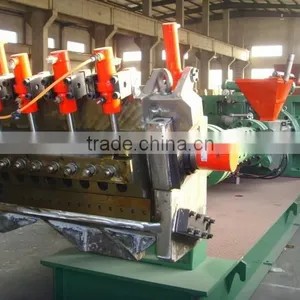

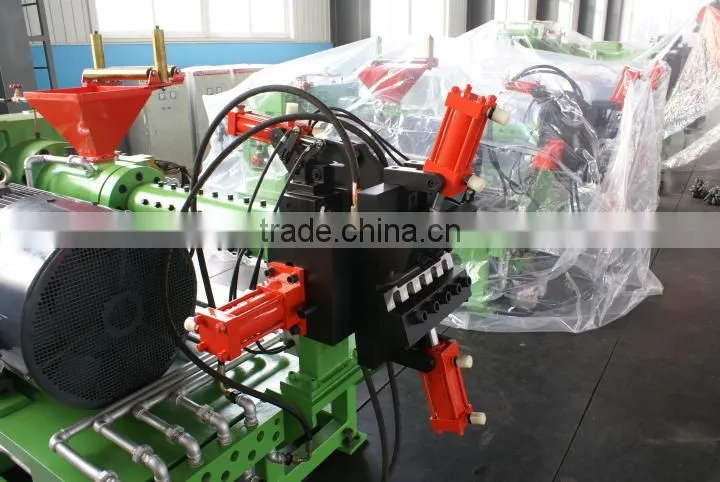

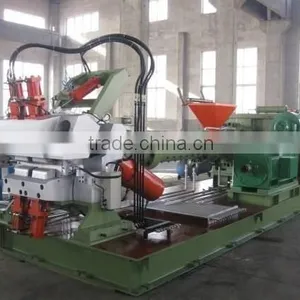

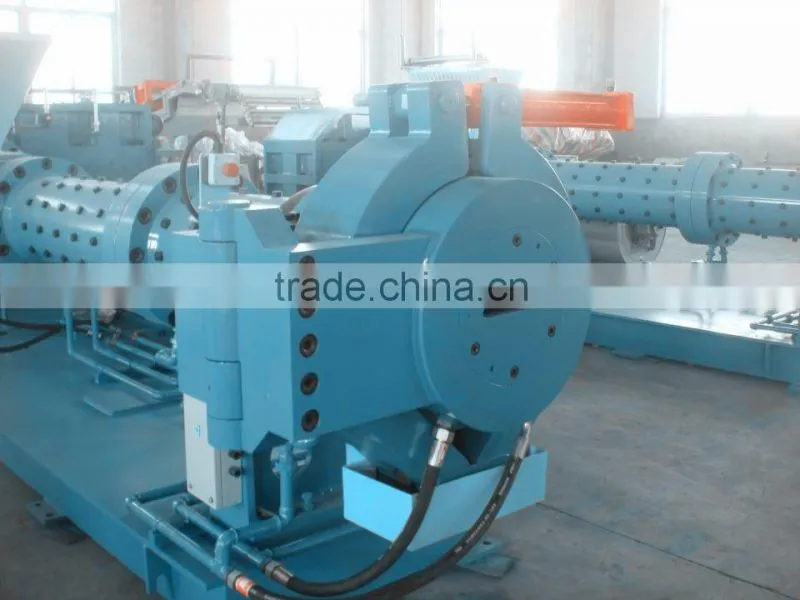

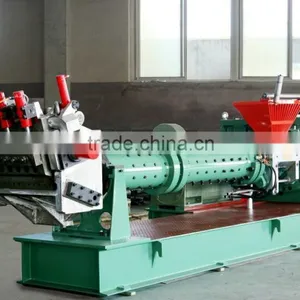

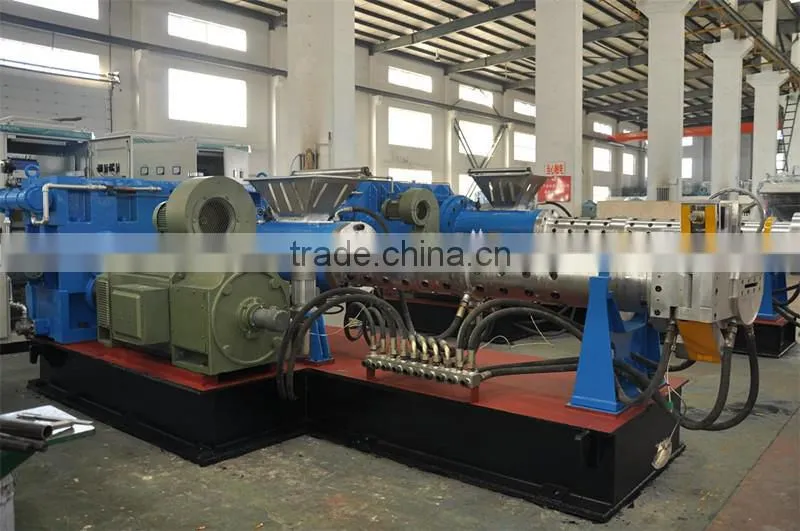

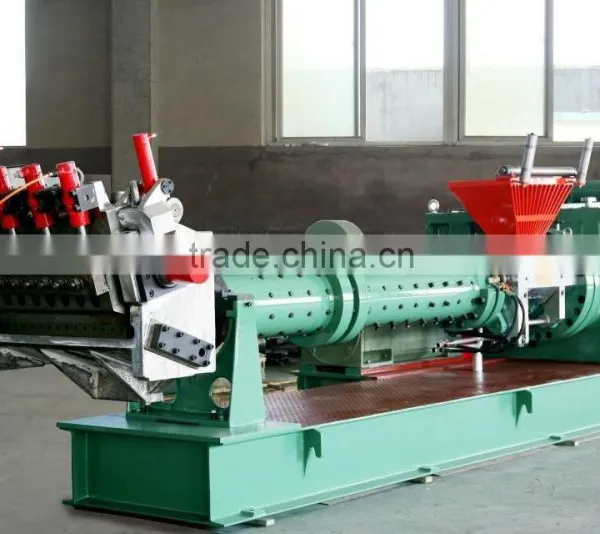

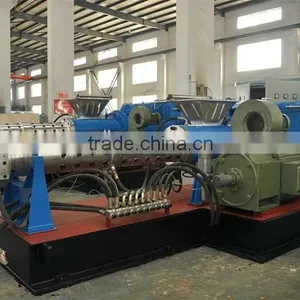

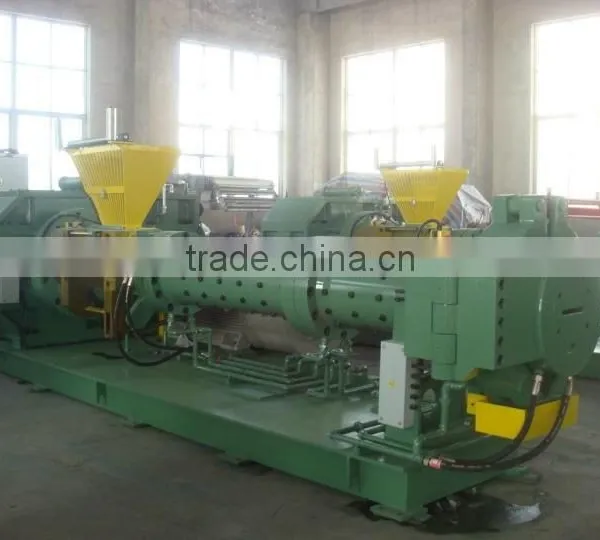

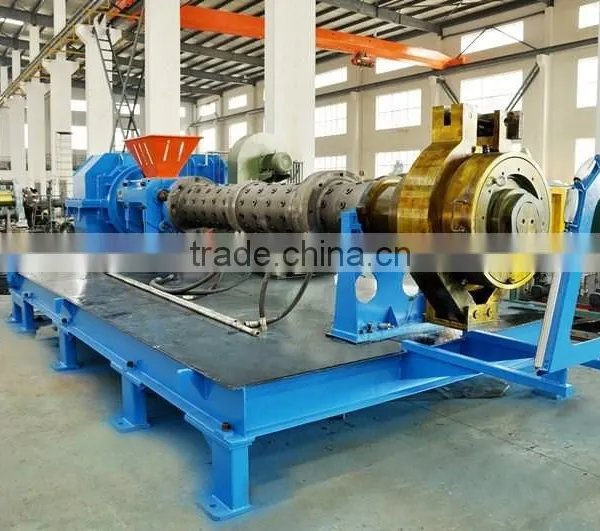

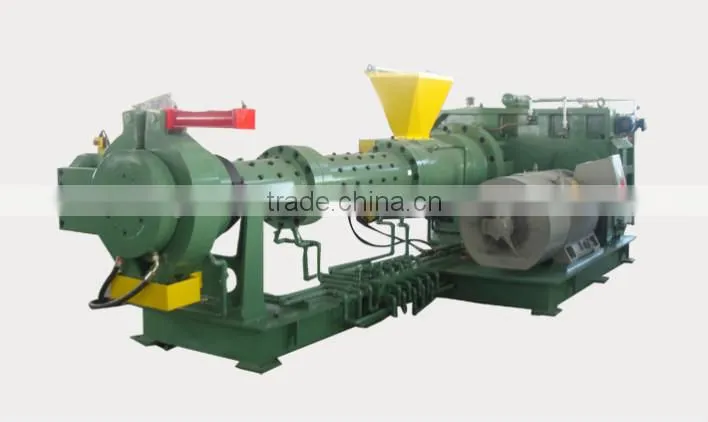

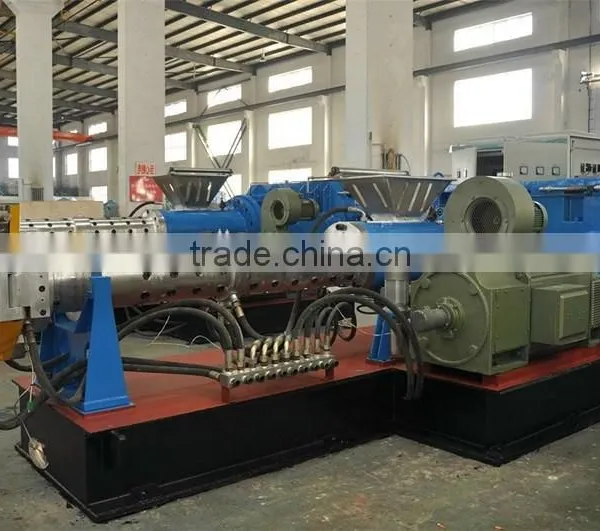

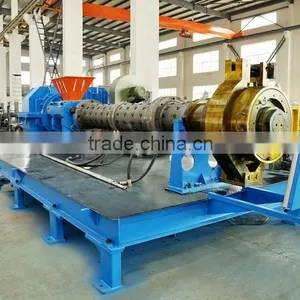

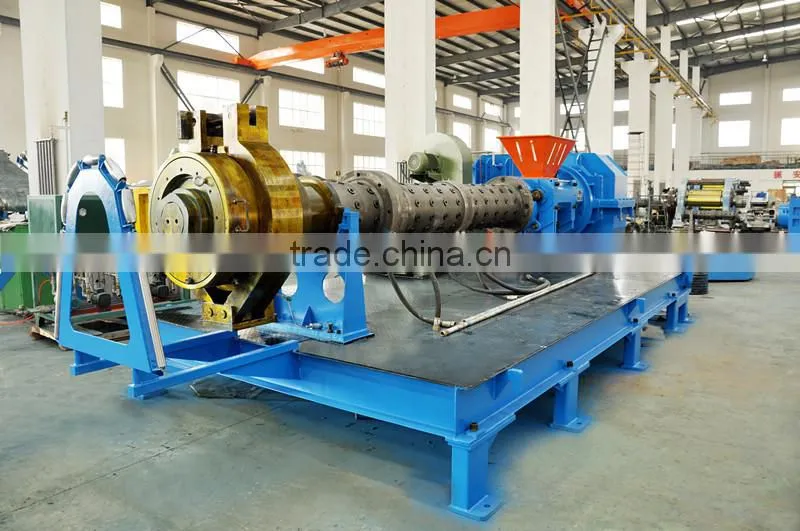

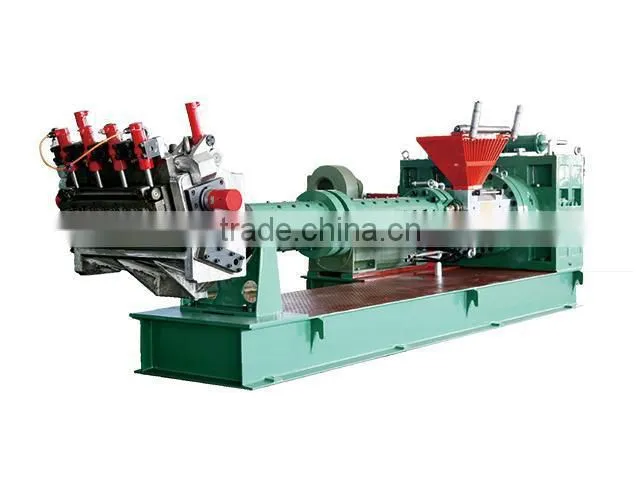

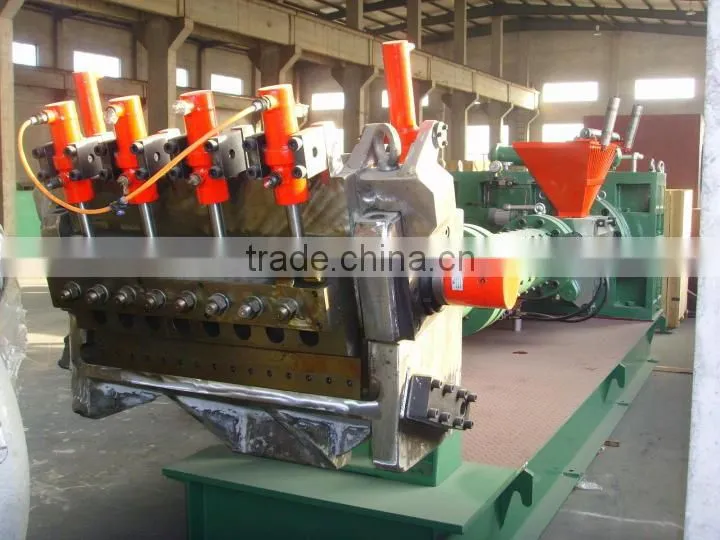

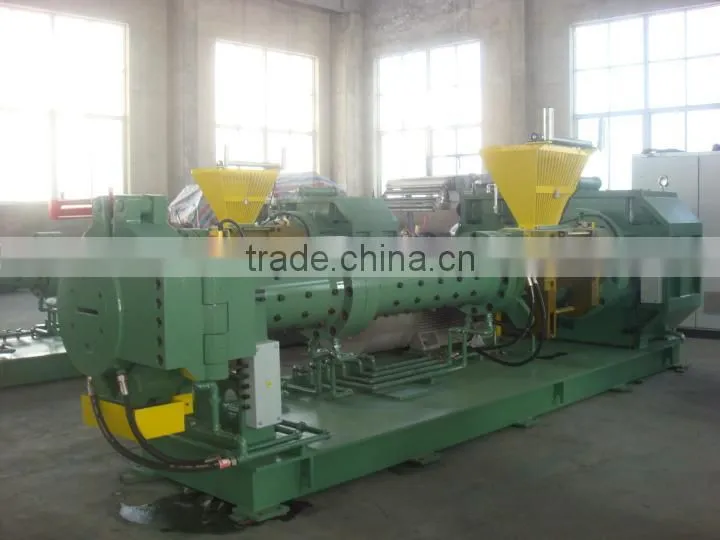

made in china pin barrel cold feed extruder
1. Application:
the pin barrel rubber extruder is mainly used for the shaping extrusions of rubber compounds at room temperature. when fitted with different extruder heads, it can achieve many rubber products in rubber industry, for example, extruding of inner tubes and tire treads, coating of rubber tube and conveyor belt, shaping extrusion of profiles of rubber sheet and plate. in addition, it also incorporates into a multiple extrusion unit together with other (hot or cold feed) rubber extruders.
pin barrel extruder has good plastifying and mixing properties which can result in uniformity goods, low extrusion temperature , high extrusion capacity , low power consumation, wide processing adaptability.
2. Technical specifications:
Data / Model |
XJD- 90X14D |
XJD- 120X14D |
XJD- 150X16D |
XJD- 200X12D |
XJD- 200X16D |
XJD- 250X12D |
XJD- 250X16D |
|
Diameter Of screw(mm) |
90 |
120 |
150 |
200 |
200 |
250 |
250 |
|
L/D |
14:1 |
14:1 |
16:1 |
12:1 |
16:1 |
12:1 |
16:1 |
|
Max. speed of screw(r/min) |
60 |
50 |
43 |
33 |
33 |
26 |
26 |
|
Size of feeding hopper (LxW) (mm) |
120x80 |
160x110 |
200x165 |
260x210 |
260x210 |
340x208 |
340x208 |
|
Row quantity of pins |
8 |
10 |
10 |
8 |
12 |
10 |
12 |
|
Pin quantity per row |
6 |
6 |
8 |
10 |
10 |
12 |
12 |
|
Hot water circulating zones |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
|
Total power for hot water heating |
24 |
36 |
48 |
48 |
54 |
48 |
48 |
|
Capacity (kg/h) |
360 |
1000 |
1800 |
2600 |
2600 |
3000 |
3000 |
|
Motor power (kw) |
55 |
90 |
220 |
280 |
315 |
400 |
450 |
|
Overall dimension(mm) |
L |
2300 |
3250 |
3880 |
4900 |
6200 |
5400 |
6077 |
W |
950 |
1250 |
1700 |
1900 |
1900 |
2400 |
2400 |
|
H |
1450 |
1650 |
1700 |
1850 |
1850 |
1920 |
1920 |
|
Weight (kg) |
3250 |
5670 |
7250 |
14000 |
14600 |
18000 |
20800 |
|
