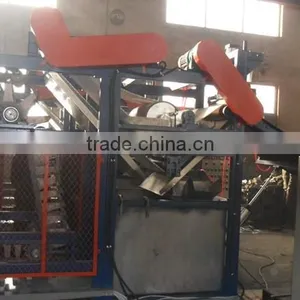

Rubber Cooling Machine thumbnail-3
Rubber Cooling Machine thumbnail-4
Rubber Cooling Machine thumbnail-5
Rubber Cooling Machine thumbnail-6
Rubber Cooling Machine photo-1
Rubber Cooling Machine photo-2

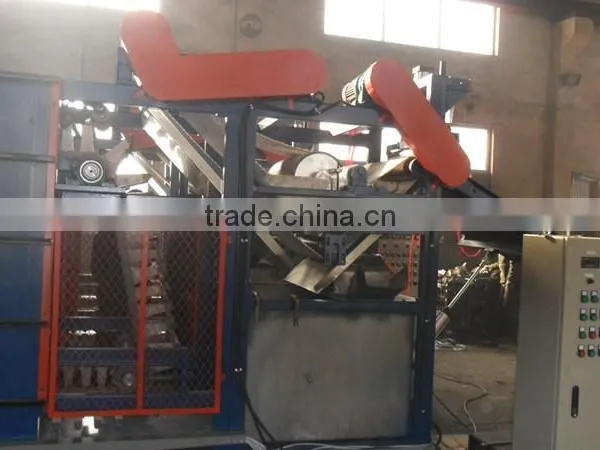

Rubber Cooling Machine photo-3

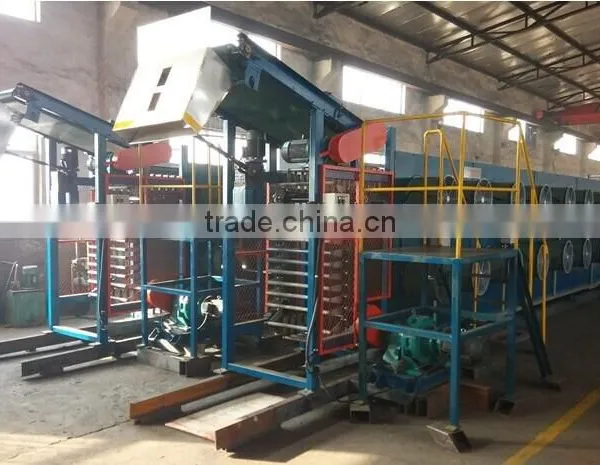

Rubber Cooling Machine photo-4

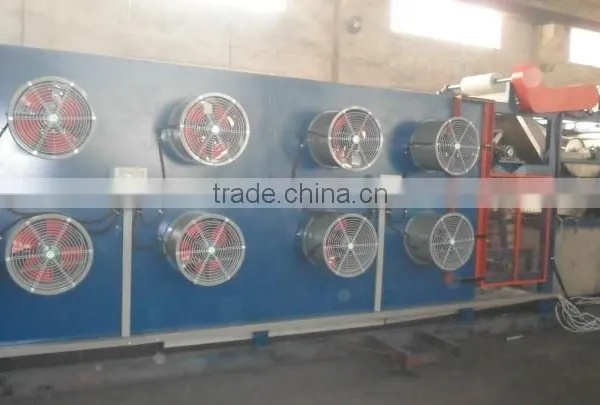

Rubber Cooling Machine photo-5
Rubber Cooling Machine photo-6
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Zhihong
Contact Supplier Request Quote Chat Now
Qingdao Zhihong Rubber Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name Zhihong
Model Number XPG600-900
Voltage 220V-460V
Power(W) 16kw
Dimension(L*W*H) 14250x3300x3405mm
Weight 11000kg
Certification ISO9001 CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Batch off unit machine / rubber sheet cooling machine

rubber cooling machine / rubber batch-off machine

qingdao machinery





1. Working condition:



1.1Machine application: The rubber sheet from the Calendar or Twin Screw Extruding



Sheeter, soaked, cooled, dryed etc.



1.2Machine using condition: highest temperature 40°C, lowest temperature 5°C, highest relative humidity 95%.



1.3Power: AC380/220,50Hz,   cooling water pressure: 0.4MPa,  cooling pressure 0.7~0.8MPa







2.Main technical specification:



Model

Item

XPG-600

XPG-800

XPG-900

Max. rubber sheet width

mm

600

800

900

The thickness of the rubber sheet

mm

4-10

4-10

6-12

Rubber sheeting temperature over room temperature after cooling

°C

10

15

5

Linear speed of taking-in conveyer

m/min

3-24

3-35

4-40

Linear speed of sheet hanging bar

m/min

1-1.3

1-1.3

1-1.3

Hanging height of the sheet hanging bar

m

1000-1500

1000-1500

1400

Number of cooling fans

Set

12

20-32

32-34

Total power

kW

16

25-34

34-50



Dimensions

L

mm

14250

16800

26630-35000

W

mm

3300

3400

3500

H

mm

3405

3520

5630

Gross weight

t

~11

~22

~34

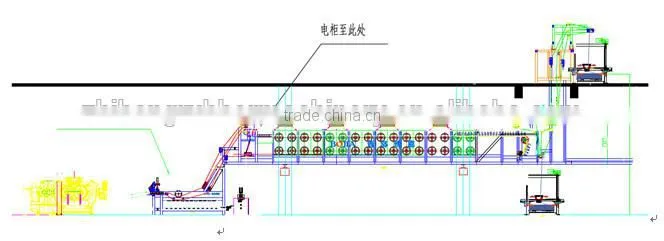

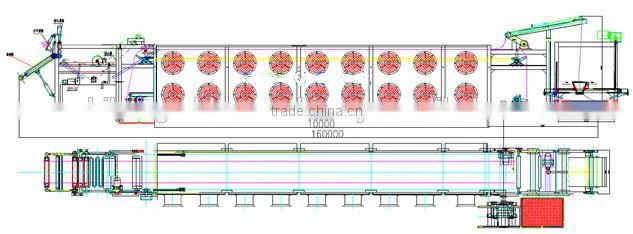

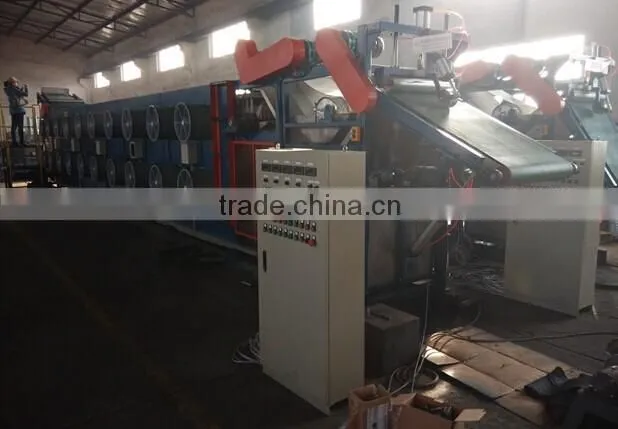

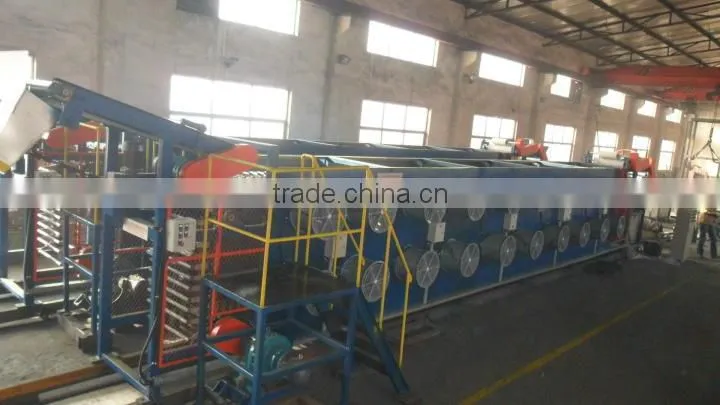

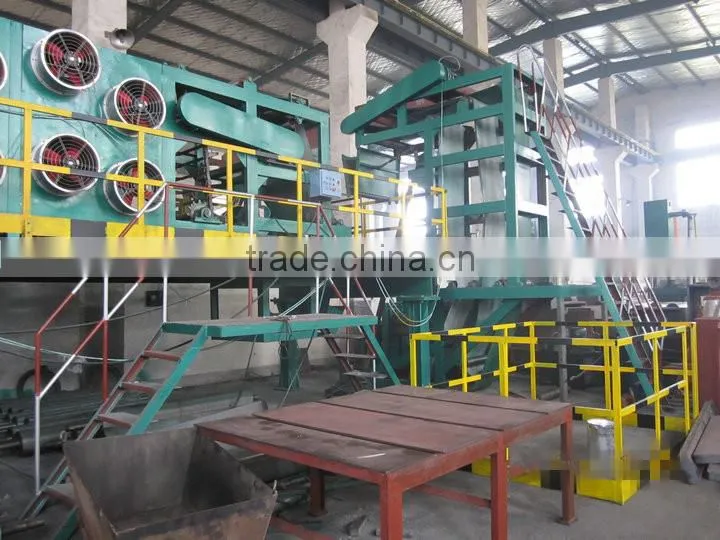

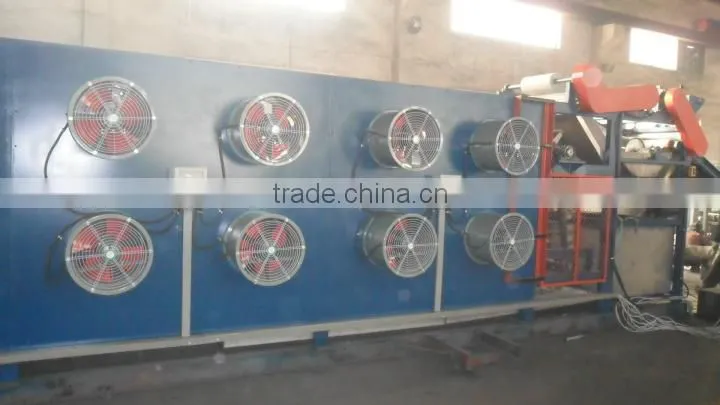

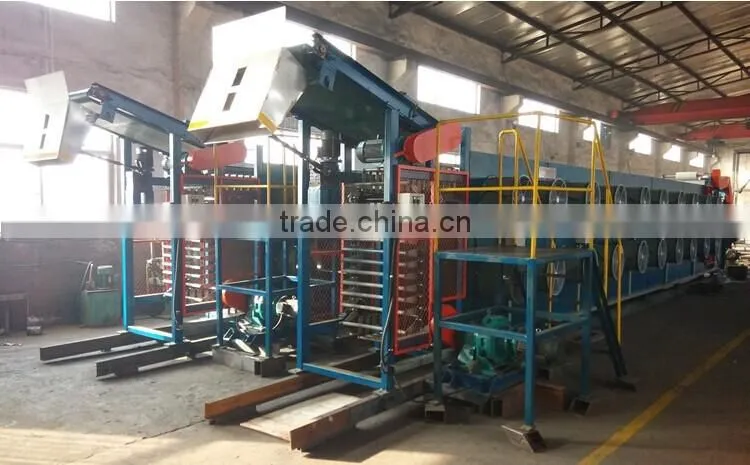

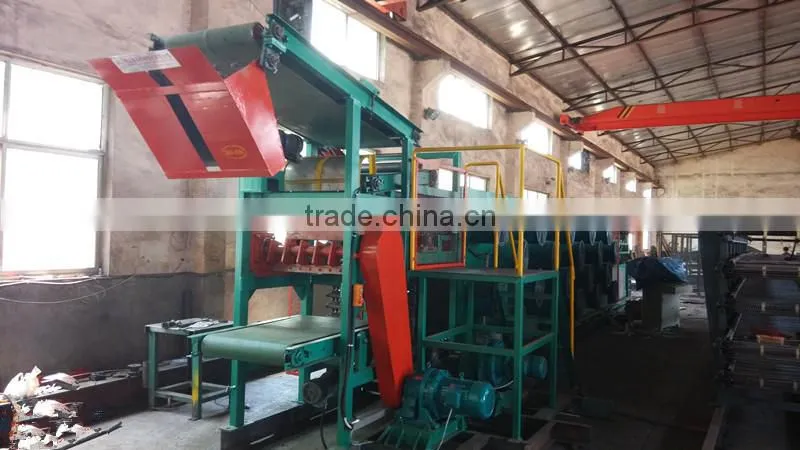

 rubber cooling machine



rubber cooling machinerubber cooling machine







rubber cooling machinerubber cooling machinerubber cooling machinerubber cooling machine



rubber cooling machine



If you are interested in our more products, please check our website:



https://img13.fr-trading.com



Thank you
