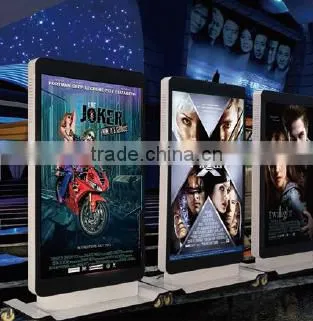

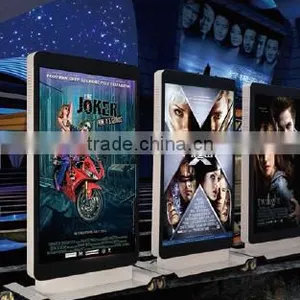

Mobile iphone shape LED screen from Yesso
Negotiable
/ Set
10 Sets(Min.Order)
- 200 Set / Sets per Month
- Shanghai
You May Like
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Yeeso | Model Number: | Yes |
Product Description
Mobile iphone shape LED screen from Yesso :
PartⅠ:Technical Specifications | |||||||
1.LED module | |||||||
Pixel pitch(mm) | 3.906 | Real pixel resolution(pixels/sqm) | 65536 | ||||
Module size L*H(mm) | 250*250 | Module resolution(pixels) | 640*640 | ||||
2.LED Cabinet | |||||||
Cabinet type | NON.waterproof | Cabinet material | Galvanized steel | ||||
Weight of cabinet(kg/sqm) | 35 | Waterproof level | IP31 | ||||
Max. power consumption(w/sqm) | 1100 | Average power consumption(w/sqm) | 450 | ||||
3. Real Size of LED Display | |||||||
Item | Length | Height | Total | ||||
Module matrix(pcs) | 7 | 4 | 28 | ||||
LED Display size(meter) | 1.75 | 1.00 | 1.75 | ||||
Display resolution(pixel) | 448 | 256 | 114703 | ||||
Max.power consumption(Kw) | 2 | Average power consumption(Kw) | 0.8 | ||||
4.Control sysytem | |||||||
Operation platform | WINDOWS XP / WINDOWS7 | Control mode | Synchronized control | ||||
5.Other specifications | |||||||
Brightness(nits)/SQM | >1600 | ||||||
Drive method | 1/16Scan/ Constant current | Percentage of failed pixel | <0.0001 | ||||
Refreshing frequency | ≥2000 | Frame change frequency(Hz) | ≥60 | ||||
Gray scale | 12 bit | Remote control | Supports(need internet) | ||||
Operation temperature | -20℃+55℃ | Relative humidity | 10~90% | ||||
Operating voltage | 220/110V/AC 50Hz +-10% | Brightness adjustment | Software/Manual | ||||
MTBF | >5,000hours | Lifetime | >100,000hours | ||||
6.Packing | |||||||
Packing material | Plywood packing case | Packing box quantity | 2 | ||||
Gross volume (m3) | 3 | Gross weight (kg) | 500 |
