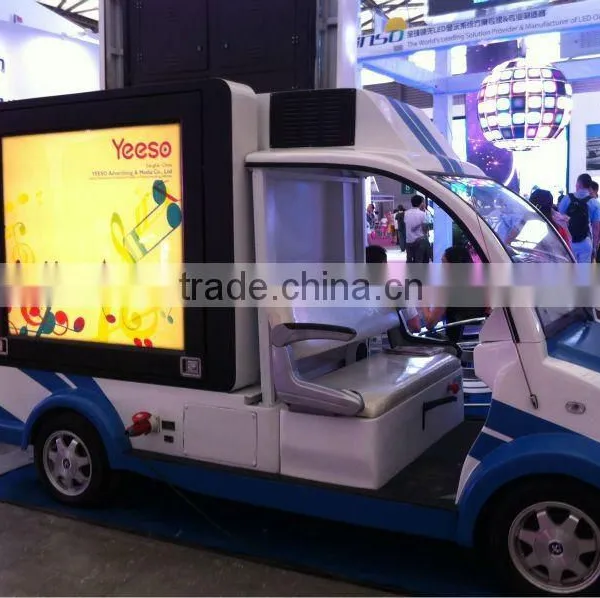

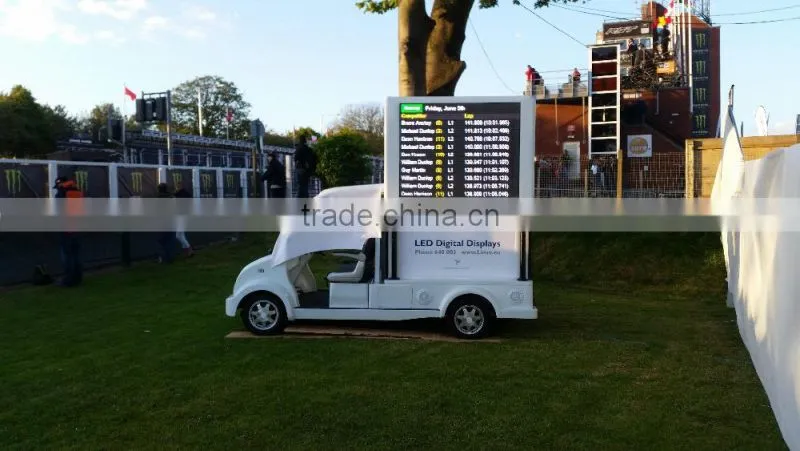

YEESO Outdoor Mobile LED Display Advertising car with Scrolling lightbox :
1.Generator inside;
2. Led screen could be folded;
3.It could be moved to anywhere as you like;
YEESO Outdoor Mobile LED Display Advertising car with Scrolling lightbox :
1. The led screen could be rotated in 360 degrees;
2. The screen could be folded and hidden inside the vehicle;
3. It is environment-friendly product;
4. It could work under bad weather circustances;
Technical Parameters of YEESO Outdoor Mobile LED Display Advertising car with Scrolling lightbox :
Model |
YES-TB16 |
|||||||
Chassis | ||||||||
Brand |
YEESO |
External dimension |
7900mm×2100mm×2800mm |
|||||
Material |
16 manganese steel |
Sheet metal structure |
1.5mm plate steel |
|||||
Tire |
Solid tire |
Gross mass |
8100KG |
|||||
Brake |
Manual and Hit hydraulic brake |
minimum turning diameter |
≤12000mm |
|||||
motor power |
6.5KW |
mileage range |
40-60KM |
|||||
Rolling door type protective cover | ||||||||
External Dimension |
5150mm×3100mm×2 |
Material |
high-strength aluminum alloy |
|||||
verticality error |
5° |
horizontal error |
50mm |
|||||
Power |
speed adjusting motor |
Sporty Structure |
3mm steel wire |
|||||
Hydraulic lifting & supporting system | ||||||||
Hydraulic lifting system for LED screen |
Lifting height:2000mm,afford 3T |
|||||||
Hydraulic supporting system |
leading screw supporting legs system, It can goes up 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up |
|||||||
Slewing mechanism | ||||||||
rotation angle |
360° |
structure |
slewing ring |
|||||
LED screen | ||||||||
Screen size |
4800mm×3200mm |
Module size |
160mm(W) ×160mm(H) |
|||||
Chip |
R: Guanglei, G,B:Silan
|
Pixel pitch |
10 mm |
|||||
Brightness |
≥6000cd/ m² |
Max power consumption |
1200 W/ m |
|||||
Average power consumption |
600W/ m² |
Life span |
100,000hour |
|||||
Power supply | ||||||||
Input voltage |
three-phase five-wire 380V |
Output voltage |
220V |
|||||
Electrical current |
50A |
Power consumption |
average:0.5wh/m² |
|||||
Multi-media control system | ||||||||
Industrial PC |
Processor: Dual Core CPU, display card: 512,hard disk:320G,CD-ROM:DVD, internal storage:2G |
|||||||
Monitor |
KVM 15-inch LCD display |
Power amplifier |
unilateral power output:200W |
|||||
Speakers |
Max power consumption:200W |
Control system of LED screen |
Linsn/ZHOGNQING(technology of point by point correction) |
|||||
Optional Configuration | ||||||||
LED Screen |
Could choose size of 4800mm×2400mm |
|||||||
electrical equipment |
Could choose touch touch panel,wireless,upper computer control system |
|||||||
