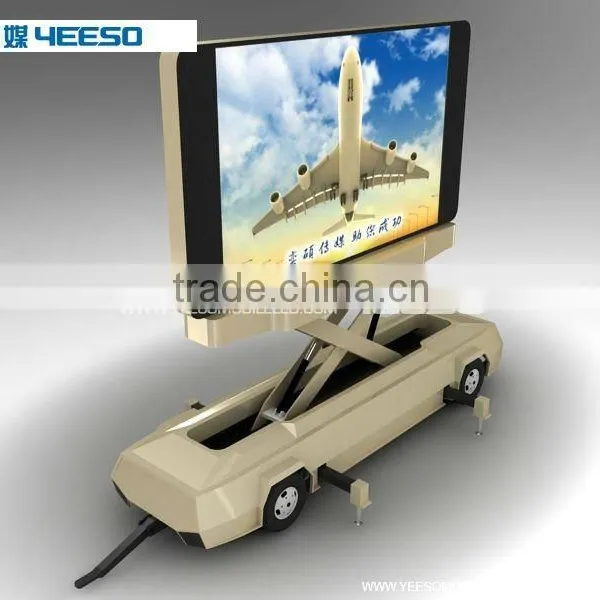

YES-T12 Outdoor Mobile LED Advertising Trailer

Name: YES-T12 Outdoor Mobile LED Advertising Trailer
Brand: YEESO
SKU: 115236429

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

YEESO

Model Number:

YES-T12

Yeeso Multimedia Mobile Tech (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name YEESO

Model Number YES-T12

Specifications

YES-T12 Outdoor Mobile Advertising Trailer can amazingly bring your advertisement to audience.

YES-T12 Outdoor Mobile LED Advertising Trailer:

1.It could be moved to anywhere as you like;
2.Easy maintenance and operation;

3.With screen lifting system;

Technical Parameters:

Model	YES-T12
Chassis
Brand	Yeeso	External dimension		6600mm×1820mm×2650mm
Material	16# manganese steel	sheet metal structure		1.2mm plate steel
Tire	650 rubber tire	Gross mass		4750KG
Brake	Manual and Hit hydraulic brake	minimum turning diameter		≤18000mm
Scissor Type Hydraulic Lifting Platform and support system
Hydraulic lift platform	Lifting type:Scissor,Platform size:3200mm×750mm×400mm Lifting height:2000mm,load bearing :5T
Supporting system	leading screw supporting legs system, Lifting height: 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up
LED screen
Screen size	4800mm×2400mm=11.52 sqm		Module size		160mm(W) ×160mm(H)
Chip	R: Guanglei,G,B:Silan		Pixel pitch		10 mm
Brightness	≥6000cd/ sqm		Max power consumption		1200 W/ m
Average power consumption	600W/ m²		Life span		100,000hour
Power supply
Input voltage	three-phase five-wire 380V		Output voltage		220V
Electrical current	50A		Power consumption		average:0.5wh/sqm
Multi-media control system
Industrial PC	Processor: Dual Core CPU, display card:512,hard disk:320G,CD-ROM:DVD, internal storage:2G
Monitor	KVM 15-inch LCD display		Power amplifier		unilateral power output:200W
Speakers	Max power consumption:200W		Control system of LED screen		Linsn/ZHOGNQING(The patent technology of point by point correction)
