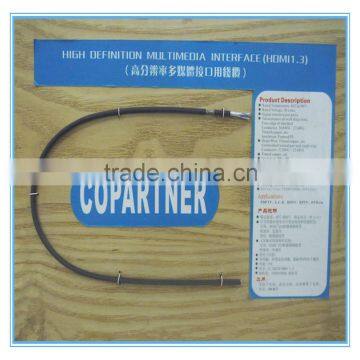

high quality HDMI wires

• Rated Temperature: 60℃or 80℃. Rated Voltage: 30 volts.

• Shielded twisted pairs

Twisted pairs each individually and drain wire, Free-edge Al shielded

• Conductor: 30AWG or 28AWG or 24AWG stranding

Tinned copper

• Insulation: Foamed PE

• Drain Wire: 30AWG or 28AWG or 24AWG standing

Tinned copper

• Unshielded twisted pair and single wire

Conductor: 30AWG or 28AWG or 24AWG stranding

Tinned copper

Insulation: PP or PE

• Filler optional

• Inner Shielded: Al-Mylar foil side facing out 25% overlap

• Outer Shielded: 38AWG or 36AWG tinned copped braid

85% (min.) coverage

• Jacket: PVC

• Print Legend: UL 20276

Electrical Properties

• DC Conductor Resistance at 20℃

30AWG: 376.96Ω/Km (max)

28AWG: 237.25Ω/Km (max)

24AWG: 93.25Ω/Km (max)

• Cable Assembly Intra-Pair Skew: 151psec (max)

• Cable Assembly Inter-Pair Skew: 2420psec (max)

• Far-end Crosstalk: -26dB(max)

• Attenuation (Insertion Loss):

8dB (max) @at 300KHz – 825MHz

21dB (max) @at 825MHz – 2.475GHz

30dB (max) @at2.475GHz – 4.125GHz

• Differential Delay: 5.05nsec/m

• Differential Impedance: (1nsec – 2.5nsec): 100 ohms ± 10%

(Measurement point for TDR measurement of impedance)
