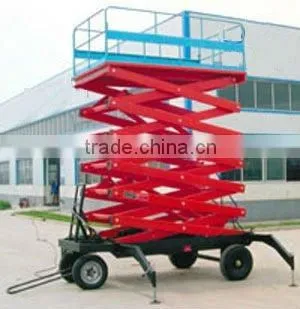

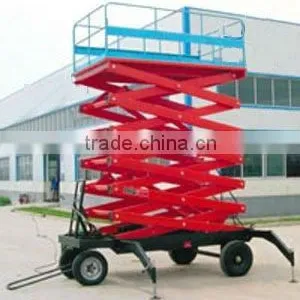

SJY series 4 wheels hydraulic movable lift platform,lift table

Specifications

1.High efficiency,low maintenance
2.Easy operation,flexible running
3.Durable performance
4.Competitive price

SJY series 4 wheels hydraulic movable lift platform,lift table



This kind of lift platform is mobile with 4 wheels, strong scissor steel structure, antiskid floor table,safe guardrail, elevated by strong hydraulic system can have frequent lifting and descending, smooth and stable lifting and descending, high efficiency, flexible moving, low cost maintenance, it is a common tool to be widely used indoor or outdoor for aerial work, e.g, equipments installation and maintenance,street lamp repairing, indoor decorating, building, etc, the max.capacity is 2t,max.elevating height could be 16m,platform size is customized.



Basic parameters:

1.Cap.:0.3-2t
2.Lifting height:max.16t
3.Voltage:220/380/400/415v,50/60hz
4.Button,wireless control
5.Siemens electric system

6.Manual pump is equiped for the use in case power is cut off

7.Frequent lifting and descending,stable and smooth



Safe features:

1)   Antiskid floor platform

2)  Safe guardrail,could be removable from machine

3)  Self-locking funtion will work when electricity is suddenly cut off.

4)  Systerm have emergency drop valve, which can let platform descend safely.

5)  Four telescopic supporting legs in four cornor, which can keep machine more stable.



Below spec.is for your reference,if you intend to buy the product,pls kindly tell us below information:

1.Capacity: 0.5t,1t,etc

2.Table size:1.5x2.5m,etc

3.Lifting height:8m,9m,etc

4.Voltage:220v/380v/400v/415v,50/60hz.

Warmly welcome you choose our high quality products,you could contact me online or by email, you will enjoy my prompt ,high efficiency,professional service!!!



Standard technical spec.



Specification	Height (m)	Capacity (kgs)	Size table(mm)	Overall dimension(mm)	Power Kw	Weight (kgs)
SJY0.3-4	4	300	1700*1080	1820*1400*1180	2.2	660
SJY0.3-6	6	300	1700*1080	1820*1400*1280	2.2	750
SJY0.3-8	8	300	1800*1060	1900*1380*1460	2.2	850
SJY0.3-10	10	300	1920*1200	2040*1580*1660	2.2	1300
SJY0.3-12	12	300	2370*1300	2510*1630*1980	2.2	1420
SJY0.3-14	14	300	2650*1300	2800*1660*1980	2.2	1800
SJY0.3-16	16	300	2650*1340	2800*1600*2130	3	2800
SJY1.0-8	8	1000	1940*1300	1920*1630*1980	2.2	1050
SJY1.0-10	10	1000	1920*1300	2060*1630*1980	2.2	1500
SJY1.0-12	10	1000	2400*1340	2530*1630*2000	3	1700

According to customers' requirement, we can design customize
