BZD Model 10 Ton Heavy Duty Jib Crane Design

BZD model 10 ton heavy duty Jib Crane design

Product introduction

 v The capacity: from 0.5ton to 20ton

 v The valid radius: from 2m to 15m

 v The lifting height: 2m~6m or other demand

 v Working grade: A3

 v Slewing angle: 360 or 270

 v Working temperature: -25~+40 centigrade

 v Hoist type: Wire rope electric hoist

The sketch of jib crane

The arm and support pillar of jib crane

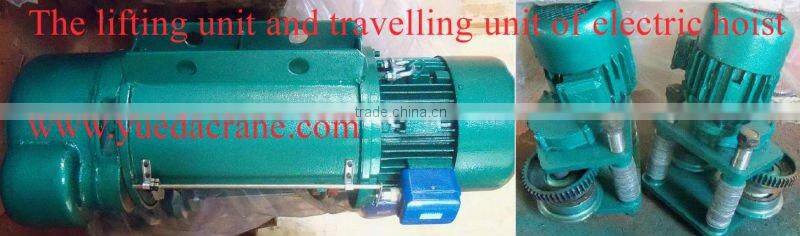

Electric hoist(lifting unit) and control system

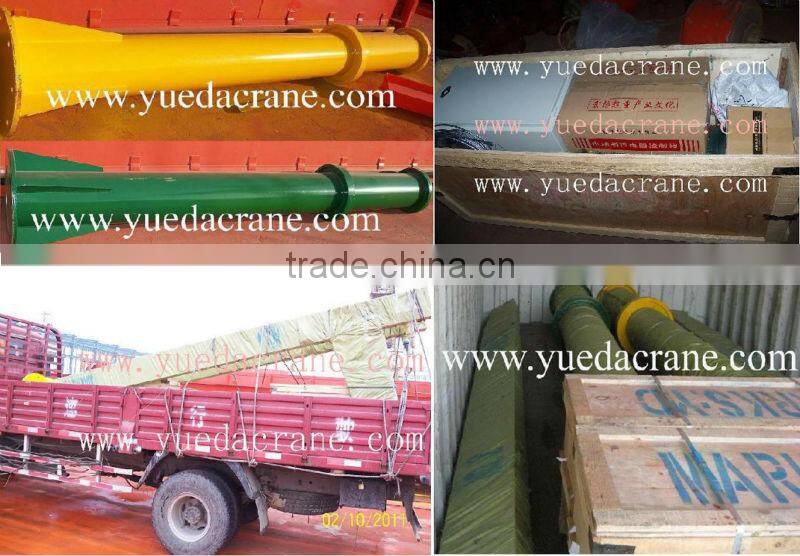

The packing and transport of jib crane

Service

1)  Pre-sale service:

Freely provide project designing, process designing, choosing suitable equipment for you.

2)  Medium-sale service:

Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3)  After-sale service:

u 14 months warranty the date of B/L

u One year quick-wear parts for free

u Professional technicians provide installation, commissioning services

u Technical advisory for any time

FAQ

If you are interested in our jib crane, please confirm the below information:

1. Capacity of crane

2. Arm length

3. Lifting height

4. Industrial voltage

Welcome choose our jib crane and visit our factory, our engineers and technicians will service you with all technical support.

Thanks for your browse.
