2 level hydraulic car parking lift : PTJ201
Product description
This parking system is designed of up and down as one unit. The bottom car can go in and out directly.
When the upper space needs to park a car, the car in the bottom should be driven out; It can be widely used in hotels, enterprises and public institutions and residential area. Column can be N+1 from, saving land area, full use of space, property rights;
Product parameter
Model |
PTJ201-23 |
PTJ201-27 |
PTJ201-32 |
Dimension |
4042*2560*3250mm |
4466*2560*3500mm |
4466*2560*3500mm |
Weight of parking car |
2300kg |
2700kg |
3200kg |
Lifting height |
2100mm |
2100mm |
2100mm |
Total height |
3250mm |
3500mm |
3500mm |
Platform size |
3949*2100mm |
4173*2100mm |
4173*2100mm |
Package size |
3800*800*800mm |
3850*1000*970mm |
3850*1000*970mm |
product weight |
950kg |
1032kg |
1060kg |
Motor |
2.2kw |
||
Warming device |
Yes |
||
Operate mode |
Button / Remote key / key |
||
Control mode |
Hydraulic control |
||
Mode of drive |
Hydraulic driving, chain balance |
||
Motor power |
Depend on your order |
||
Surface treatment |
Spraying plastic / Hot-galvanize |
||
Unlock methods |
Electric unlock |
||
20’container |
6 sets |
||
40’container |
18 sets |
||
Drawing:
PTJ201-23
PTJ201-27
PTJ201-32
Product details
- Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.
- Limited switch device: to protect the equipment running.
- Photoelectric switch (device for checking the entrance of people and vehicles): to prevent the people from accidently entering into the equipment under operation.
- Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.
- Used cylinder reversal, have many advantages, not distortion, dustproof.
- Adopt Italy Aston Seal ring.
- Adjusting lifting height, the maximum lifting height can be 2200mm. Usually, lifting height is 1900mm, 2000mm or 2100mm.
- Lifting capacity can be 2700kgs.
- Structure all adopts layer cutting, attractive appearance, easy installation, less questions, easy maintenance.
- The width of car carrier board is 2100mm.

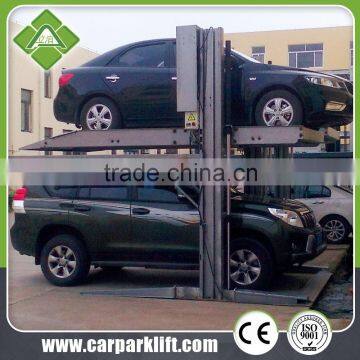

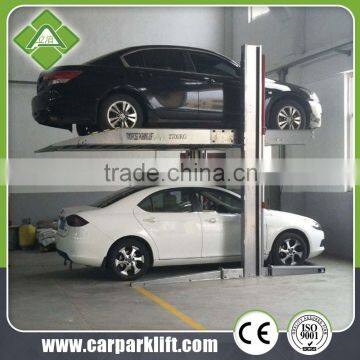

Product photos

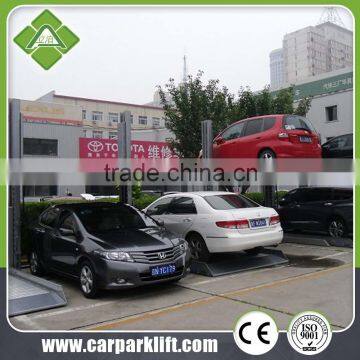

PTJ201 can connected together, share columns, save costs and space. Like this:
The package
- Iron frame to fix equipment.
- All structures fixed on the frame by screws.
- All electric wires and motor put into carton.
- Iron frame and carton will be covered by stretch film.
- Each package will twine three stretch film to prevent water.
- During the unloading, please use forklift to unload the iron frame.
Factory information
Qingdao Telian Machinery Co., Ltd. is an enterprise that specializes in research ,production ,sale and service of simple household parking lift. Main products are two post parking lift, four post parking lift, tilting parking lift, underground parking lift, car lift, lift-sliding parking lift etc.
Quality is the life of enterprise. As the manufacturer and supplier, Telian focus on quality and technical innovation.The production of device put through strict quality control. Meanwhile, Telian smart two level parking lift imported Germany advanced technology andpassed the European CE certification.
The characteristics of products are easy operation, safe and reliable, attractive appearance, small floor space, easy installation, low energy consumption, low noise. The products are used in enterprise, office building, dwelling and hotel. The quality of the products is better than others in the market.
We also have many custmers in the world, such as the Singapore, New Zealand, United Arab Emirates, United Kingdom, Thailand, Russia, Sri Lanka etc.
Customer’s demand is the guide of Telian. We also can customize the products for you.
The queations
It is my pleasure to provide you the details.
Category |
Question |
answer |
About products |
Can we connect two machines together? |
Yes, they can share their columns. And that can save space and money. |
What if we can't install it? |
Don't worry, we will help you. The install way is so easy, and you will have a detailed installation manual. |
|
|
Is PTJ201 used indoor or outdoor? |
Both of them are avaliable. |
|
|
Could PTJ201 be used for parking SUV? |
Yes. PTJ201 used for parking 1 SUV and 1 Sedan. |
|
Is there any other sizes? |
Yes, of course, we can custom made it for you. |
|
About terms |
What is the standard trade term for making business with us? |
Usually we send the shipments in FOB term. However,the terms of CIF and CFR are acceptable which depend of clients. |
|
What is the delivery time after placing the order? |
Usually it takes 15-30 days after we received your down payment.However,it would depend on our production line schedule (the timing clients place order) and the complication of the item. |
|
What is the payment? |
By T/T,50%is paid in advance; balance before delivery. |
|
|
How do you package the equipment? |
Our packing is used Iron frame +structures . |
|
What is the min order? |
1 set. |
|
What is the warranty? |
1 year for free,after sales service for ever. |
