Production Description
Name |
Four post car parking lift |
Model |
PTJ601-27 |
Dimension |
4810*2667*2084 |
Weight of parking car |
2700kg/5947lbs |
Color |
silver |
Rated speed |
2m/min |
Lift height |
1850mm |
Total height |
2048mm |
Motor |
2.2kw |
Warming devices |
yes |
Mode of poerate |
Hydraulic driving |
Mode of control |
Button |
Mode of drive |
Hydraulic driving |
Electrics motor |
Can be customized |
Package size |
4200*630*630 |
Gross weight |
750kg |
20 ft container |
10 set |
40 ft container |
20set |

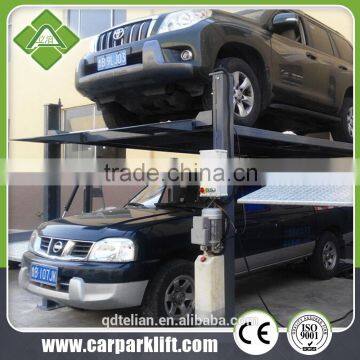

·This parking system is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out;
·Hydraulic drive
·Low noise, smooth operation, save energy, low carbon and environmental protection;
·Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow
Polluting the lower vehicles;
·Spraying plastics, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics;
Drawing:
1. By sharing column, the total width of the product have different figure.
2.Zinc cover plate used for water-proof.
3. The standard system is powder coated with zinc cover plate, and can be galvanized for outdoor use.
4. Mechanical lock on both sides for safety.
5.Cylinder direct drive.
6 Sound & light alarm during lowering the system.
7. Electric protection for power over load or under voltage.
8. Auto locking system for power cut as safety features.
9. Emergency stop button.
10. Explosion relief valve make sure hydraulic safety.
advanced equipment and technology
High quality raw materials
CE certification
1.All structures fixed on the frame by screws.
2.All electric wires and motor put into carton.
3.Each package will twine three stretch film to prevent water.
4.During the unloading,please use forklift to unload the iron frame.
Qingdao Telian Machinery CO.,LTD
Qingdao Telian Machinery Co., Ltd. is an enterprise that specializes in research ,production ,sale and service of simple household parking lift. Main products are two post parking lift, four post parking lift, tilting parking lift, underground parking lift, car lift, lift-sliding parking lift etc.
Quality is the life of enterprise. As the manufacturer and supplier, Telian focus on quality and technical innovation.The production of device put through strict quality control. Meanwhile, Telian smart two level parking lift imported Germany advanced technology and passed the European CE certification.
The characteristics of products are easy operation, safe and reliable, attractive appearance, small floor space, easy installation, low energy consumption, low noise. The products are used in enterprise, office building, dwelling and hotel.
Currently, our products have been sold around the world, such as the United States, Canada, Mexico, Brazil, Chile, Australia, Kenya, Nigeria, the United Kingdom, Spain, Russia, India, etc.
Gold Services
1.ONE HOUR
- After - sales service employees can arrive at the scene within one hour to make emergency treatment of the fault , when receiving the user repair calls.
2.24 HOURS
- The company has a sound service management system, a 24-hour dedicated telephone for after - sales service, handling complaints within 24 hours.
3.ONE YEAR
- Equipment warranty is one year. During the warranty period, labor or material costs for maintenance and repair will be free
4. Customized design is available.OEM&ODM are welcome.
5. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers .
6. Special discount and protection of sales are provided to distributors.
7. Provide different grades of products, to meet market requirements.
