Parking Lift Type automatic car parking system, PTJ601-32
The use of advanced hydraulic system, the hydraulic pump output pressure oil to drive the hydraulic cylinder, hydraulic cylinder drives the wire rope, the car carrying board synchronos steady rise or fall, to access the purpose of the car. Parking equipment position as a unit.
The lower the vehicle can directly access, access to the vehicle, the lower the vehicle at.
Suitable for residential, villas, automotive beauty shops, underground parking lot, etc...
Product advantages
- Make full use of the space, parking is convenient, beautiful appearance, durable, family and height practicability.
- Low noise,energy saving, low carbon environmental protection.
- The car carrying a totally enclosed design, can avoid water pollution and lower permeability oil vehicle, vehicle into the rain and snow.
- Lifting times is short, the car quickly, typically within 40 seconds. Electrical and drive part, a waterproof characteristics.
- Seiko secret agents, has the advantages of simple structure, compact and practical.Can be arbitrary relocation, installation is simple, time is short, without welding, cutting. Very low on the civil requirements.
- It can add four wheel positioning device, two lifting device, can be also overhaul parking location.
Product parameter
The drawing:
Model |
PTJ 601-32-4700 |
PTJ601-32-4080 |
Dimension |
5423*2778*2332mm |
4805*2667*2084mm |
Weight of parking car |
3200kg |
3200kg |
Rated speed |
2.2 m/min |
2.2 m/min |
Lifting height |
2000mm |
1700mm |
Total height |
2332mm |
2084mm |
Center Width of post |
4700*2050mm |
4080*1888mm |
Package size |
4800*630*630mm |
4300*640*600mm |
Weight |
850kg |
750kg |
Motor |
2.2kw |
|
Warming devices |
Yes |
|
Mode of operate |
Button / key |
|
Mode of control |
Hydraulic control / manual control |
|
Mode of drive |
Hydraulic driving, wire rope balance |
|
Motor power |
depend on your order |
|
20 ft container load |
12 sets |
|
40ft container load |
24 sets |
|
(running board is 4700mm):
(Running board is 4080mm):
Product details
Electric control: Electromagent pull unlock block, complete unlock.
Manual control: Manual operation the pull rod, pull unlock block,complete unlock.
Shield: It can protect the power unit away from the rain or sunlight.
Others:

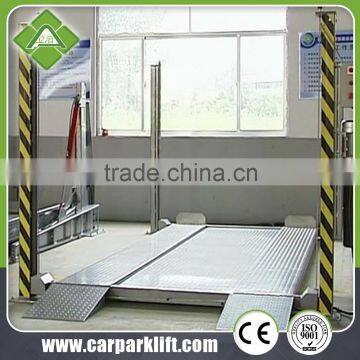

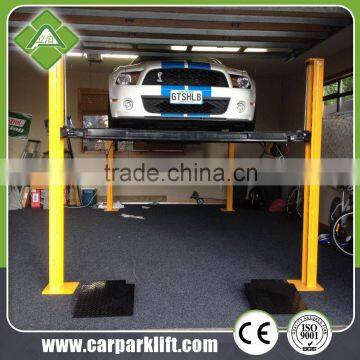

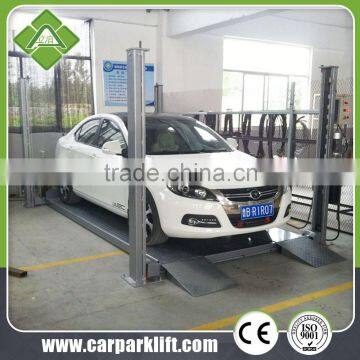

Product photos
The package
- Iron frame to fix equipment.
- All structures fixed on the frame by screws.
- All electric wires and motor put into carton.
- Iron frame and carton will be covered by stretch film.
- Each package will twine three stretch film to prevent water.
- During the unloading, please use forklift to unload the iron frame.
Factory information
Qingdao Telian Machinery Co., Ltd. is an enterprise that specializes in research ,production ,sale and service of simple household parking lift. Main products are two post parking lift, four post parking lift, tilting parking lift, underground parking lift, car lift, lift-sliding parking lift etc.
Quality is the life of enterprise. As the manufacturer and supplier, Telian focus on quality and technical innovation.The production of device put through strict quality control. Meanwhile, Telian smart two level parking lift imported Germany advanced technology andpassed the European CE certification.
The characteristics of products are easy operation, safe and reliable, attractive appearance, small floor space, easy installation, low energy consumption, low noise. The products are used in enterprise, office building, dwelling and hotel. The quality of the products is better than others in the market.
We also have many custmers in the world, such as the Singapore, New Zealand, United Arab Emirates, United Kingdom, Thailand, Russia, Sri Lanka etc.
Customer’s demand is the guide of Telian. We also can customize the products for you.
The queations
It is my pleasure to provide you the details.
Category |
Question |
answer |
About products |
Is PTJ601-32used indoor or outdoor? |
Both of them, indoor and outdoor. |
What if we can't install it? |
Don't worry, we will help you. The install way is so easy, and you will have a detailed installation manual. |
|
Is there any other sizes? |
Yes, of course, we can custom made it for you. |
|
About terms |
What is the standard trade term for making business with us? |
Usually we send the shipments in FOB term. However,the terms of CIF and CFR are acceptable which depend of clients. |
|
What is the delivery time after placing the order? |
Usually it takes 15-30 days after we received your down payment.However,it would depend on our production line schedule (the timing clients place order) and the complication of the item. |
|
What is the payment? |
By T/T,50%is paid in advance; balance before delivery. |
|
|
How do you package the equipment? |
Our packing is used Iron frame+structures . |
|
What is the min order? |
1 set. |
|
What is the warranty? |
1 year for free,after sales service for ever. |
