Specifications
1.used for family2.hydtaulic driving
3.max lifting weight is 2700kg, can park SUV
4.share the column, save land area.

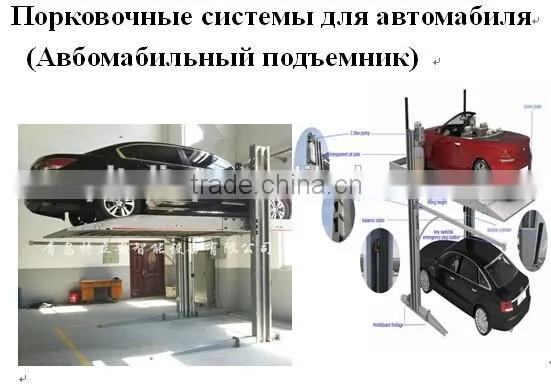

PTJ201-27 Two Post Parking Lift
PTJ201-27 Two Post Parking Lift is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
Production Description:
Protective device
Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.
Limited switch device: to protect the equipment running.
Photoelectric switch (device for checking the entrance of people and vehicles): to prevent the people from accident entering into the equipment under operation.
Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.
Adjusting lifting height
lifting height can be 0≤H≤2100mm. can be used to park SUV.
Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall.
Low noise, smooth operation, save energy, low carbon and environmental protection.
Vehicle loading pallet fully enclosed design to avoid oil leakage polluting the bottom car.
Spraying plastics, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics.
Structure all adopts laser cutting, attractive appearance, easy installation, less questions, easy maintenance.
Simple structure, easy installation, minimal requirements for civil engineering.
It can be widely used in hotels, enterprises and public institutions and residential area. Column can be N+1 form, saving land area, full use of space, property rights.
Specifications:
Name |
Two Post Parking Lift |
Model |
PTJ 201-27 |
Dimension |
4529*2560*3500mm |
Weight of parking car |
2700kg/ 5947lbs |
Rated speed |
2m/min |
Lifting height |
2100mm |
Total height |
3500mm |
Size of vehicle loading pallet |
4166*2100mm |
Motor |
2.2kw |
Warming devices |
Yes |
Mode of operate |
Button / IC card / Remote key |
Mode of control |
PLC control |
Mode of drive |
Hydraulic driving, chain balance |
Electrics motor |
380v,3 phase; 220v single phase |
Package size |
3850*1000*970mm |
weight |
1100kg |
20’ container |
11set |
40’ container |
22set |
Production Configuration:
|
Item |
Specifications |
Steel structure |
Stand column |
T=5mm |
Side beam |
T=5mm |
|
Sliding table |
T=6mm |
|
Waved plate |
T=2mm |
|
Power |
Power unit |
380v50hz,2.2kw/220v50hz,2.2kw |
Hydraulic tubing |
Outer diameter 14mm |
|
Inner diameter 6mm | ||
Direct current transformer |
24V |
|
Electrical |
Contactor |
220/380V |
Control button |
24V |
|
Travel switch |
24V |
|
Photoelectric switch |
24V |
Product Detail:
Drawing:
We are glad to introduce our company, Qingdao Telian Machinery Co., Ltd to you. As a professional manufacturer of simple parking system, we are committed to offer the most suitable
and cost effective parking system solutions to you, including two post parking equipment, four post parking equipment, tilt parking equipment, pit type parking system, lift-sliding parking system etc.
We are committed to provide high quality products. Our product passed the European CE certification. During the whole production procedure, the quality is inspected strictly.
Five years guarantee for parts and one year for main structure
24 hours technical surport by e-mail Calling or door to door service
To meet different user purposes, we provide customized service. Including lifting capacity, lifting height, dimension of platform, color and so on.
Q: How many cars could be parked for each set?
A: 2 cars.
Q: Could PTJ201-27 be used for paking SUV?
A: Yes. PTJ201-27 used for parking 1 SUV and 1 Sedan.
Q: Is PTJ201-27 used indoor or outdoor?
A: Both of them are avaliable.
Q: What's the MOQ?
A: 1 set.
Q: What's the supply voltage?
A: Standard voltage is 220v, 50Hz, 1Phase or 380v, 50Hz, 3Phase. Other voltage could be customized according to clients' request.
Q: Is the installation simple?
A: Yes. Most of structure and parts are pre-positioned in factory. Detailed installation manual and drawing are provided from us. If the project is necessary, we could send our engineer for site guidance.Just one person could opetate the lift by key switch, without any specail training.
Q: warranty
A: 5 years for structure and 1 year for parts.
