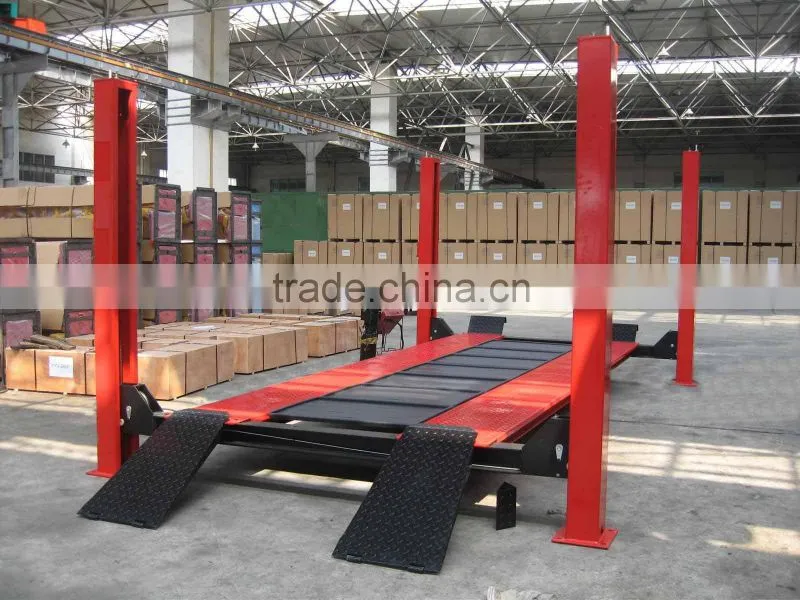

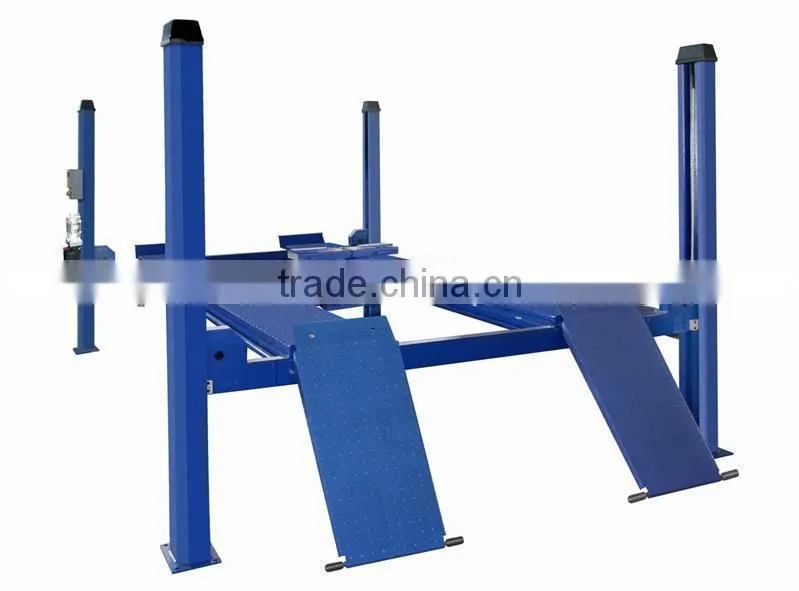

Help Center4 Cylinder Hydraulic Car Lift 2.5 T
Related Products
-
Non Avoid Car Lift/car Washing Lift/non Avoid Park LiftNegotiableMOQ: 1 Set -
Non Avoid Parking System/smart Car LiftNegotiableMOQ: 1 Set
-
Mini Non Avoid Car Lift/car Washing LiftNegotiableMOQ: 1 Set
-
Non Avoid Car Lift/car Lift/carports ChinaNegotiableMOQ: 1 Set
-
Used Cheap Non Avoid Parking Lift for Sale/car Washing LiftNegotiableMOQ: 1 Set
Specifications
4 Post Car LiftHydraulic driven
Mobile car Lift
CE certifications

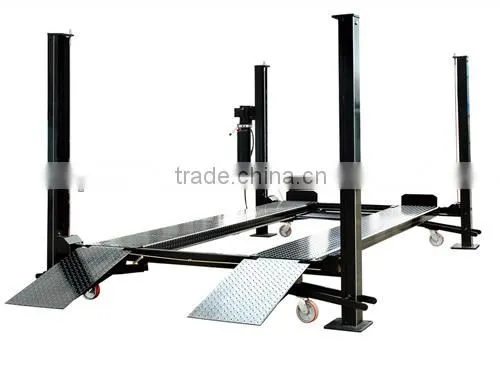

Portable 4 Post Hydraulic Car Lift
Technical parameters
Model No. |
Lifting capacity |
Lifting height |
Width between posts |
Width between runways |
Rise/Drop time |
Power |
QTLP608 |
3200kgd/7000lbs |
1800mm |
1902mm |
956mm |
60/90s |
2.2kw |
Production Description:
·The best choice for parking and simple repair;
·Hydraulic driven, cable lifter system
·Manual or electric single point release
·Automatic lock system to ensure safety at different heights
·Maintenance free load bearing
·Stop blocks in all posts for added safety
·Moveable drips trays prevent pollution of vehicle on floor
·Caster kit for moving for moving the lift easily
·Mold machining through the whole progress so that the parts are universal and interchangeable
·120% capacity dynamic load test and 150% capacity static load test;
·Italian oil seal to make sure no oil leakage;
·Optional manual pump for lock release in case of power off
·Optional 24 control box and solenoid valve
Specifications:
Working noise: ≤75dB(A)
Rise time: 60s
Drop time: 90s
Working temperature: -5 °C ~ 40 °C
Motor power: 2.2kw / 220v, 380v
Relative humidity: 80%
Using altitude: ≤ 1000m
Lifting capacity: 7,000lbs/3200kgs
Lifting height: 1755mm
Width between runways: 956mm
20 Container: 12 sets
40 Container: 24sets
