Help CenterDouble-wall Corrugated Pipe Extrusion Line
Related Products
Specifications
Double-wall Corrugated Pipe Extrusion Line, plastic corrugated pipe extrusion line, corrugated pipe extrusion productionUsage:
Double-wall Corrugated Pipe Extrusion Line, plastic corrugated pipe extrusion line, corrugated pipe extrusion production

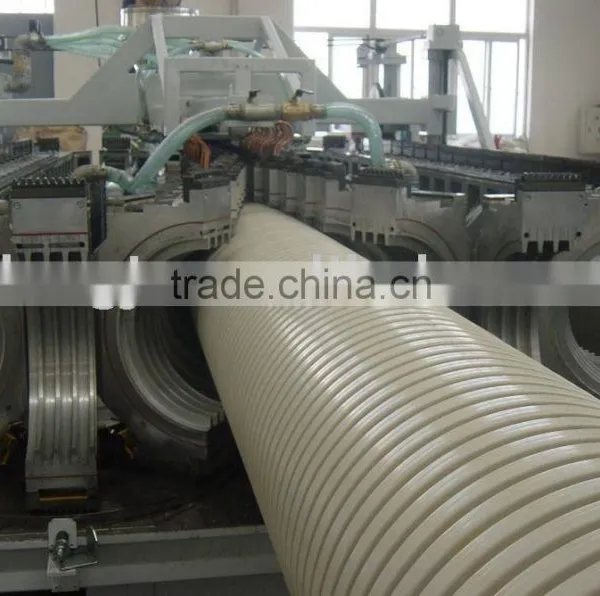

It is fully computer controlledautomatic production lineΦ200-Φ600. It has features of high and stable output capacity, and highly automatic operation. According to the material situation, for HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin screw extruder or parallel twin screw extruder: The forming system of this line consists of mould and corrugators. The mould blocks can be easily changed and they are equipped with air or water cooling system. The production line can also be equipment with Siemens company logic control system.
Main Technical Parameters:
|
Model Parameters |
BW-1V series |
BW-1VA series |
Power |
11kw |
15kw |
Mould Specification |
Φ200mm~Φ400mm |
Φ300mm~Φ600mm |
Mould Material |
Special aluminum alloy |
Special aluminum alloy |
Mould Perimeter |
7 m |
7 m |
Mould cooling way |
Air cooling |
Air cooling |
Production Speed |
0.5m~2m/min |
0.5m~2m/min |
Production Material |
PVC/HDPE |
PVC/HDPE |
Main Machine |
Twin-screw extruder/ single screw extruder |
Conical twin-screw extruder/single screw extruder |
