Parking System Car Lift Table

Specifications

Common faults and maintenance methods:

2 post car parking lift

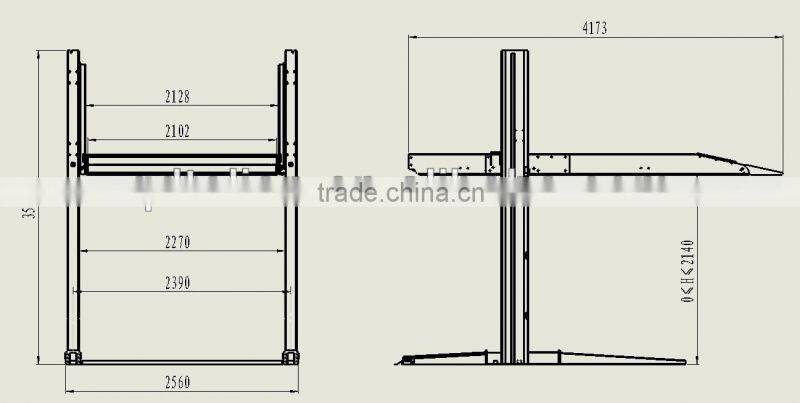

Drawing:

Specifications

Advantage of PTJ 201-27

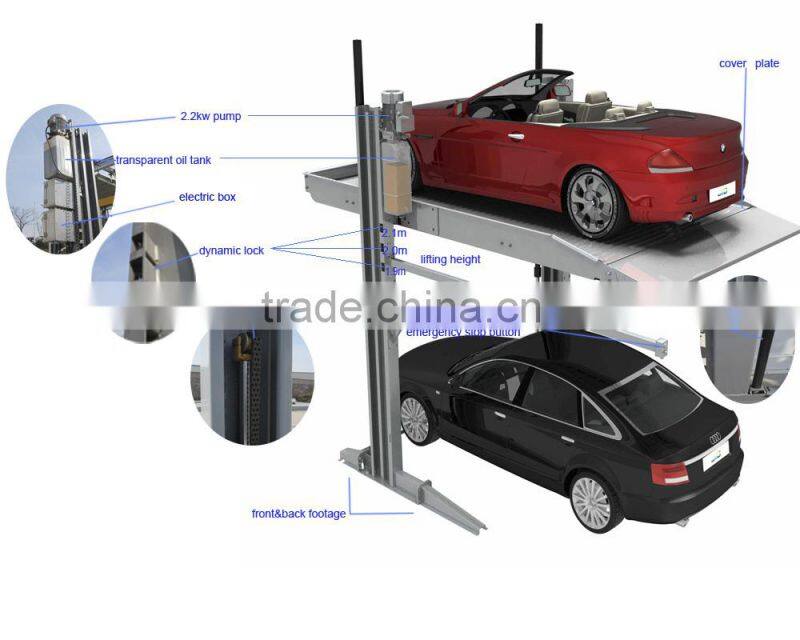

1. Protective device

a. anti-dropping device: to prevent the vehicle loading pallet from undersired disconnection

b. limited switch device: to prevent the equipment running

c. photoelectric switch (device for checking the entrance of people and vehicles): to prevent the people from accidently entering into the equipment under operation.

d. emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.

     2 .Oil cylinder

Used cylinder reversal, have many advantages, not distortion, dustproof.

Adopt Italy Aston Seal ring.

   3. Adjusting lifting height, the maximum lifting height can be 2200mm. Usually, lifting height is 1900mm, 2000mm or 2100mm.

   4.  Lifting capacity can be 2700kgs

   5. Structure all adopts layer cutting, attractive appearance, easy installation, less questions, easy maintenance.

   6. Vehicle loading pellet is 2100mm,usually loading pallet is only 2000mm

Production Description:

This parking system is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out;

It can be widely used in hotels, enterprises and public institutions and residential area. Column can be N+1 form, saving land area, full use of space, property rights;

Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall’;

Low noise, smooth operation, save energy, low carbon and environmental protection;

Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow

Polluting the lower vehicles;

Spraying plastics, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics;

Simple structure, easy installation, minimal requirements for civil engineering;
