Portable Two Parking Lift for Car

Portable Two Parking Lift for Car thumbnail-1
Portable Two Parking Lift for Car photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Carport
Height (mm):
4173
Width (mm):
2560
Contact Supplier Request Quote Chat Now
Qingdao Telian Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Carport
Height (mm) 4173
Width (mm) 2560
Place of Origin Shandong, China
Brand Name Telian
Model Number PTJ 201-27
Warranty 1 Years

Specifications

1Multiple protective device,much safer
2Adopt layer cutting,more professional
3two post double parking car lift




Product  Description

Two post double parking car lift  is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.

·Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall.

·Low noise, smooth operation, save energy, low carbon and environmental protection.

·Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow.

·Spraying plastics, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics.

·Simple structure, easy installation, minimal requirements for civil engineering.

Name

Two Post Parking Lift

Model

PTJ 201-27

Dimension

4560*2560*3500mm

Weight of parking car

2700KG

Rated speed

2m/min

Motor

2.2kw

Warming devices

Yes

Mode of operate

Button / IC card / Remote key

Mode of drive

Hydraulic driving, chain balance

Package size

3850*1000*970mm

20 container

12 set




Our Advantage

1.       Multiple protective device

a.       Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.

b.       Limited switch device: to protect the equipment running.

c.       Photoelectric switch (device for checking the entrance of people and vehicles): to prevent the people from accidently entering into the equipment under operation.

d.       Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.

2.       Oil cylinder

a. Used cylinder reversal, have many advantages, not distortion, dustproof.

b. Adopt Italy Aston Seal ring.

3.       Adjusting lifting height, the maximum lifting height can be 2200mm. Usually, lifting height is 1900mm, 2000mm or 2100mm.

4.       Lifting capacity can be 2700kgs.

5.       Structure all adopts laser cutting, attractive appearance, easy installation, less questions, easy maintenance.

6.       The width of car carrier board is 2100mm.

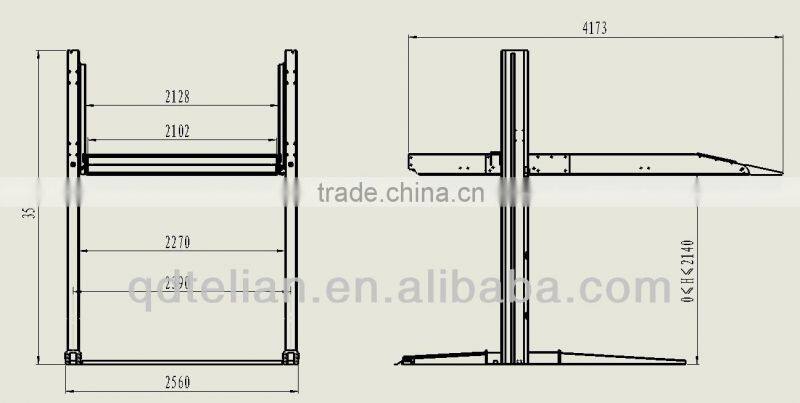

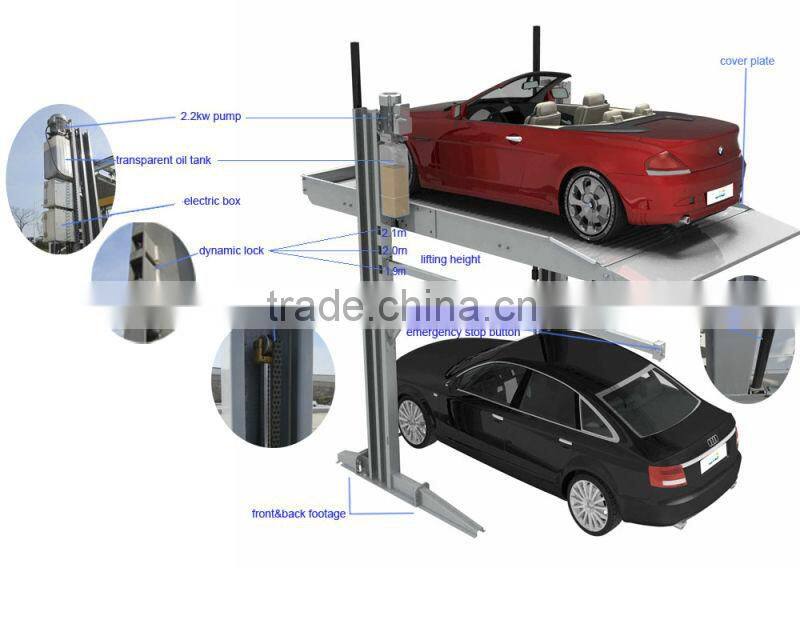

portable two parking lift for car

portable two parking lift for carportable two parking lift for car


Company Information

Qingdao Telian Machinery Co., Ltd. specialize in simple parking equipments, auto lift, parking facilities, shot blasting machines' development and production. Main products are two post parking lift, four post parking lift, tilting parking lift, pit type parking lift, lift-sliding parking equipment, parking locks, road brake etc.

Focusing on quality improvement and technology innovation is our corporate philosophy. We are adhering to the following operating principle of "To Survive with Credit, To Stabilize with Mutual Benefit, To develop with Joint Effort and To Progress with Innovation." We sincerely hope to establish win-win business relationships with you.

 Our Factory

Our Market



portable two parking lift for car


FAQ

1.About  Delivery Term

Q: What's the delivery term for making business with us?

A:Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients.

2.About  Delivery Time

Q:What's the delivery time after placing the order?

A:Usually it takes 15-50 days after we received your down payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.

3.About Payment

Q: what's the payment?

A:By T/T, 50% is paid in advance; balance befor delivery .

4.About Min Order

 Q:What's the min order?

 A:1 set.

5.About Warranty

 Q:What's the warranty?

 A:1 year for free; after sales service for ever.
