Lift Platform

Name: Lift Platform
Brand: Extreme
SKU: 115214029

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Extreme

Model Number:

GTJZ-6,GTJZ-8,GTJZ-10

Zhuhai Extreme Aerial Working Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ZHUHAI PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Extreme

Model Number GTJZ-6,GTJZ-8,GTJZ-10

Lift Mechanism Scissor Lift

Lift Drive / Actuation Hydraulic

Power 4.5kw

Rated Loading Capacity 350kg-450kg

Min. Lifting Height 6.10m

Max. Lifting Height 11.75m

Table Size 2.20mx0.8m 2.25mx1.0m 2.25mx1.0m

Weight 1800kg-2400kg

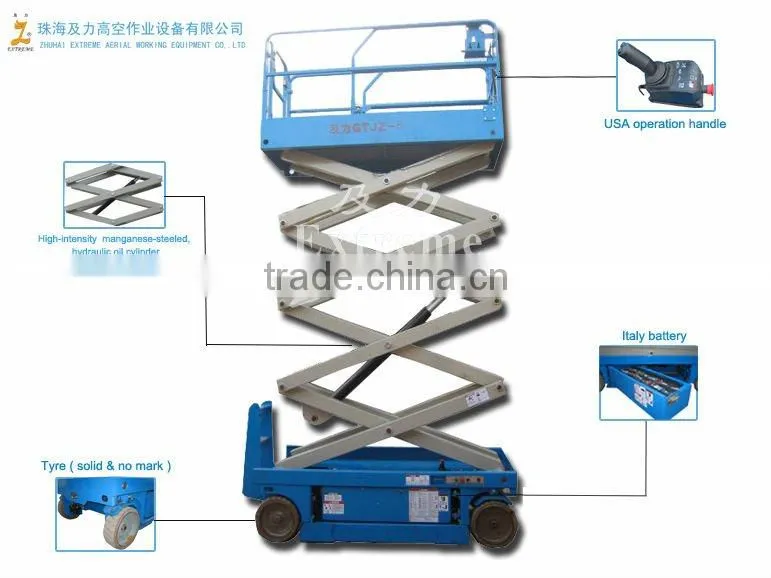

Self-propelled scissors lifting machine

portable lift platform

its advantage,small size,light weight,easy to delivery,steady to lift and down,small swing scope,big carrying capacity.

Very convenience to go in and out common door and elevator.

Use optional as power supply,or manual lift and down.Convenience to operate.

code	GTJZ-6	GTJZ-8	GTJZ-10
Platform height(m)	6.10 m	7.92m	9.75 m
Platform size(m)	8.10 m	9.92 m	11.75 m
Extention length(m)	2.20 m x 0.8 m	2.25 m x 1.0 m	2.25 m x 1.0 m
Guardrail height(m)	0.80 m	0.80 m	0.80 m
storage size(m)	1.0 m	1.10 m	1.10 m
Wheelbase(m)	2.45 m x0.81 m x 1.70 m	2.50m x 1.18m x 1.80m	2.50m x.1.18m x1.80m
Height form base to ground(m)	1.85 m	1.85 m	1.85 m
Chasm protection board	0.089 m	0.089 m	0.089 m
carrying capacity(m)	450 kg	350 kg	350 kg
Extention platform carrying capacity(kg)	115 kg	115 kg	115 kg
Biggest dtive speed(kw/h)	3.5 km/h	3.5 km/h	3.5 km/h
Raise/drop speed(m/s)	0.25 m/s	0.25 m/s	0.25 m/s
Climb slope capability	25%	25%	25%
Turn semidiameter(m)	2.50 m	2.50 m	2.50 m
Machine weight(kg)	1800 kg	2000 kg	2400 kg
	steady,single hand scale sticks
Drive	double front-wheel hydraulic pressure motor
stay brake	Two casters spring brake,Hydraulic prdeeure and manual release
Tyre(solid & no mark)	12Inch-15Inch no mark tyre

Motivity source(battery)	4 x 6v215Ah
Hyraulic pressure system capacity(kg)	20-25 L
