Overview

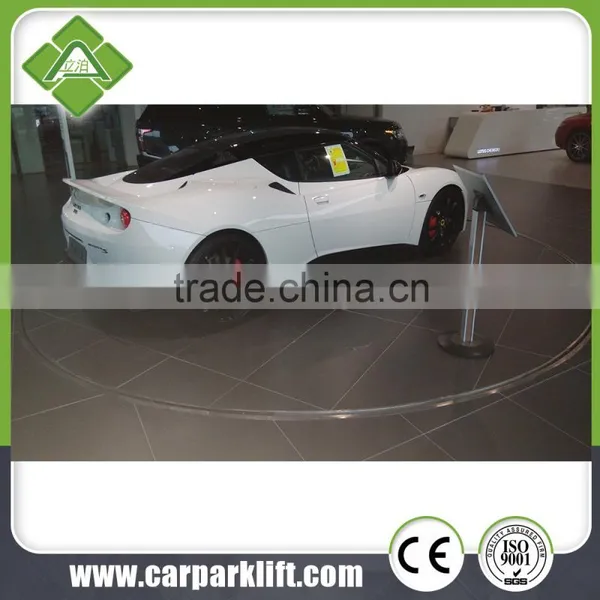

TELIAN car turntable is built to a unique design that provides a stable, high capacity rotating platform.

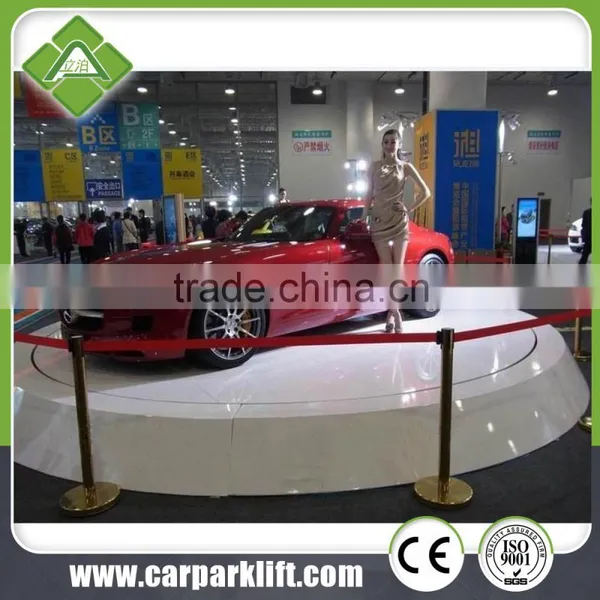

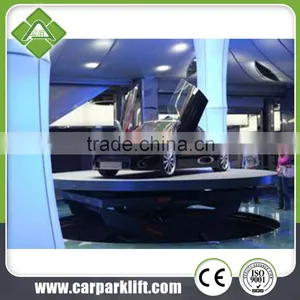

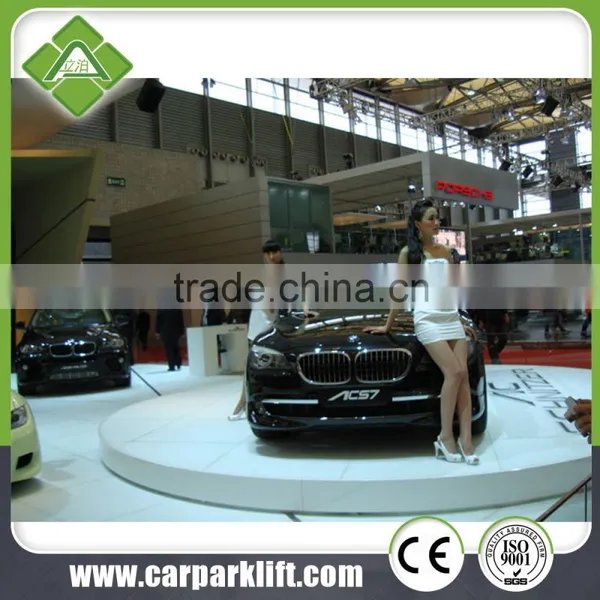

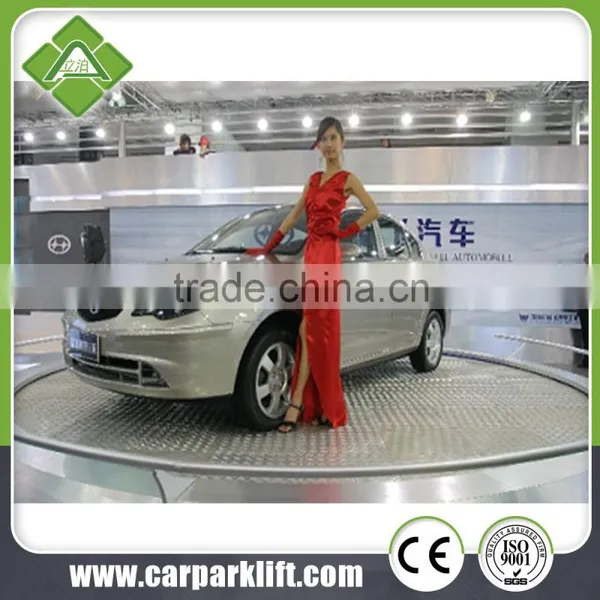

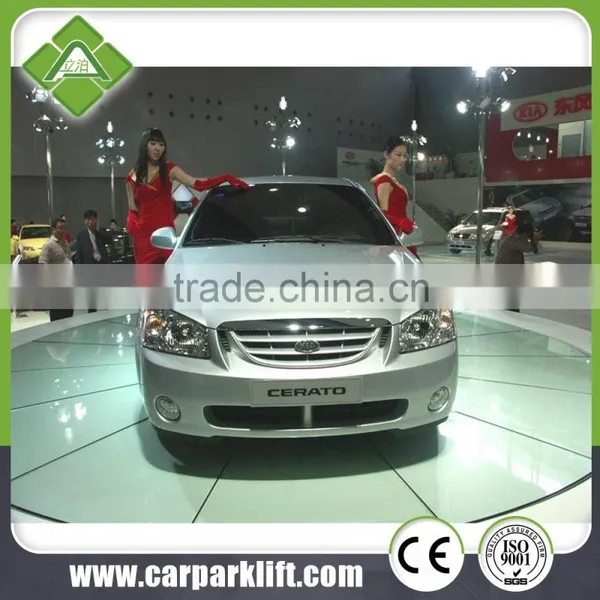

In the automotive and exhibition environment, movement adds a dynamic dimension to any automotive display. TELIAN car turntable can create impressive product launches or reveals by moving the audience or the merchandise as required, helping to draw attention to your product and increase sales.
Revolving stages
TELIAN revolving stage is built to a unique design that provides a stable, high capacity rotating platform. In the retail and exhibition industries movement adds a dynamic dimension to product displays, and for the events, film and TV industries a Movetech UK revolving stage can create spectacular film sequences and impressive product launches or reveals by moving the audience or the merchandise as required.

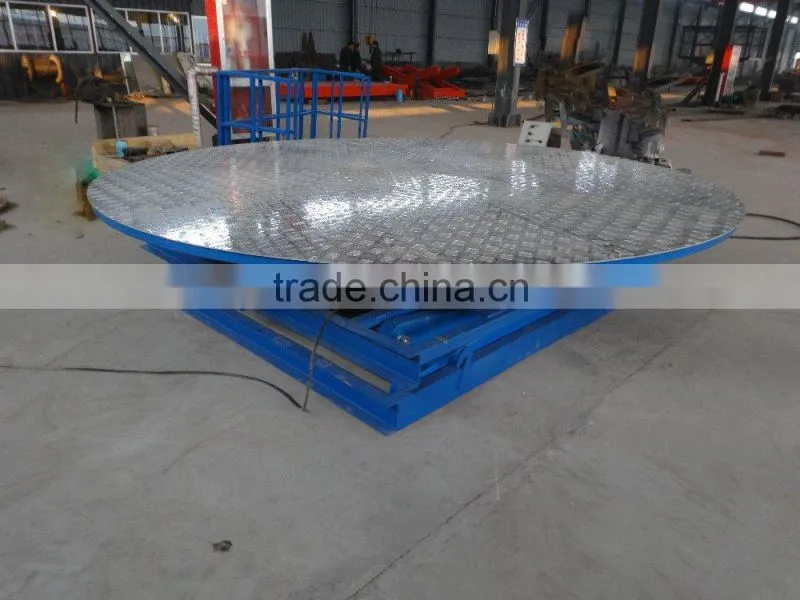

The turntable's diameter, thickness, lifting capacity, speed can be totally customized according to your requirement, welcome to enquirs for Use

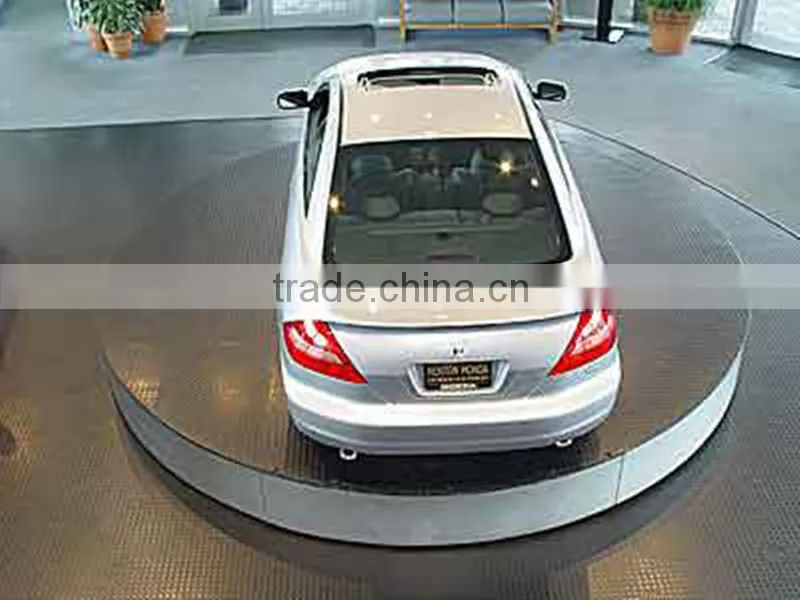

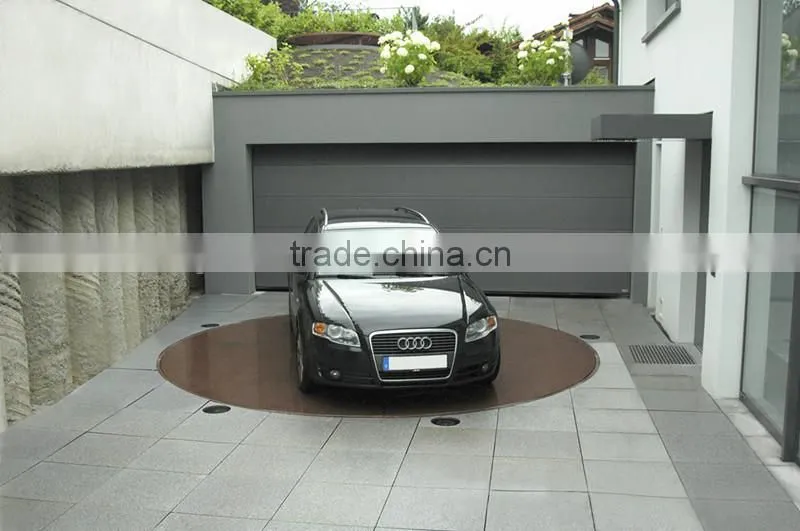

* Used where the car with the confind space which can not make a turn or for showroom purpose;
* The range of rotation: 0° - 360° designed as required ;
* Automatic or manually control of rotation;

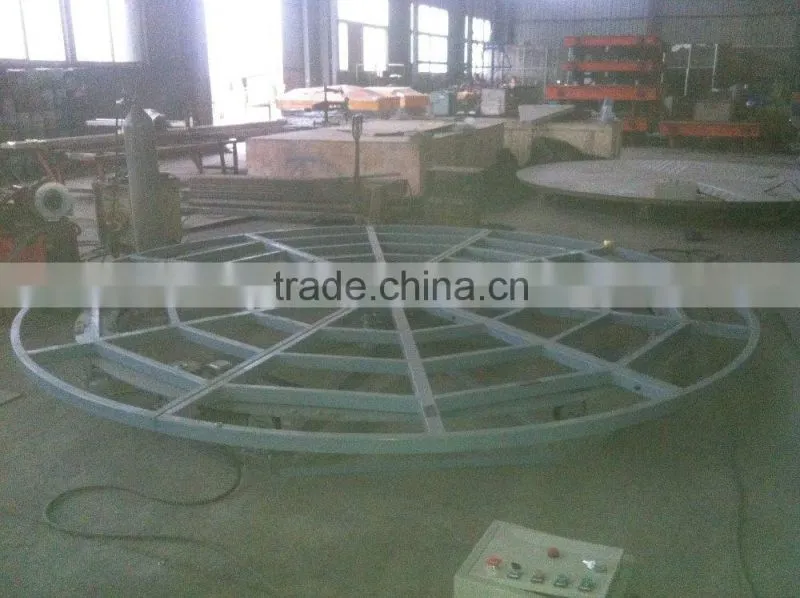

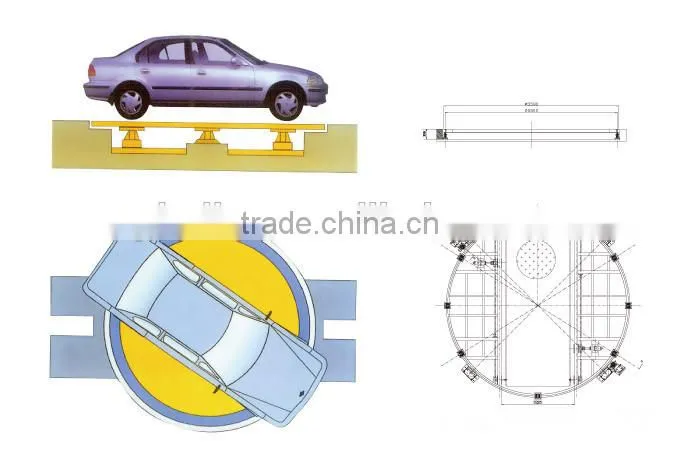

* Inner gear type driving mode ensured the system could be used as long life.
* High quality of the electrical parts and other accessories equipped this very cost-effectively products.
* Engineering requirement
Reinforced concrete pit is a must beforehand;
Drainage pipes wire ducts must be set beforehand in the pit
Diameter |
4m |
4.5m |
5m |
5.5m |
6m |
7m |
ZX height |
18-20cm |
18-20cm |
18-20cm |
18-20cm |
18-20cm |
18-20cm |
ZM height |
31-33cm |
31-33cm |
31-33cm |
31-33cm |
31-33cm |
31-33cm |
Load-bearing |
2000kg |
2500kg |
3000kg |
3500kg |
4000kg |
5000kg |
Rotate speed |
0.2-1rpm |
0.2-1rpm |
0.2-1rpm |
0.2-1rpm |
0.2-1rpm |
0.2-1rpm |
Power |
0.36-1.5kw |
0.36-1.5kw |
0.36-1.5kw |
0.36-1.5kw |
0.36-1.5kw |
0.36-1.5kw |
Voltage |
220v,50hz/380v,50hz |
|||||
Platform material |

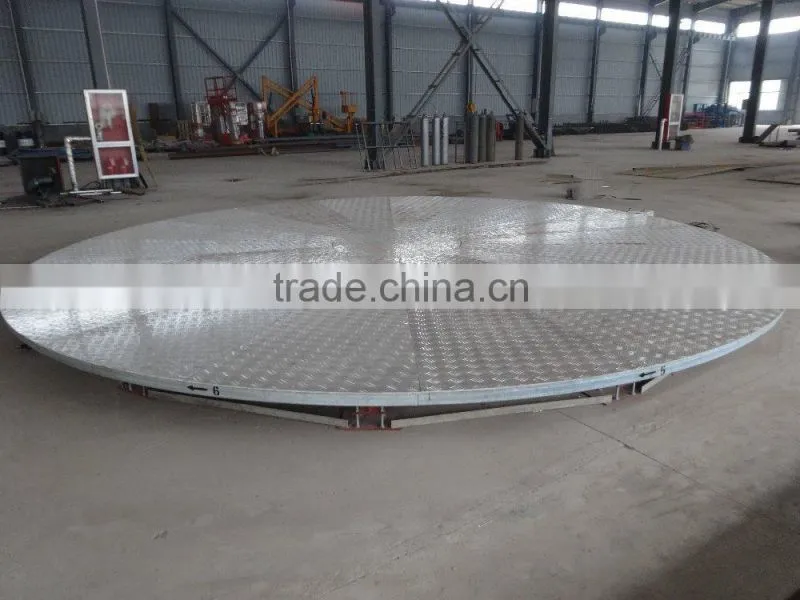

22mm density board/4-8mm plate/6mm aluminum alloy plate |
|||||
Control |
stop control/remote control/rotate angle control |
|||||
Surface treatment |
hot galvanizing/epoxy anticorrosive paint |
|||||

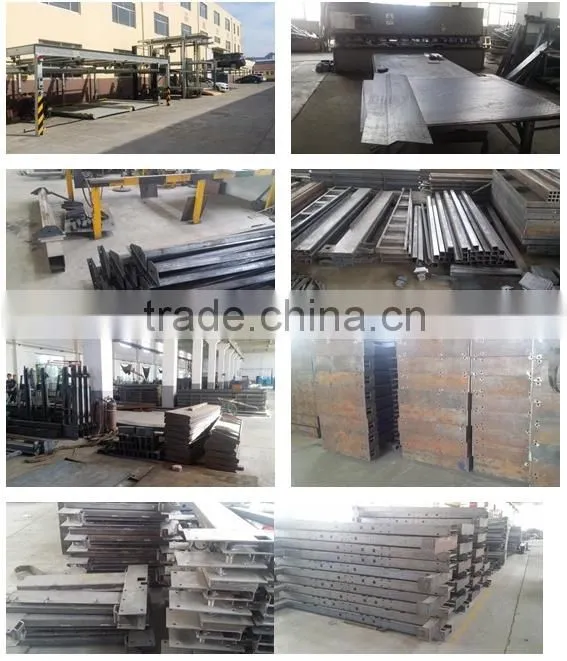

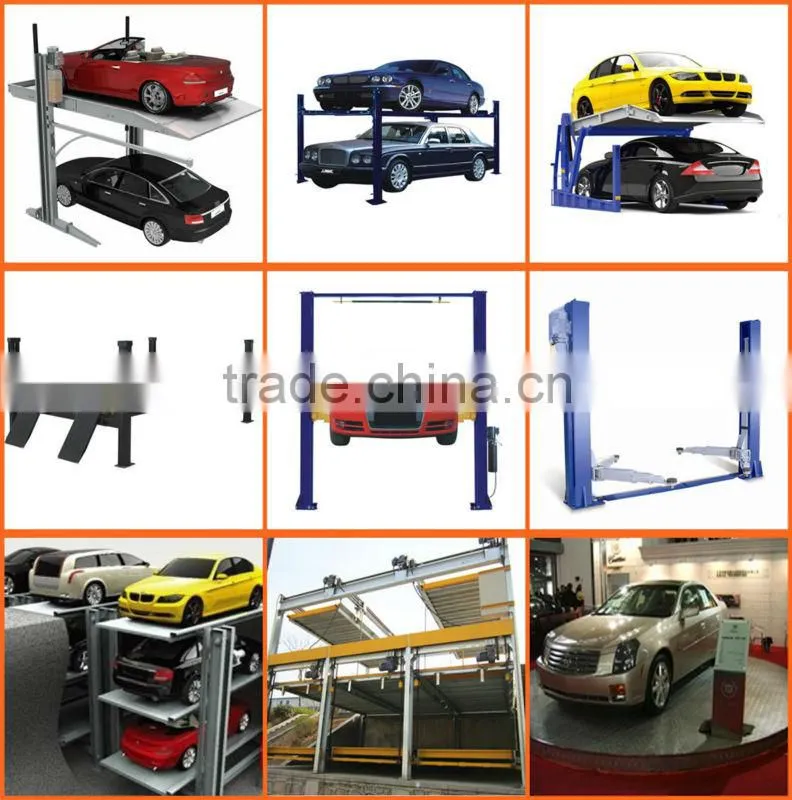

Qingdao Telian Machinery Co., Ltd. specializing in simple parking equipments, auto lift,
parking facilities, shot blasting machines' development and production. Main products are
two post parking lift, four post parking lift, tilting parking lift, pit type parking lift, liftsliding
parking equipment, parking locks, road brake etc.
save land area,high rate of land usage, convenient installation, low noisy.
Parking systems adopt different site conditions.
