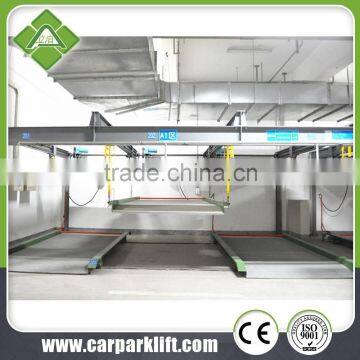

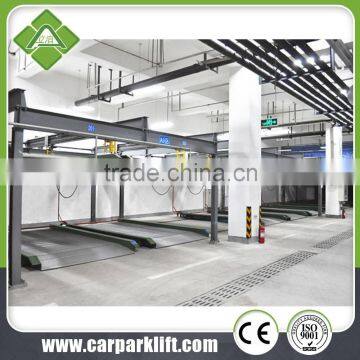

two level automatic puzzle double parking car lift is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first level and all the spaces can slide automatically except the spaces in the top level. When a car needs to park or release, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go in and out easily.
Low area coverage and high usage rate of space. The levels and rows may be designed according to the customer’s requirements.
The whole system is adopted galvanized anti-corrosion treatments.
It operates steadily without noise and with fast operating speed and short parking and releasing time.
Multi-channel safety protection and series of safety protection devices for anti-fall, anti-crashing and anti-overloading.
Automatic control system has fault diagnosis and display for a quick troubleshooting.
Name |
Lift-sliding Lifting Parking System |
Model |
PSH-D.TLA |
Dimension |
5000*1850*1550mm |
Weight of parking car |
≤2T |
Lifting motor power speed |
2.2 kw/3.7kw, 5–7m/min; |
Sliding motor power speed |
0.2kw ,6-8m/min |
Malfunction indication |
Fault diagnosis by computer, liquid crystal display |
Mode of operate |
Button / IC card |
Mode of control |
PLC control |
Mode of drive |
Motor |
Electrics |
380v,3 phase |
TWO LEVEL:
3-LEVEL:
