The Intelligent Lift-sliding Home Parking System

The Intelligent Lift-sliding Home Parking System thumbnail-1
The Intelligent Lift-sliding Home Parking System photo-1
US$ 2,500 - 2,600 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Parking Lift
Height (mm):
5000
Width (mm):
1850
Contact Supplier Request Quote Chat Now
Qingdao Telian Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Parking Lift
Height (mm) 5000
Width (mm) 1850
Place of Origin Shandong, China
Brand Name Telian
Model Number PSH-D.TLA
Warranty 1 Years

Specifications

1.Multi-channel safety protection and series of safety protection devices for anti-fall, anti-crashing and anti-overloading

Production Description

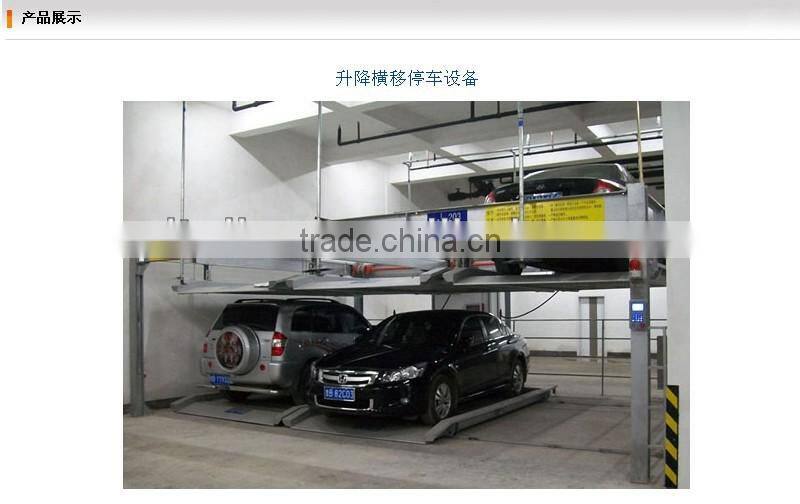

The equipment is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first level and all the spaces can slide automatically except the spaces in the top level. When a car needs to park or release, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go in and out easily.

Low area coverage and high usage rate of space. The levels and rows may be designed according to the customer’s requirements;

The whole system is adopted galvanized anti-corrosion treatments;

It operates steadily without noise and with fast operating speed and short parking and releasing time;

Multi-channel safety protection and series of safety protection devices for anti-fall, anti-crashing and anti-overloading;

Automatic control system has fault diagnosis and display for a quick troubleshooting.









Name

Lift-sliding Lifting Parking System

Model

PSH-D.TLA

Dimension

5000*1850*1550mm

Weight of parking car

≤2 T

Lifting motor power speed

2.2 kw/3.7kw, 5–7m/min;

Sliding motor power speed

0.2kw ,6-8m/min

Malfunction indication

Fault diagnosis by computer, liquid crystal display

Mode of operate

Button / IC card

Mode of control

PLC control

Mode of drive

Motor

Electrics

380v,3 phase



 The Intelligent Lift-sliding Home parking system
