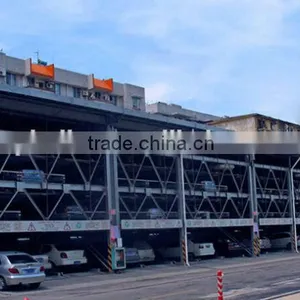

Help CenterCommercial Car Parking Lift System/basement Parking Lift
Related Products
-
Multi-level Lift Sliding Smart Car Parking SystemNegotiableMOQ: 1 Unit -
Multi-level Lift Sliding Smart Parking System/High Quality Parking System ProjectNegotiableMOQ: 1 Unit
-
Multi-level Lift Sliding Smart Parking System/Parking Building SystemNegotiableMOQ: 1 Unit
-
Multi-level Lift Sliding Smart Parking SystemNegotiableMOQ: 1 Unit
-
Puzzle Parking Equipment, PLC Control Parking System, Lift-sliding Parking SystemUS$ 2,000 - 2,400MOQ: 1 Set
Specifications
1.Multi-level lift sliding parking systems2.CE certification
3.Commercial car parking lift system/basement parking lift

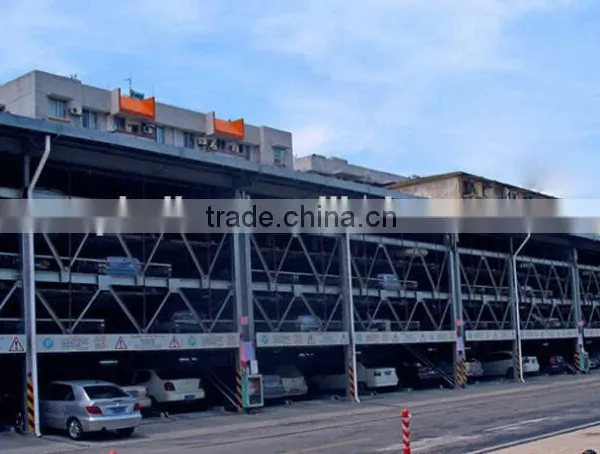

Commercial car parking lift system/basement parking lift is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first level and all the spaces can slide automatically except the spaces in the top level. When a car needs to park or release, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go in and out easily.
Low area coverage and high usage rate of space. The levels and rows may be designed according to the customer’s requirements.
The whole system is adopted galvanized anti-corrosion treatments.
It operates steadily without noise and with fast operating speed and short parking and releasing time.
Multi-channel safety protection and series of safety protection devices for anti-fall, anti-crashing and anti-overloading.
Automatic control system has fault diagnosis and display for a quick troubleshooting.
Brand Name |
Telian |
Model No. |
TLA-psh1-8 |
Type |
Full Automated Mechanical Puzzle Car Parking System ( 1-8 Levels ) |
Mode of Operations |
LCD/IC card/Manual |
Car Capacity |
≤2000kgs; ≤2500kg |
Mode of drive |
Hydraulic+Chain / Motor+Steel Rope |
Car Size (L×W×H) |
5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm |
Lifting speed |
4KW 8-12m/min / 2.2KW 5.6m/min |
Warning device |
Yes |
Safeguard device |
Hydraulic whole protection and anti-fall frame Anti-fall frame (our patent) |
Rise Time |
50s |
Fall Time |
40s |
Work Noise |
< 80dB ( A ) |
Voltage |
220V/240V/380V (Customized According to demand) |
Motor Power |
2.2KW |
Maximum Working Pressure |
16 MPa |
Malfunction Indication |
Fault diagnosis by computer, liquid crystal display |
Treatment |
Zinc spray and paint or Hot dipped galvanized (Optional) |
Color |
Red, Blue, Grey, Yellow etc. ( customized according to user demand ) |
Certification |
ISO9001 and CE |
Two Level:
Multi-level:
Just tell me how many floors you need,the size of ground and how manys cars you want to park,then we can give you the available information . We are dedicated to make your own parking equipment according to your requirements.
1.About Delivery Term
Q: What's the delivery term for making business with us?
A:Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients.
2.About Delivery Time
Q:What's the delivery time after placing the order?
A:Usually it takes 15-50 days after we received your down payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
3.About Payment
Q: what's the payment?
A:By T/T, 50% is paid in advance; balance befor delivery .
4.About Min Order
Q:What's the min order?
A:1 set.
5.About Warranty
Q:What's the warranty?
A:1 year for free; after sales service for ever.
