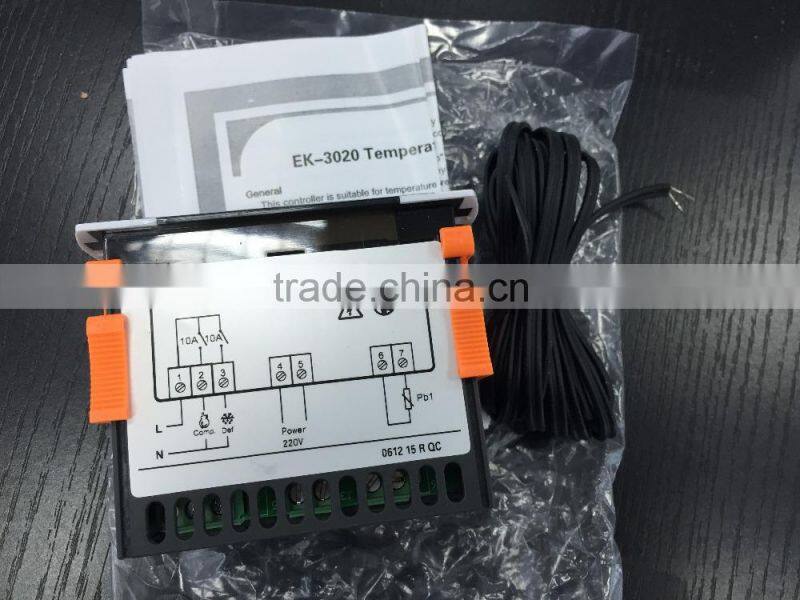

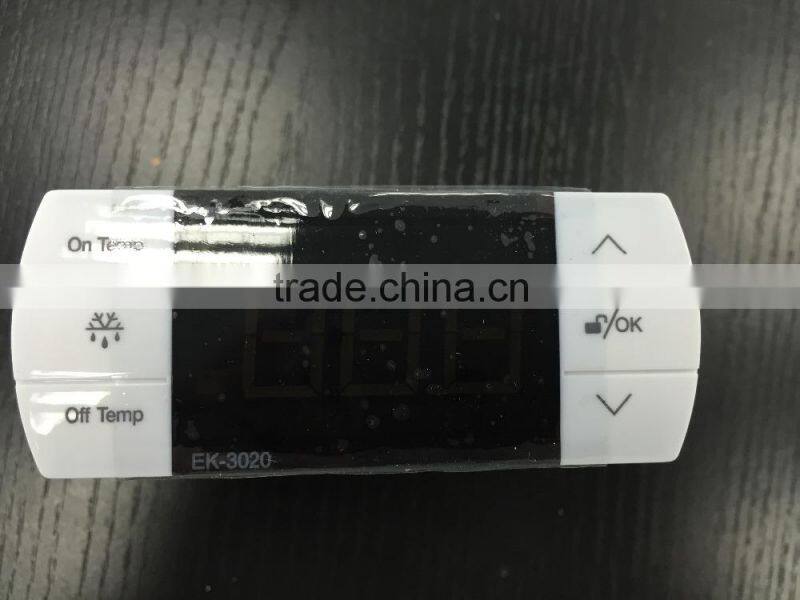

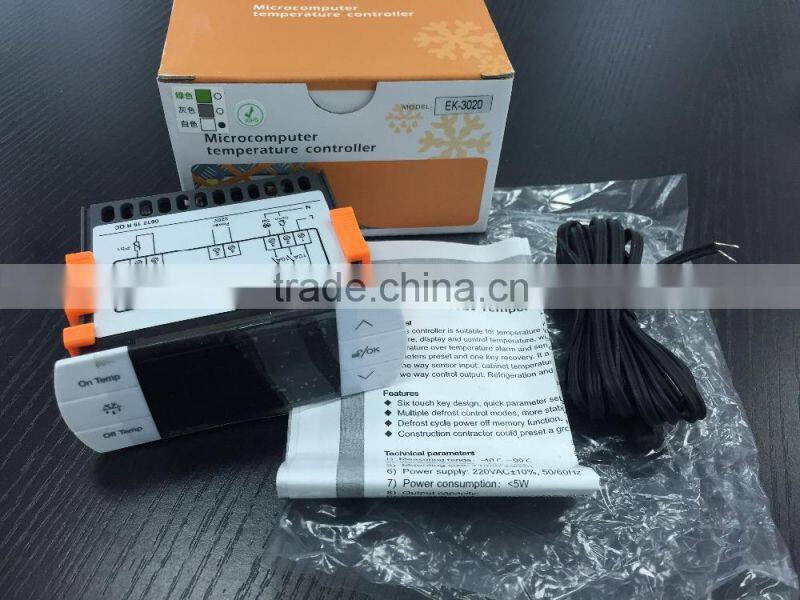

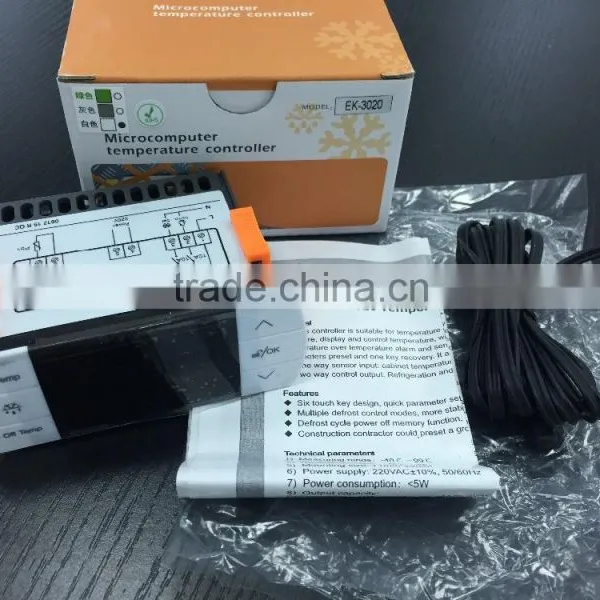

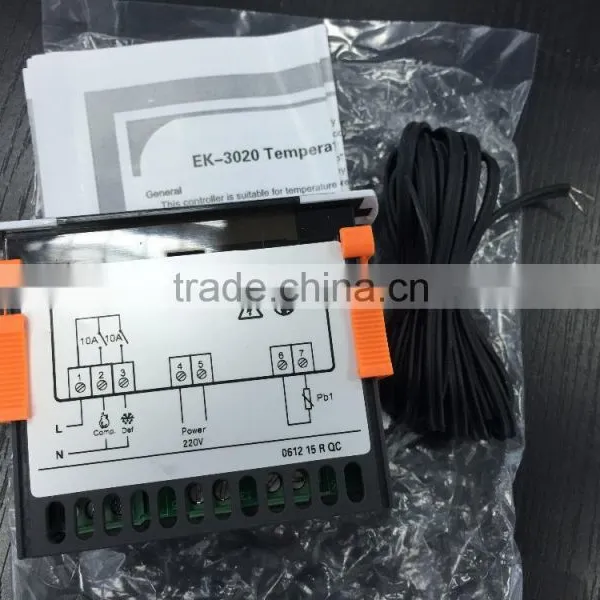

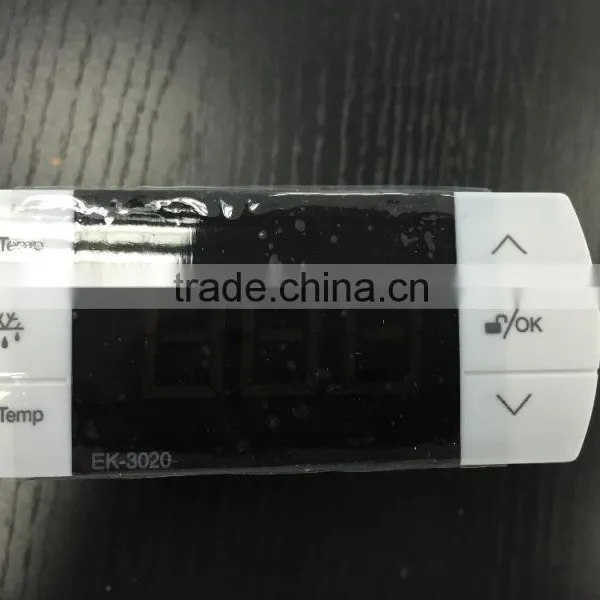

EK-3020 Digital Temperature Controller
General:
This intelligent temperature controller is suitable for temperature control of the middle and low temperature cold storage.
It could measure, display and control temperature, with the function of temperature calibration, forced defrost and temperature over temperature alarm and sensor failure alarm, one key recovery of the factory default value, parameters preset and one key recovery. It adopts touch key design with the key lock function.
One way sensor input: cabinet temperature sensor(Pb1)
Two way control output: Refrigeration and defrost.
Features:
u Six touch key design, quick parameter setting, easy operation.
u Multiple defrost control modes, more stable and energy saving, avoid cold storage swell.
u Defrost cycle power off memory function.
u Construction contractor could preset a group of parameters, with one key recovery function.
Technical parameters:
1) Measuring range:-40℃~99℃
2) Controlling range:-40℃~85℃;
3) Accuracy:-30℃~50℃,±1℃±0.5dig; others, ±2℃±0.5dig
4) Resolution:0.1℃ / 1℃
5) Mounting size: 71mm*29mm
6) Power supply: 220VAC±10%, 50/60Hz
7) Power consumption:<5W
8) Output capacity:
Refrigeration:10A/220VAC or 16A/220VAC(directlydrive a singlephasecompressor 1HP)
Defrost:10A/220VAC
One way buzzer alarm output
9) Work ambient temperature: -5℃~60℃;work ambient humidity:10%~90% non condensing
10) Storage temperature:-25℃~75℃
11) Senor type: NTC(10KΩ/25℃,B value 3435K)
12) Sensor length: 2M
