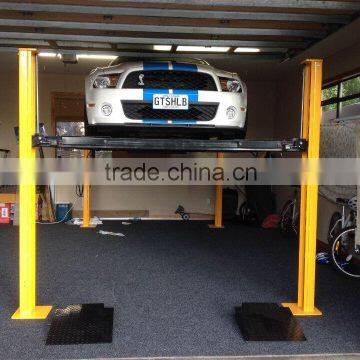

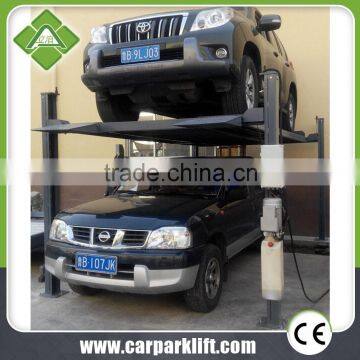

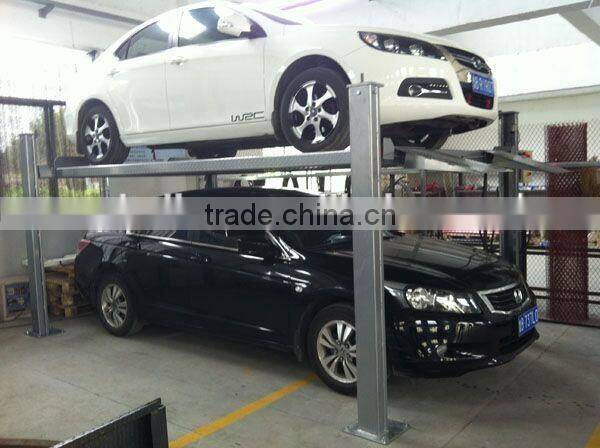

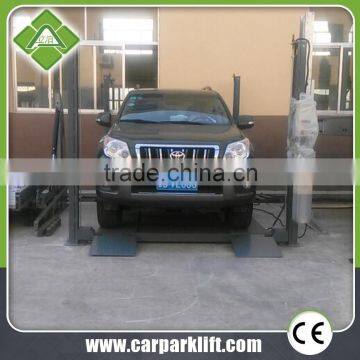

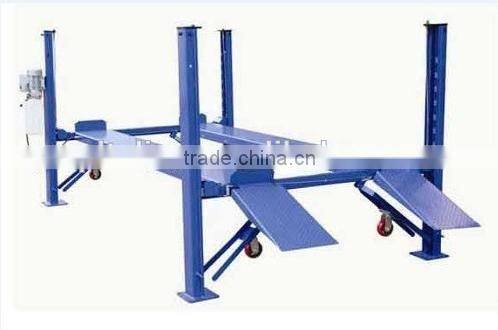

This parking system is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
FEATURES:
* Hydraulic cylinder driving the wire ropes to ensure the synchronization of the four posts movements.
* Original Italy ASTON hydraulic seals to keep it without oil leakage during the operation.
* Smooth operation with less noise which is good for environmental protection and energy saving.
* Vehicle carrying board fully enclosed design to avoid contaminating the ground car with oil leakage, rain and snow.
* Spraying plastics, high anti-corrosion ability and endurable.
* Electrical and driving parts are with waterproof type to ensure the safe operation in any condition.
* All of the following safety devices provide you a safer and better operating experience which include Anti-falling lock, Limit switch, optoelectrics swich and emergency stop etc.
SPECIFICATION:
| Lifting cap | ≤ 3200 | kg |
| Parking cars | 2 | pcs |
| Lifting mode | Hydraulic drive +wire rope | |
| Voltage | 220V/380V 50Hz 1 Phaze/3 phazes (customized) | V |
| Control voltage | AC24 | V |
| Lifting speed | 1.5 | m/min |
| Falling speed | 1.8 | m/min |
| Demision | 4925*2778*2332 | mm |
| Track size | 473*4700 | mm |
| Weight | 850 | kg |
| Lifting height | 2000 | mm |
| Motor | 2.2 | kw |
| Unlock mode | Electrical / Mannual unlock |
|
| surface treatment | Galvanized / Powder coated |

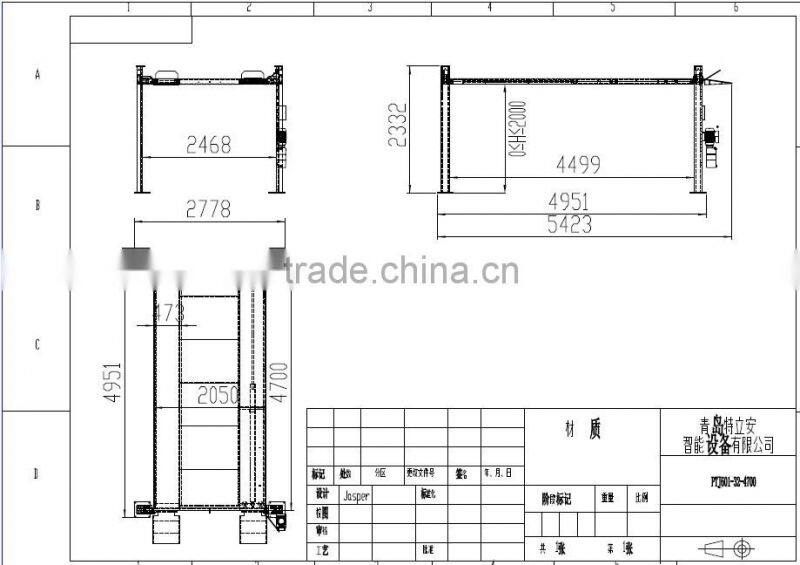

DRAWING:
As the most reputable parking lift supplier in China, Qingdao Telian Machinery Co., Ltd is committed to offer the most suitable and cost effective parking system solutions to you.

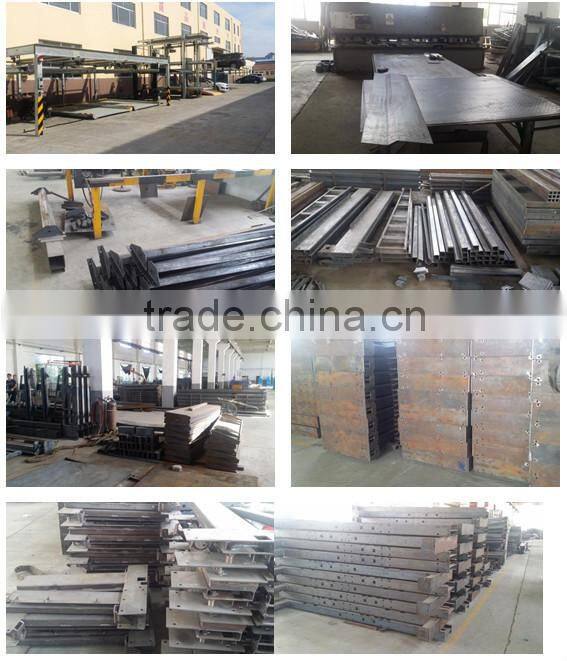

Qingdao Telian Machinery Co., Ltd specializing in simple parking equipment, main products are two post parking lift, four post parking lift, tilt parking lift, puzzle parking equipment, pit parking equipment and so on.
OUR CLIENTS:
A: The most obvious difference is the quality. "Quality first" as the first concept of corporate culture was established in every employer's mind.
Q: How can we trust you and your product?
A: You don't because of you never heard about us and have a lot of questiones which can't put yourself settled. in this case we are kindly invite you to be our guest for the local visiting. and you will trust us and our products once we make deal.
Q: Where is your profit if you have both the better quality and the better price?
A: In the present stage, the better profit is not what we are targeting, what we are more focus on is to have the cooperative partner which can trust each other so as to have better, longer and more efficient bussiness in future.
Q: How is your maintenance service?
A: We are offering you 5+1 years warranty. 5 years main structure and 1 year for the other accessories. within this period, we can offer you the service or spares free of charge. What is more, our product was designed and modified to be more endurable and less maintenance required.
