Hydraulic Four Post Car Parking Lift Garage Kits For Sale
- 5000 Set / Sets per Month
- Qingdao
- T/T
Product Details
Design: | Four Post | Type: | One Cylinder Hydraulic Lift | Certification: | CE |
Lifting Capacity: | 3200KG | Lifting Height(mm): | 2000mm | Overall Width(mm): | 2778mm |
Place of Origin: | Shandong, China | Brand Name: | Telian | Model Number: | PTJ601-32-4700 |
Warranty: | 5 Years |
Product Description
PTJ-601-32-4700
This parking system is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
Product Description:
* Hydraulic drive, wire chain balancing device to ensure the balance both ends of rise and fall;
* Less noise, smooth operation, save energy, low carbon and environmental protection
* Vehicle loading pallet fully enclosed design, to prevent the lower vehicles from oil leakage, rain and snow etc.
* Spraying plastics coated, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics.
* Simple structure, easy installation, minimal requirements for civil engineering.
* It can be widely used in hotels, enterprises and public institutions and residential area
Specification:
Name | Four Post Parking Lift |
Model | PTJ 601-32-4700 |
Dimension | 5423*2778*2332mm |
Weight of parking car | 3200kg |
Rated speed | 2 m/min |
Lifting height | 2000mm |
Total height | 2332mm |
Width of post | 2778mm |
Motor | 2.2kw |
Emergency stop | Applicable |
Mode of operate | Local Button / Remote key |
Mode of control | Hydraulic drive with PLC control |
Mode of drive | Hydraulic driving, chain balance |
Motor power | 380v,3 phase; 220v single phase |
Package size | 4700*630*630mm |
Weight | 850kg |
20 ft container load | 10 sets |
40ft container load | 20sets |
Drawing:

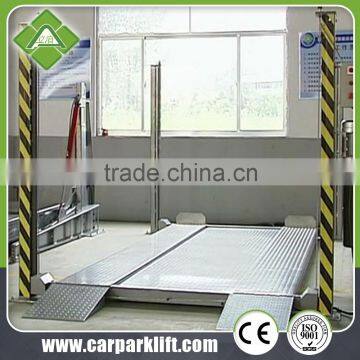

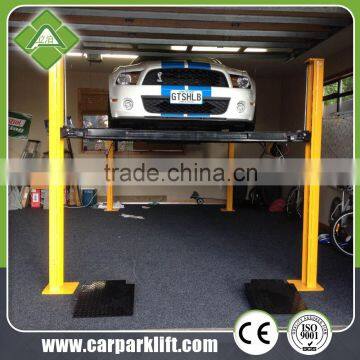

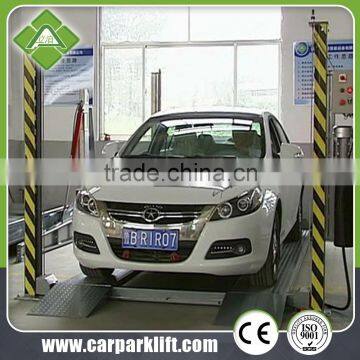

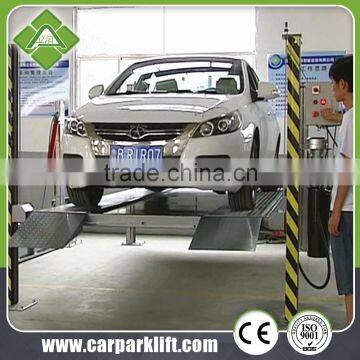

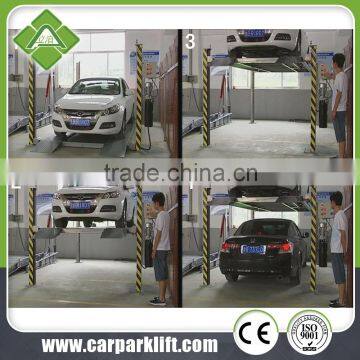

Product Picture:
Qingdao Telian Machinery Co., Ltd. specializing in simple parking equipments, auto lift,
parking facilities, shot blasting machines' development and production. Main products are
two post parking lift, four post parking lift, tilting parking lift, pit type parking lift, liftsliding
parking equipment, parking locks, road brake etc.
Our company is in the fast growing up stage now, and we are focus on the best quality and less profit to make our products very competitive.
Packing :
Q: How many cars could be parked for each set?
A: 2 cars.
Q: Could PTJ601-27-4700 be used for paking SUV?
A: Yes. PTJ601-27-4700 used for parking 2 SUV in vertical.
Q: Is PTJ601-27-4700 used indoor or outdoor?
A: Both of them are avaliable.
Q: What's the MOQ?
A: 1 set. But we are also more than welcome to look for the products distributor or OEM company.
Q: What's the supply voltage?
A: Standard voltage is 220v, 50Hz, 1Phase or 380v, 50Hz, 3Phase. Other voltage could be customized according to clients' request.
Q: Is the installation simple?
A: Yes. Most of structure and parts are pre-positioned in factory. Detailed installation manual and drawing are provided from us. If the project is necessary, we could send our engineer for siteguidance.Just one person could operate the lift by key switch, without any specail training.
Q: What about the installation, is it too complicate for us ?
A: Most of structure and parts are pre-positioned before packing up. And also the installation manualand drawing are provided from us. If the project is required, we could send our engineer for site guidance.
Q:What is your products advantage compare to other company's products?
A: The most obvious difference is the quality. "Quality first" as the first concept of corporate culture was established in every employee's mind.
Q: How can we trust you and your product?
A: You don't because of you never heard about us and have a lot of questiones which can't put yourself settled. in this case we are kindly invite you to be our guest for the local visiting. and you will trust us and our products once we make deal.
Q: Where is your profit if you have both the better quality and the better price?
A: In the present stage, the better profit is not what we are targeting, what we are more focus on is to have the cooperative partner which can trust each other so as to have better, longer and more efficient bussiness in future.
Q: How is your maintenance service?
A: We are offering you 5+1 years warranty. 5 years main structure and 1 year for the other accessories. within this period, we can offer you the service or spares free of charge. What is more, our product was designed and modified to be more endurable and less maintenance required
