CE Used Car Wash Equipment Lift Machine 4.2T

CE Used Car Wash Equipment Lift Machine 4.2T thumbnail-1
CE Used Car Wash Equipment Lift Machine 4.2T photo-1
US$ 968 - 1,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Parking Lift
Height (mm):
3446
Width (mm):
2777
Contact Supplier Request Quote Chat Now
Qingdao Telian Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Parking Lift
Height (mm) 3446
Width (mm) 2777
Place of Origin Shandong, China
Brand Name TELIAN
Model Number QTL0209
Warranty 1 Years

Specifications

Two Post Car Lift
Easy to operate
Automatic stop bar
Automatic arm unlocking
Lifting fast,high-pressure c


FAQ




Product Description

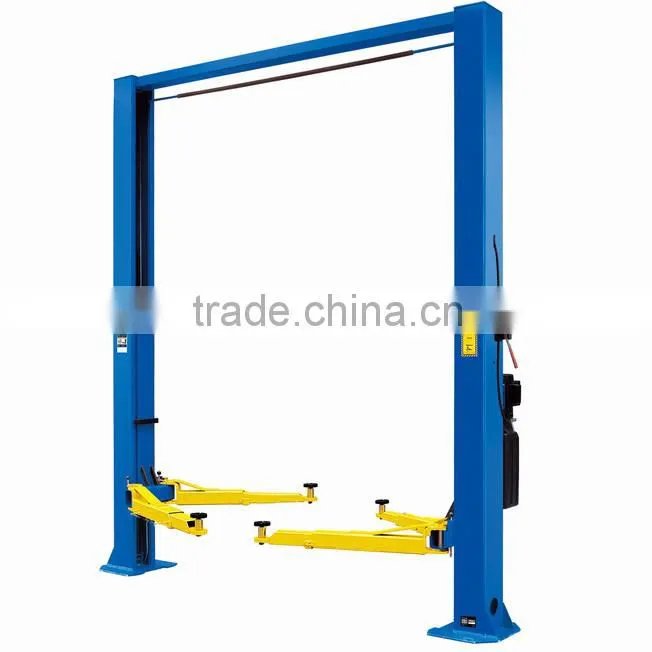

2 Post Car Lift

CE used car wash equipment lift machine 4.2T

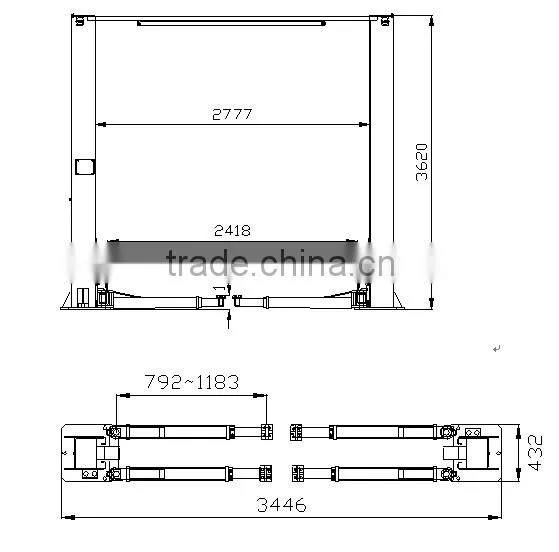

Drawing

CE used car wash equipment lift machine 4.2T

Technical parameter



 Model No.

 Lifting capacity

 Lifting height

 Overall height

 Width between posts

 Rise/drop time

 Power

 QTL0207

 3200kgs/7000lbs

 1800mm

 3620mm

 2777mm

 50/40s

 2.2KW

 QTL0209

 4200kgs/9000lbs

 1800mm

 3622mm

 2777mm

 50/40s

 2.2KW

Features:

  1. Easy to operate
  2. Dual-cylinder two post
  3. Automatic stop bar
  4. Automatic arm unlocking
  5. Lifting fast,high-pressure cylinder
  6. Cable-equalization system
  7. Low energy consumption,low operational noise volume
  8. Automatic stop in the highest position
  9. Extra width between posts,no floor plate
  10. Long life hydraulic power unit
  11. Triplicate safety locks
  12. Plastic powder coat finish

Technical parameter



Working noise :               ≤ 75dB ( A )
Rise time :                        50s
Drop time :                       40s
Working temperature :     -5 °C~ 40 °C
Motor power :                   2.2Kw/220 ~ 380V
Working pressure :           14Mpa
relative humidity :             80%
Using altitude :                 ≤ 1000m
lifting capacity :                 7000lbs/3200kgs
Lifting height :                   1800mm

width between post :        2777mm
Whole height :                   3620mm
Package size :                    1070 × 500 × 3740mm
20 container :                    14 sets
40 container :                    36 sets
