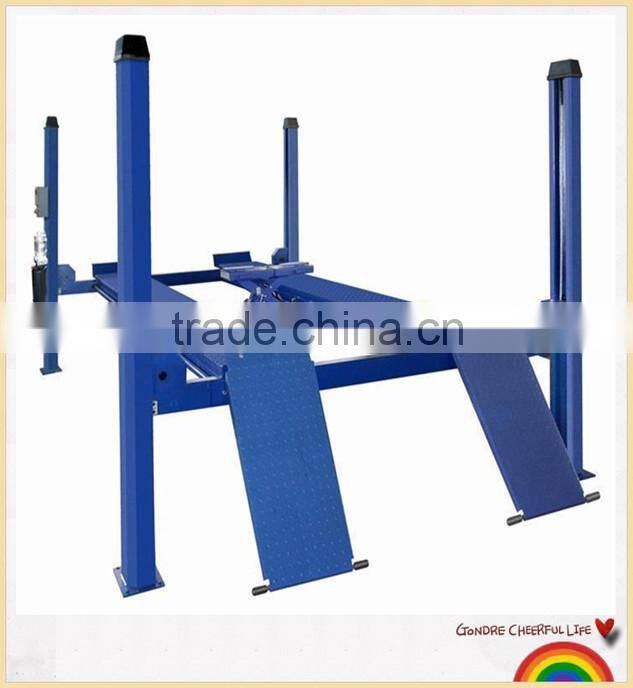

Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Car Lift > 4 Post Lift With Wheel Alignment
US$ 2,600 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Design:
Scissor
Type:
One Cylinder Hydraulic Lift
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Car Lift Motors/car Wash EquipmentUS$ 1,500 - 2,200MOQ: 1 Set -
Car Lift Rolling Jack /Scissor Car LiftUS$ 800 - 1,500MOQ: 1 Set
-
Used 2 Post Car Lift/Two Post Gantry Car Elevator 3200KGUS$ 1,200 - 2,000MOQ: 1 Set
-
Used Gantry Car Parking Lift in ChinaUS$ 1,500 - 2,200MOQ: 1 Set
-
Used Tilt Hydraulic Car Wash Parking LiftUS$ 2,300 - 2,800MOQ: 1 Set
Design
Scissor
Type
One Cylinder Hydraulic Lift
Certification
CE
Lifting Capacity
3200kgs/7000lbs
Lifting Height(mm)
2120mm
Overall Width(mm)
1980mm
Place of Origin
Shandong, China
Brand Name
Telian
Model Number
QTP 607
Warranty
1 Years
Specifications
1.Simple structure, easy installation.2.Conserve Energy.
3.Low carbon and Environmental Protection.
Chain-driven lifting system
Pneumatic single point locks release
Adjustable self-lock system ensures the vehicle safe and balanced at different height
Maintenance free load bearing
Running board inside the runway for other equipments
Adjustable runway for different tread vehicles
120% capacity dynamic load test and 150% capacity static load test
Italian oil seal to make sure no oil leakage
Optional manual pump for lock release in case of power off

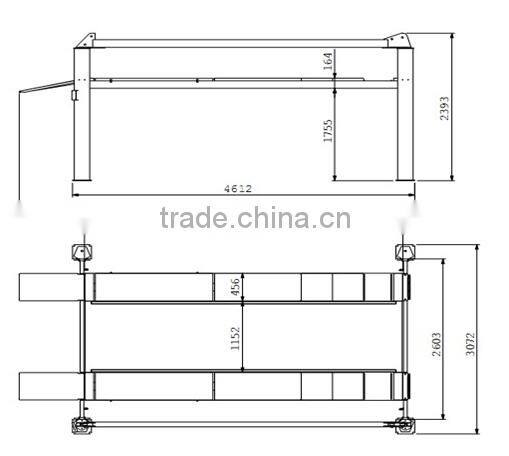

Model No. | Lifting capacity | Lifting height | Width between posts | Width between runways | Rise/Drop time | Power |
QTPA607 | 3200kgd/7000lbs | 1755mm | 2603mm | 982-1150mm | 60/90s | 2.2kw |
| Working noise : | ≤ 75dB ( A ) |
| Rise time : | 60s |
| Drop time : | 90s |
| Working temperature : | below 5 °C - 40 °C |
| Motor power : | 2.2Kw/220 ~ 380V |
| Working pressure : | 14Mpa |
| relative humidity : | 80% |
| Using altitude : | ≤ 1000m |
| lifting capacity : | 7,000lbs/3200kgs |
| Lifting height : | 1755mm |
| width between posts : | 2603mm |
| width between runways | 982-1152mm |
| outer dimensions: | L*H*W : 5332*3072*2393mm |
