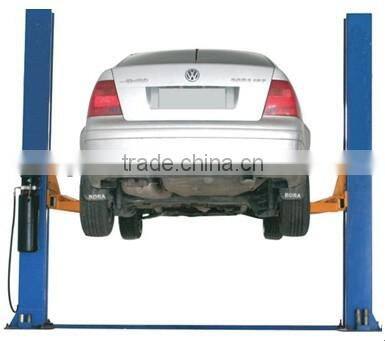

Two Post Floor Plate Hydraulic Lift

Two Post Floor Plate Hydraulic Lift thumbnail-1
Two Post Floor Plate Hydraulic Lift thumbnail-2
Two Post Floor Plate Hydraulic Lift thumbnail-3
Two Post Floor Plate Hydraulic Lift photo-1
Two Post Floor Plate Hydraulic Lift photo-2
Two Post Floor Plate Hydraulic Lift photo-3
US$ 1,068 - 1,380 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Parking Lift
Height (mm):
3352
Width (mm):
432
Contact Supplier Request Quote Chat Now
Qingdao Telian Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Parking Lift
Height (mm) 3352
Width (mm) 432
Place of Origin Shandong, China
Brand Name TELIAN
Model Number QTL207
Warranty 1 Years

Specifications

1.Blance and fast Dual-cylinder lifting system
2.Chain-driven system
3.Automatic safety locks,easy to operate

Features

1.  Blance and fast Dual-cylinder lifting system

2.  Chain-driven system

3.  Automatic safety locks,easy to operate

4.  Low ceiling design

5.  Cable-equalization system

6.  Triplicate safety locks

7.  Plastic powder coat finish

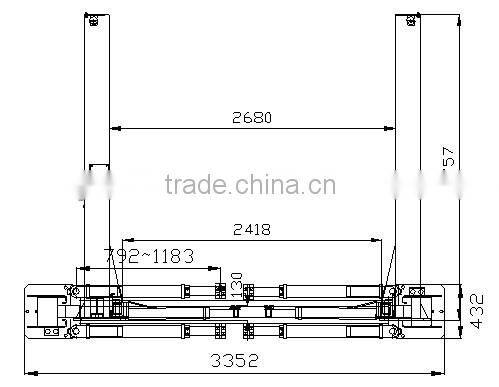

Technical parameter

 Model No.

 Lifting capacity

 Lifting height

 Overall height

 Width between posts

 Rise/drop time

 Power

QTL207

 3200kgs/7000lbs

 1800mm

 2757mm

 2680mm

 50/40s

 2.2KW

 QTL209

 4200kgs/9000lbs

 1800mm

 2759mm

 2680mm

 50/40s

 2.2KW



















Name

QTL207


Two Post Floor Plate Hydraulic Lift

Introduction

Two Post Floor Plate Hydraulic Lift

Features:

Balanced and fast Dual-cylinder lifting system
Chain-driven system
Automatic safety locks,easy to operate
Low ceiling design
Cable-equalization system
Triplicate safety locks

Plastic powder coat finish

Specifications:

Working noise                ≤ 75dB ( A )
Rise time                         50s
Drop time                        40s
Working temperature     -5 °C~ 40 °C
Motor power                   2.2Kw/220 ~ 380V
Working pressure           14Mpa
relative humidity             80%
Using altitude                 ≤ 1000m
lifting capacity                3200kgs/7000lbs
Lifting height                 1800mm

width between post      2680mm
Whole height                 2757mm
Package size                 1070 × 450 × 2977mm
20 container                  24sets
40 container                  48 sets

Two Points Lock Release: Manual,Pneumatic,Electric.(Optional)
