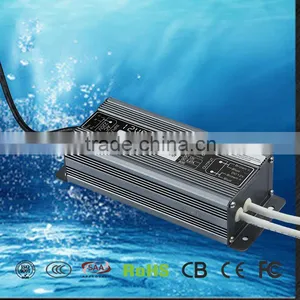

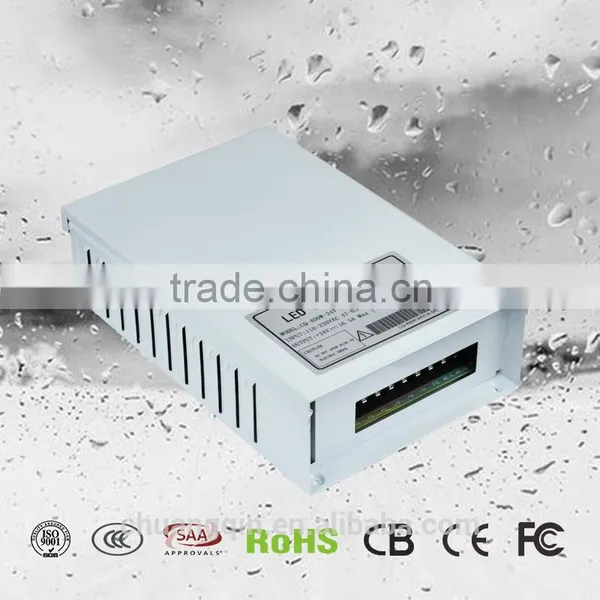

Aluminum Water-preventd Case 80w 6.5a LED 12v Power Supply Approved by CE/ROHS Ect

Item No.

CQ-80W-12V

CQ-400W-12V

CQ-600W-5V

CQ-80W-24V

CQ-400W-24V

CQ-600W-24V

Output

DC Voltage

12V

 12V

12V

24V

 24V

24V

Rated Current

 6.5A

33A

50A

8.3A

16.6A

25A

Current Range

0~6.5A

0~33A

0~40A

0~8.3A

0~16.6A

0~25A

Rated Power

80W

400W

600W

 80W

400W

600W

Ripple & Noise (Max) Note 2

125mVp-p

150mVp-p

150mVp-p

150mVP-p

150mVp-p

150mVp-p

Voltage Tolerance Note 3

±1%

±1.0%

Line Regulation

±1.0%

±0.5%

±0.5%

±0.2%

±0.6%

±0.5%

Load Regulation

±2.0%

±0.5%

±0.5%

 ±0.2%

±0.6%

±1.0 %

Set up time,Hold time

  200ms, 800ms,1000ms,50ms,20ms ,16msat full load

 Input

 Voltage Range Note. 4

90~250VAC;100~250VAC  vary by switch

Frequency Range

47~63Hz

 Efficiency (Type.)

86%

84%

80%

80%

84%

82%

 AC Current (Type.)

3.15A/115VAC 1.5A/230VAC

 Inrush Current (Max)

Leakage Current

Protection

Over Load

105 ~ 150% rated output power

Protection short circuit shut down o/p voltage, re-power on to recover

Over Voltage

5.75~6.75V

 13.8 ~16.2V

5.75  ~6.95V

27.6 ~ 32.4V

 27.8~32.6V

15.6v ~ 18.2V

Protection type: Shut down o/p voltage, re-power on to recover

Environment

Working Temperature

-30 ~ 70°c

Working Humidity

20 ~ 90% RH non-condensing

Storage temp & Humidity

-40~+80°c,10~95%RH

Temp. coefficient

±0.03/ºc (0~50°c)

Vibration

10 ~ 500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes

Safety and EMC

 Safety Standards

IP42 approved

Withstand Voltage

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500vdc

Isolation Resistance

I/P-O/P,I/P-FG:100M OHMS/500VDC

EMC Emission

Compilance to EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,light industry level, criteria A

EMC Immunity

Comply with EN55022 class B, EN61000-3-2 class A (≤80% load), EN 61000-3-3

MTBF

703Khrs min, MIL-HDBK-217F (25ºC)

Net weight

0.38kg for 80W, 1.2KG for 400W,0.84KG for 600W

Remark:

1.All technical data if not mentioned, it should be measured at 230v,rated load and 25 °c of relative temperature

2.Ripple and noise are tested at 20mhz of bandwidth via 12" twitsted pair-wire terminated with 0.1uf and 47uf parael cap.

3.Tolerance:set up tolerance,line regulation and load regulation are included

4.derating may be loaded with low input voltage, it should double check the detailed static characteristics

5.As power supply need to connected with final terminal equipment, which require the equipment to comply with EMC standard on the complete installation process again
