Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 180W 7.5a Single Output Power Supply for Led 24V

180W 7.5a Single Output Power Supply for Led 24V

180W 7.5a Single Output Power Supply for Led 24V thumbnail-3

180W 7.5a Single Output Power Supply for Led 24V photo-1

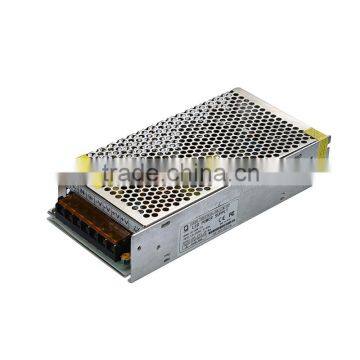

180W 7.5a Single Output Power Supply for Led 24V photo-2

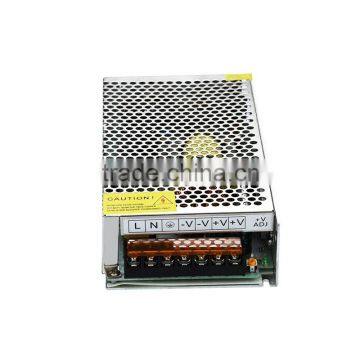

180W 7.5a Single Output Power Supply for Led 24V photo-3

US$ 6.5 - 8.3 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

CQ-180W-24V-P

Contact Supplier Request Quote Chat Now

Shenzhen Chuangqin Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name NA

Model Number CQ-180W-24V-P

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 100~250VAC

Output Voltage 24VDC/12VDC

Output Frequency 47~63Hz

Output Current 7.5A

Product Description

180W 7.5a single output power supply for led 24V

24-500W single output

Features

1.Variety suggestions voltage (85-264VAC)
2.Low profile design and style,cool by free atmosphere convection
3.Protections:Short circuit/Overload/Over voltage
4.Best quality up to 91%
5.CE, Rohs, FC standard safety criterion.
6.Best for indoor led lighting and transporting indicators.

Technical Specifications:

Item No.		CQ-24W-24V	CQ-36W-24V	CQ-60W-24V	CQ-100W-24V	CQ-120W-24V	CQ-150W-24V
Output	DC Voltage	24V	24V	24V	24V	24V	24V
	Rated Current	1A	1.5A	2.5A	4.1A	5A	6.2A
	Current Range	0~1A	0~1.5A	0~2.5A	0~4.1A	0~5A	0~6.2A
	Rated Power	24W	36W	60W	100W	120W	150W
	Ripple & Noise (Max) Note 2	150mVp-p	150mVp-p	150mVp-p	150mVP-p	150mVp-p	150mVp-p
	Voltage Tolerance Note 3	±5%	±5%	±5%	±5.0%	±5.0%	±5.00%
	Line Regulation	±0.5%	±0.2%	±0.5%	±0.2%	±0.6%	±0.5%
	Load Regulation	±0.2%	±0.5%	±0.5%	±0.2%	±0.6%	±1.0 %
	Set up time,Hold time	200ms, 800ms,1000ms,50ms,20ms at full load
Input	Voltage Range Note. 4	90~250VAC;100~250VAC vary by switch
	Frequency Range	47~63Hz
	Efficiency (Type.)	86%	88%	86%	85%	87%	86%
	AC Current (Type.)	3.15A/115VAC 1.5A/230VAC
	Inrush Current (Max)	cold start 35A
	Leakage Current	<3.5mA / 240 VAC
Protection	Over Load	105 ~ 150% rated output power
	Over Load	Protection short circuit shut down o/p voltage, re-power on to recover
	Over Voltage	5.75~6.75V	5.75~6.75V	27.6~32.4V	27.6 ~ 32.40V	21.6~26.4V	27.6v ~ 32.40V
	Over Voltage	Protection type: Shut down o/p voltage, re-power on to recover
Environment	Working Temperature	-30 ~ 70°c
	Working Humidity	20 ~ 90% RH non-condensing
	Storage temp & Humidity	-40~+80°c,10~95%RH
	Temp. coefficient	±0.03/ºc (0~50°c)
	Vibration	10 ~ 500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
Safety and EMC	Safety Standards	IP42 approved
	Withstand Voltage	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500vdc
	Isolation Resistance	I/P-O/P,I/P-FG:100M OHMS/500VDC
	EMC Emission	Compilance to EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,light industry level, criteria A
	EMC Immunity	Comply with EN55022 class B, EN61000-3-2 class A (≤80% load), EN 61000-3-3
Others	MTBF	703Khrs min, MIL-HDBK-217F (25ºC)
Others	Remark: 1.All technical data if not mentioned, it should be measured at 230v,rated load and 25 °c of relative temperature 2.Ripple and noise are tested at 20mhz of bandwidth via 12" twitsted pair-wire terminated with 0.1uf and 47uf parael cap. 3.Tolerance:set up tolerance,line regulation and load regulation are included 4.derating may be loaded with low input voltage, it should double check the detailed static characteristics 5.As power supply need to connected with final terminal equipment, which require the equipment to comply with EMC standard on the complete installation process again
