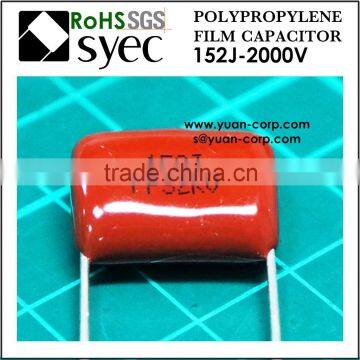

High Voltage 152J 2KV Polypropylene Film Capacitor
- 20000 Piece / Pieces per Month
- Port of Kaohsiung
You May Like
-
High Voltage 223J 2KV Polypropylene Film Capacitor Price List of Capacitor
-
High Voltage 471J 2KV Polypropylene Film Capacitor
-
Taiwan 471J 2KV Polypropylene Film Capacitor High Voltage Capacitor
-
High Voltage Capacitor 252J 3KV Polypropylene Film Capacitor
-
10000pF 50VDC Axial PSA 103J 50VDC Polystyrene Film Capacitor
-
1000pF 63VDC Axial PSA 102H 50VDC Polystyrene Film Capacitor
Product Details
| Place of Origin | Taiwan, China | Brand Name | Yuan Corp | |
| Model Number | PPS152J2KV | Type | Polypropylene Film Capacitor | |
| Application | Other, Audio | Package Type | Through Hole | |
| Capacitance | 1500pF | Rated Voltage | 2000VDC, 1200VDC~2000 VDC | |
| Operating Temperature | -40℃~+85℃ |
Product Description
High Voltage 152J 2KV Polypropylene Film Capacitor
PPS are non-inductively wound with Polypropylene dielectric and metallized Polypropylene film in series with aluminum foil for electrodes using copper-clad steel leads and epoxy resin coating. They are ideal for high frequency and high pulse rise time circuits and find wide application in snubbers ,switcher & high voltage power supplies, electronic lighting ballasts and deflection circuit in TV-sets (fly-back tuning).
FEATURES :
- High corona starting voltage.
- High current rating and high dv/dt.
- Series electrode construction.
- Self healing properties .
SPECIFICATION :
- Operating Temperature : -40℃~+85℃
- Capacitance Range : 0.0001uF~0.022uF
- CAPACITANCE TOLERANCE : ±1%(F)±2%(G)±5%(J) ±10%(K)
- RATED VOLTAGE : 1200VDC-2KVDC
- DISSIPATION FACTOR : 0.1%MAX AT 1KHZ,25℃
- INSULATION RESISTANCE : >30000MΩ.uF (C<=0.1uf)
- TESTING VOLTAGE : WVDCx 150 % For 1~5sec
- SOLDERABILITY : 230℃±5℃ 3sec
RV SIZE CAP | 1200VDC | 1600VDC | 2000VDC | |||||||||
W | H | T | P±1 | W | H | T | P±1 | W | H | T | P±1 | |
101~821 | 19.0 | 8.5 | 5.5 | 15.0 | 19.0 | 9.5 | 6.0 | 15.0 | 19.0 | 12.5 | 7.5 | 15.0 |
102 | 19.0 | 9.5 | 5.5 | 15.0 | 19.0 | 10.5 | 6.5 | 15.0 | 19.0 | 15.0 | 8.5 | 15.0 |
122 | 19.0 | 10.0 | 5.5 | 15.0 | 19.0 | 10.0 | 7.0 | 15.0 | 19.0 | 15.5 | 8.5 | 15.0 |
152 | 19.0 | 10.0 | 6.0 | 15.0 | 19.0 | 11.5 | 7.0 | 15.0 | 19.0 | 16.0 | 9.0 | 15.0 |
222 | 19.0 | 11.0 | 6.5 | 15.0 | 19.0 | 12.5 | 7.5 | 15.0 | 19.0 | 16.0 | 9.0 | 15.0 |
272 | 19.0 | 11.5 | 6.5 | 15.0 | 19.0 | 13.5 | 8.0 | 15.0 | 19.0 | 16.5 | 10.0 | 15.0 |
332 | 19.0 | 12.5 | 7.5 | 15.0 | 19.0 | 14.0 | 8.5 | 15.0 | 19.0 | 16.5 | 10.5 | 15.0 |
392 | 19.0 | 12.5 | 8.0 | 15.0 | 19.0 | 14.5 | 9.5 | 15.0 | 26.0 | 16.5 | 10.5 | 20.0 |
472 | 19.0 | 14.0 | 8.0 | 15.0 | 19.0 | 15.5 | 9.5 | 15.0 | 26.0 | 17.0 | 11.0 | 20.0 |
562 | 19.0 | 13.5 | 8.0 | 15.0 | 26.0 | 15.5 | 10.0 | 20.0 | 26.0 | 17.5 | 12.0 | 20.0 |
682 | 19.0 | 14.5 | 9.0 | 15.0 | 26.0 | 16.5 | 10.5 | 20.0 | 26.0 | 19.5 | 13.5 | 20.5 |
822 | 19.0 | 15.5 | 9.5 | 15.0 | 26.0 | 17.5 | 11.5 | 20.0 | 26.0 | 21.5 | 16.5 | 20.5 |
103 | 19.0 | 15.5 | 16.5 | 15.0 | 26.0 | 18.0 | 13.5 | 20.5 | 32.0 | 20.0 | 14.0 | 27.5 |
123 | 24.5 | 15.0 | 9.0 | 20.0 | 26.0 | 19.5 | 14.0 | 20.5 | 32.0 | 22.0 | 15.0 | 27.5 |
153 | 24.5 | 15.5 | 9.5 | 20.0 | 32.0 | 22.5 | 17.5 | 27.5 | 32.0 | 23.0 | 18.5 | 27.5 |
223 | 25.0 | 16.5 | 10.0 | 20.0 | 32.0 | 25.0 | 18.5 | 27.5 | 32.0 | 25.5 | 19.5 | 27.5 |
High Voltage 152J 2KV Polypropylene Film Capacitor
| Capacitor | High Voltage Capacitor | Price List of Capacitor |
High Voltage 152J 2KV Polypropylene Film Capacitor
| Capacitor | High Voltage Capacitor | Price List of Capacitor |
Packaging : Bulk or Tape ( Lead Pitch < 75mm )
Delivery Detail : about 15 days after payment received
High Voltage 152J 2KV Polypropylene Film Capacitor
| Capacitor | High Voltage Capacitor | Price List of Capacitor |
Web Site :
We are Same Yuan.
Established in 1982 in Kaohsiung, Taiwan, Same Yuan Capacitor Enterprises Co., Ltd. is positioned as a professional PS (polystyrene), PP (polypropylene) and PE (polyester) film capacitors manufacturer. We design and produce film capacitors in Taiwan under the brand of "Same Yuan". OEM business is also welcome. We are the main PS/PEN/PPN film capacitors maker in Taiwan at present. As a professional manufacturer,
We offer our clients the following advantage:
- Best quality
- Speedy Delivery
- Competitive Price
- Prompt Service
- Complete Satisfaction
- Innovation Technology
High Voltage 152J 2KV Polypropylene Film Capacitor
| Capacitor | High Voltage Capacitor | Price List of Capacitor |
Our main products:
- Polystyrene Film Capacitor (Inductive Type)
- Polypropylene Film Capacitor (Non-inductive type)
- High Voltage Polypropylene Film Capacitor
- Polyester Film Capacitor
- Metallized Polyester Film Capacitor
- Metallized Polypropylene Film Capacitor
- Mini Box Capacitor
- X2 Capacitor
High Voltage 152J 2KV Polypropylene Film Capacitor
| Capacitor | High Voltage Capacitor | Price List of Capacitor |
Contact Us
- SAME YUAN CAPACITOR ENTERPRISE CO., LTD.
- Contact nameSam Lin Chat Now
- Phone886-7-7822157
- AddressNo. 45
