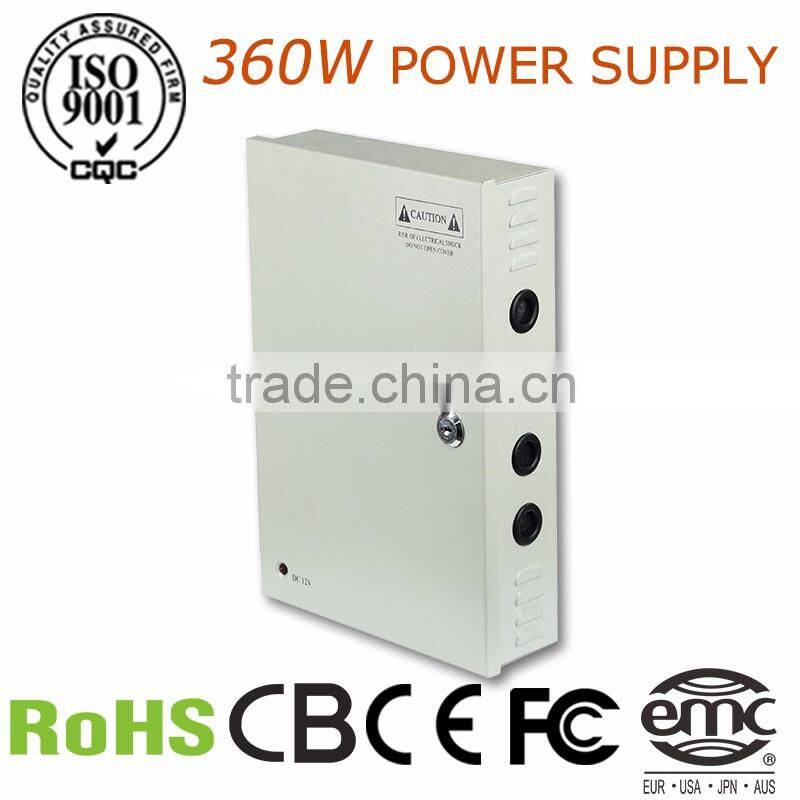

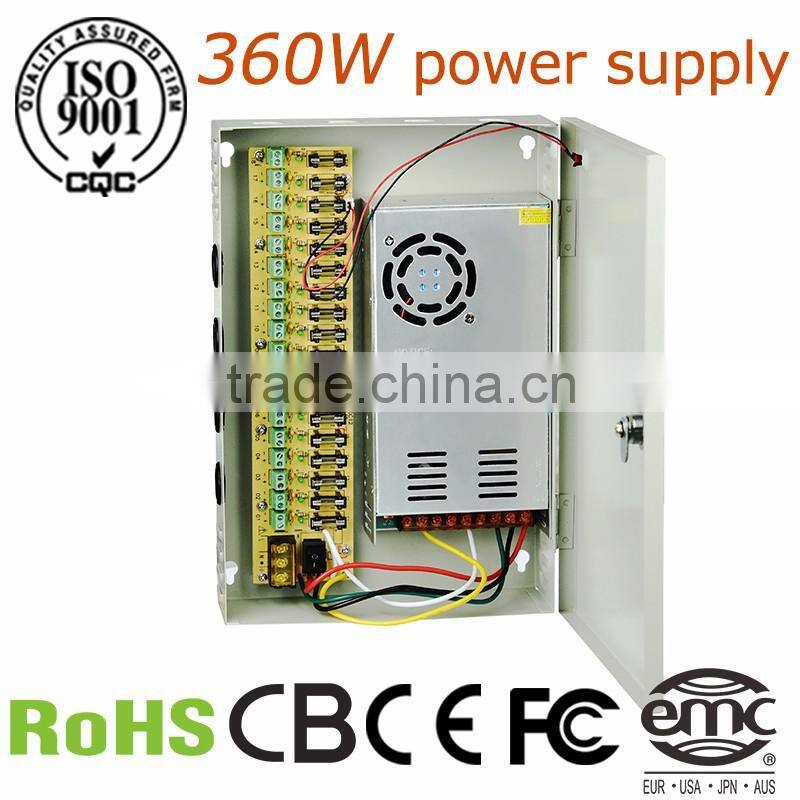

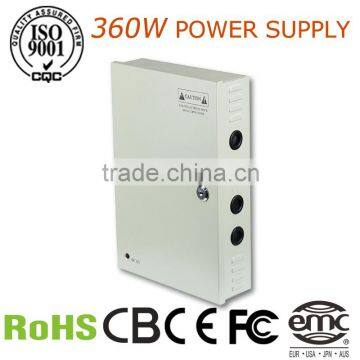

OEM High quality 360W CCTV 18 channel output switching led power suply
24-500W single output
In order to ensure the safety of human use before installation, please note:
1. Select the correct input voltage and the input and output connection method.
2. Do not peel off the power before installing a protective layer to prevent foreign matter falling into the lead when the power supply is damaged.
3. After installation please tear in addition to the protective layer, so as not to affect the power cooling.
4. To avoid electric shock, do not disassemble the power supply chassis.

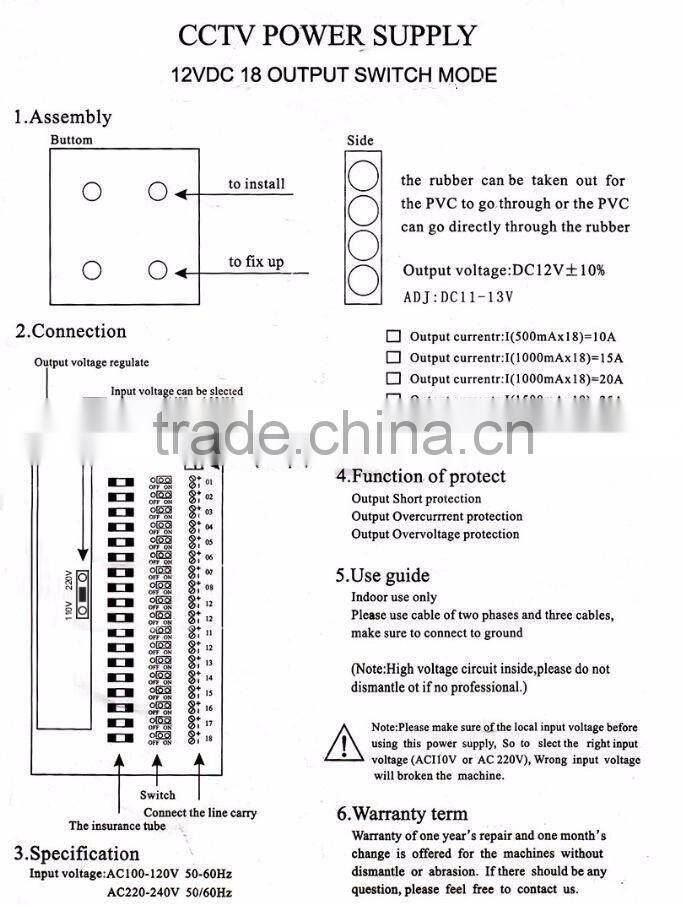

Product installation instructions:
1.The installation, use a length of less than 4mm screw to fix the power supply reliability.
2. Before the installed power run, check and proofread each wiring terminals on, make sure the input and output, AC and DC, positive and negative voltage And current values such as the right to eliminate wrong connection reverse phenomenon, to avoid damage to the power supply and user equipment.
3. Use a multimeter to measure power before hot, neutral and ground short circuit, the output is shorted; load when power is the best start.
4. Do not exceed the power supply when using the nominal value, so as not to affect the reliability of the product. To change the power supply output parameters, the power supply to the customer before using our technical Surgery department consulted to ensure the use of the product and reliability.
5. In order to ensure the safety and reduce the use of interference, ensure reliable grounding ground (grounding wire more than AWG18 #).
6, In order to extend the life of power, our company can provide duct design solutions.
7. Do not frequent switching power supply, or affect their life.
8,If you have any problem during the usage, such as power failure, please do not repair them by yourself, please contact the company as soon as possible to resolve.
Features1.Low energy consumption, high stablebility
oling down by free atmosphere convection
3.Protects:Short circuit/Surcharge/Over voltage
4.High efficiency roughly 91%
5.CE, Rohs, FC safety criterion.
6.2 years quality warranty
Item No. | CQ-360-12V18CH-CCTV
| ||||||
Output | DC Voltage | 12V
| |||||
Rated Current | 30A
| ||||||
Current Range | 0~1.5A Each Channel, Total:0~30A for 18channel
| ||||||
Rated Power | 360W
| ||||||
Ripple & Noise (Max) Note 2 | 120mVp-p
| ||||||
Voltage Tolerance Note 3 | ±10% | ||||||
Line Regulation | ±2.0%
| ||||||
Load Regulation | ±2.0%
| ||||||
Set up time,Hold time | 800ms,50ms at full load | ||||||
Input | Voltage Range | 90~250VAC; | |||||
Frequency Range | 47~63Hz | ||||||
Efficiency (Type.) | 86%
| ||||||
AC Current (Type.) | 3.5A/226AC, 1.8A/240VAC | ||||||
Inrush Current (Max) | cold start 15A/115VAC 30A/230VAC | ||||||
Leakage Current | <3.5mA / 240 VAC | ||||||
Protection | Over Load | 105 ~ 150% rated output power | |||||
Protection short circuit shut down o/p voltage, re-power on to recover | |||||||
Over Voltage | 5.75~6.75V
| ||||||
Protection type: Shut down o/p voltage, re-power on to recover | |||||||
Environment | Working Temperature | -30 ~ 70°c | |||||
Working Humidity | 20 ~ 90% RH non-condensing | ||||||
Storage temp & Humidity | -40~+80°c,10~95%RH | ||||||
Temp. coefficient | ±0.03/ºc (0~50°c) | ||||||
Vibration | 10 ~ 500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes | ||||||
Safety and EMC
| Safety Standards | IP42 approved | |||||
Withstand Voltage | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500vdc | ||||||
Isolation Resistance | I/P-O/P,I/P-FG:100M OHMS/500VDC | ||||||
EMC Emission | Compilance to EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,light industry level, criteria A | ||||||
EMC Immunity | Comply with EN55022 class B, EN61000-3-2 class A (≤80% load), EN 61000-3-3 | ||||||
- 100% burn-in test before shipment
- OEM & ODM packing design acceptable
- 24 months quality guarantee service
- quick response about RFQ within 6 hours
- sampling support (1~5 pieces)
- for LOGO printing, MOQ could be 300~500 pcs
- product OEM & ODM welcome.
- Shipping ways: Sea, air or courier.
