FY-BHP-1752 Series Hydraulic Bearing Puller Set With High Quality

FY-BHP-1752 Series Hydraulic Bearing Puller Set With High Quality thumbnail-1
FY-BHP-1752 Series Hydraulic Bearing Puller Set With High Quality photo-1
US$ 0.01 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Chinese brands
Model Number:
For bearing
Contact Supplier Request Quote Chat Now
JieBang International Trading (Tianjin) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Chinese brands
Model Number For bearing

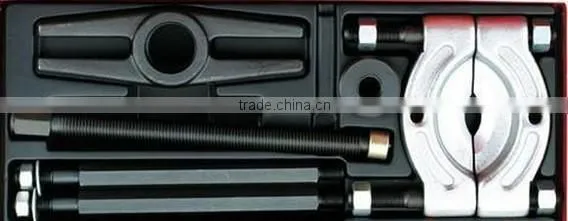

Multi-purpose Bearing Puller gear puller set

FY-BHP-1752 series hydraulic bearing puller set with high quality

Specefication:

This split collet type internal puller is suitable for extracting bearings from blind housings.


The four collets are made out of chrome molybdenum steel



They expand to give a positive grip in the inner bearing race.



Sizes: 11 - 14mm (3/8" to 1/2"), 15 - 19mm (9/16" to 11/16"), 18 - 25mm (5/8" to 1"), 25 - 32mm (1" - 1 1/4").



Comes with a 900gm slide hammer



Clamps open by turning handle clockwise to obtain a snug fit allowing the bearing to be pulled out evenly



without causing damage

Multi-purpose Bearing Puller 300mm(12'')



I. TECHNICAL REFERENCE:

ITEM & SIZE

DIAMETER(mm)

TICHNESS(mm)

SIX-RAY SUBTENSE

MIN

MAX

75mm

40

75

<30

14

100mm

50

100

<45

17

150mm

60

150

<60

17

200mm

80

200

<75

19

250mm

100

250

<90

24

300mm

125

300

<105

27

350mm

150

350

<120

30



Details about the  bearing puller





OUTPUT

SPREAD

  CROSS

BEARING

PULLER

BEARING

 CUP

PULLER

BEARING PULLER

ITEM

(Ton)

(mm)

MAX.REACH(mm)

ADJUSTING SCREW THREAD(mm)

ADJUSTING SCREW THREAD(mm)

PULLER LEGS'LENGTH(mm)

REACH(inch)

SPREAD(inch)

SPREAD(inch)

 BHP-162

 8

106-266

 462

 3/4"-6 UNF

 400

 105

 4.33

1.06-4.33

0.98-4.09

BHP-261G

 20

139-351

 571

 1"-8 UNC

 675

 239

 5.51

0.98-8.66

0.39-5.12

BHP-361G

 30

179-454

 711

 1 1/4"-7 UNC

 795

 203

 5.71

1.97-14.17

0.67-9.65

BHP-561G

 50

220-570

 863

 1 5/8"5.5 UNC

 975

 609

 5.71

1.97-14.17

0.67-9.65



-High quality,forged steel components provides superior reliability and service.

-The cross bearing  puller without hydraulics,bearing cup puller and bearing puller can be ordered separately.



More Pictures for slewing ring bearing



  FY-BHP-1752 series hydraulic bearing puller set with high qualityFY-BHP-1752 series hydraulic bearing puller set with high qualityFY-BHP-1752 series hydraulic bearing puller set with high qualityFY-BHP-1752 series hydraulic bearing puller set with high quality



Work shop ---------Jiebang



FY-BHP-1752 series hydraulic bearing puller set with high quality FY-BHP-1752 series hydraulic bearing puller set with high qualityFY-BHP-1752 series hydraulic bearing puller set with high quality FY-BHP-1752 series hydraulic bearing puller set with high quality

We make it our business to ensure that our customers’ equipmenrun safely and smoothly;Quality and innovation are the core of developing.

With our huge stock of various imported bearings timely;

Our high added-value products

Can save more cost for our customers.



Application---------JIEBANG



FY-BHP-1752 series hydraulic bearing puller set with high quality

1.Machine Manufacturing

2.Typical Appication:

3.Typical Products

4.Power Transmission

5.Heavy Industry

6.Postioning Control

7.Consumer Products

8.Windpower Generation



Packaging & Shipping



PACKING----------JIEBANG



FY-BHP-1752 series hydraulic bearing puller set with high quality FY-BHP-1752 series hydraulic bearing puller set with high quality FY-BHP-1752 series hydraulic bearing puller set with high quality FY-BHP-1752 series hydraulic bearing puller set with high quality



Shipping and payment terms----------------------------Jiebang





1. Payment:

   1) TT, 30% deposit , 70% before shippment.
   2) L/C at sight. (high bank charge, not suggest , but acceptable )
   3) 100% Western Union in advance. (specially for air shipment or small amount)

2. Delivery:

   1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )

   2) Between 45 - 200 KGS, we will send by  air transport. ( Fastest and safest, but expensive )

   3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )



Very warmly contact us for more details!



Jiebang International Trading (Tianjin)Co.,Ltd

Josie Chou/sales

Add:The Jinbing Avenue ,Xiangluowan business district inTanggu district ,Tianjin

Tel:+86 13121815546

Fax:+86 022 59891271

Skype:josie_chou13   QQ/Wechat:1179084530

Web:

Thankyou for your attention, and hope you have a good day!
