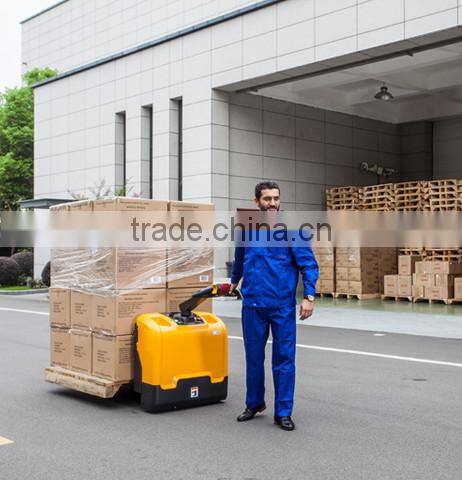

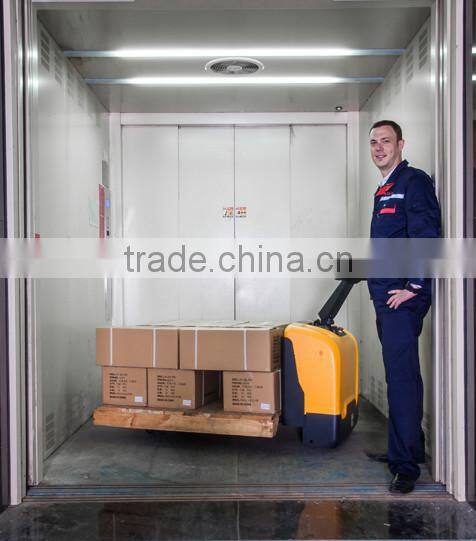

mini walkie electric pallet truck with CE certificate
Main specification:
| Model | ABD15W |
|
| Load capacity | Q(kg) |
1500 |
| Fork height, lowered | h13(mm) |
85/75 |
| Tyre size, front | mm |
Φ195 |
| Tyre size, rear | mm |
Φ80/Φ74 |
| Wheels, number front rear(x = driven wheels) | 1x-2/4 |
|
| Height of tiller in drive position min./ max | h14(mm) |
950/1310 |
| Overall length | l1(mm) |
1508/1578 |
| Length to face of forks | l2(mm) |
358 |
| Overall width | b1(mm) |
685 |
| Fork dimensions | s/e/l(mm) |
53/160/1150(1220) |
| Width overall forks | b5(mm) |
520/550/685 |
| Aisle width for pallets 1000×1200 (1200 crossways) | Ast(mm) |
1708/1778 |
| Aisle width for pallets 800×1200 (1200 lengthways) | Ast(mm) |
1758/1778 |
| Turning radius | Wa(mm) |
1320/1389 |
| Travel speed, laden/ unladen | km/h |
5.3/5.8 |
| Battery volts/ Cap | v/ah |
24/80 |
| Battery dimensions ( l*w*h) | mm |
260/169/215 |
| Battery weight | kg |
49 |
| Service weight (with battery) | kg |
230 |
Advantages
With smallest turning radius 1320mm-1389mm (width 520mm-685mm).
Permanent magnet brushless motor with high electric efficiency , maintenance free.
Full sealed battery free to maintain, big capacity 24v/80AH fit for high intensity use .
Max speed limit button can release brake when handle under upright position, reduce turning space greatly. (option for frei handle)
High travel speed is up to 5.3-5.8km/h, improve productive efficiency.
Floating balance wheel is automatic adjust height, prevents shaking when unload.
Horizontal drive wheel provides convenient replacement.
Standard Features
RUYI new type Tiller Head with Max. speed limit button.
Emergency stop & belly button.
BDI and hour meter.
Casters to balance stability.
Sealed battery.
Brush-less Horizontal motor.
Built-in Charger.
Exist roller.
production show:
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
FACTORY VIEW
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
