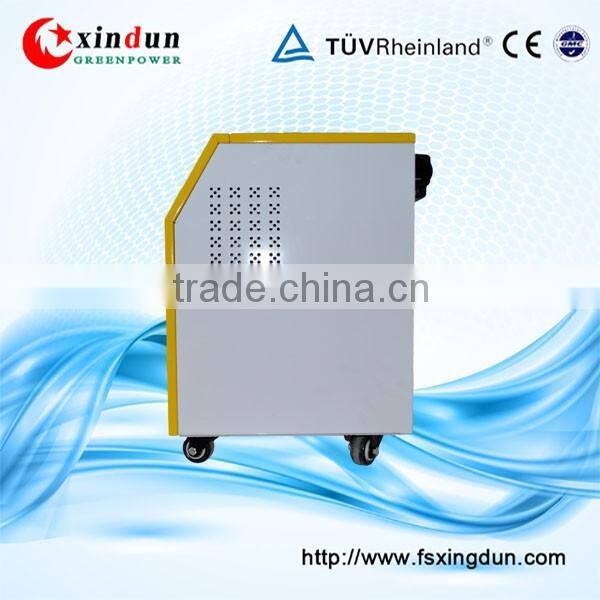

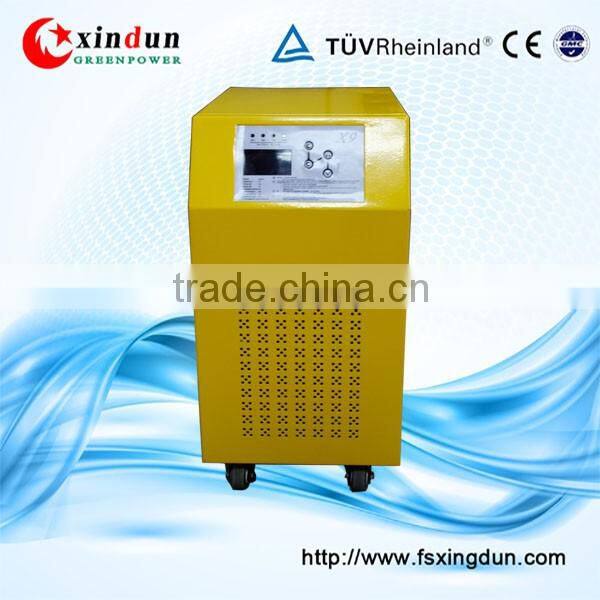

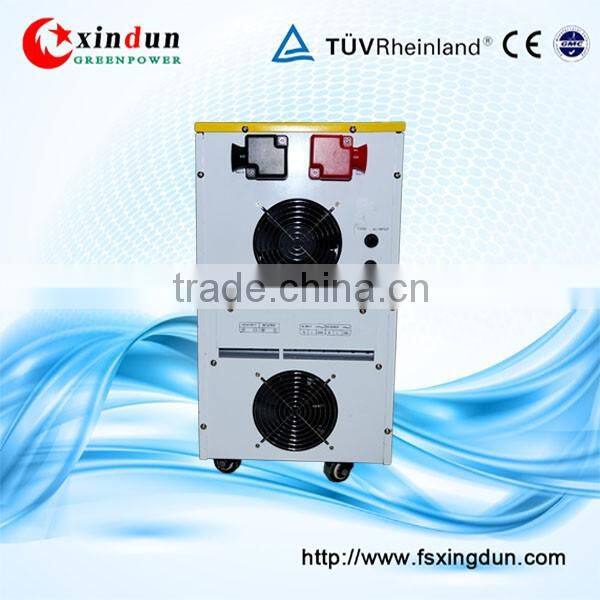

X9 Series Low Frequency Inverter 1000W 2000W 3000W 4000W 5000W 6000W 7000W With Built-in Controller
X9 series low frequency inverter 1000W-7000W with built-in controller
Feature
1. solar energy first or grid power first for different client's needs
2. integrated with AC charger and PWM/MPPT solar charge controller
3. Automatic transfer between solar and grid power within 4 ms
4. Sleep mode function for low energy consume
5. Battery type option which can prolong battery life
6. RS232 communication optional
7. 2 pieces intelligent fan that good for device cooling
| Model X9-T | 10212/24 | 15212/24 | 20212/24 | 30224/48 | 40224/48 |
| Continuous power (W) | 1000W | 1500W | 2000W | 3000W | 4000W |
| Surge capability (W) | 2000W | 3000W | 4000W | 6000W | 8000W |
| System DC input (VDC) | 12V or 24VDC | 12V or 24VDC | 12V or 24VDC | 24V or 48VDC | 24V or 48VDC |
| AC input | 170-275VAC(220V) 186-300VAC(240v) 85-138VAC(110V) 93-150VAC(120v) | ||||
| AC Output | 110 / 120V/ 220V/240V ± 2% , 50HZ or 60HZ. Terminal | ||||
| AC Output waveform | Pure Sine Wave | ||||
| DC output | 12VDC Terminal | ||||
| Efficiency | >85% | ||||
| AC/DC Charger | optional, from 0A -Max 30A | ||||
| Solar Charge Controller | MPPT/PWM, decided by customer, Max 50A | ||||
| External battery back | 12V or 24VDC | 12V or 24VDC | 12V or 24VDC | 24V or 48VDC | 24V or 48VDC |
| Package Size(mm) | 358*254*480 | 390*265*535 | 450*340*565 | ||
| Gross Weight KG | 19.5 | 22 | 31 | 35 | 41.5 |
| product Size (mm) | 306*202*420 | 366*223*472 | 426*273*513 | ||
| product weight( kg) | 16.5 | 19 | 27 | 31 | 46 |
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery time.
2. MOQ: 1 PCS
3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
Q1: Are you a factory?
A1: Yes, we are a factory of inverter over 11 years, solar controller and solar generator since 2005 year.
Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverters are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Our inverter can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
Q5: Why choose us?
A5: 1. Provide the long time maintenance service.
2. Provide the extended warranty as expected.
3. Provide the regular routine maintenance service.
4. 100% QC inspection and testing before shipment.
5. CE listed, competitive price.
6. OEM/ODM Acceptable.
7. China Telecom's Considered Cooperation Partner.
Feel free to contact me for more questions.
LET THE GREEN POWER LIGHT YOUR LIFE!
