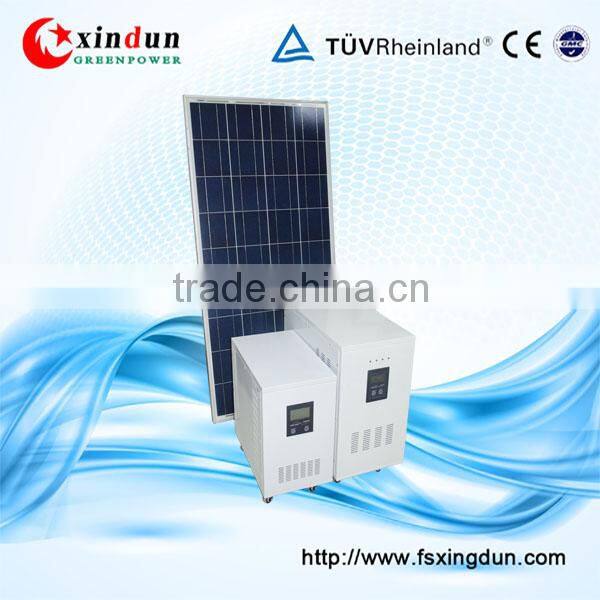

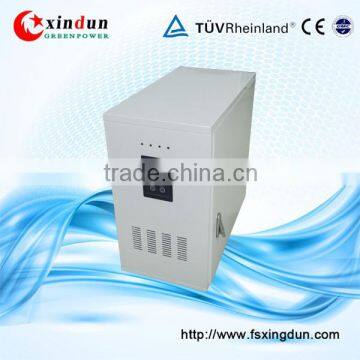

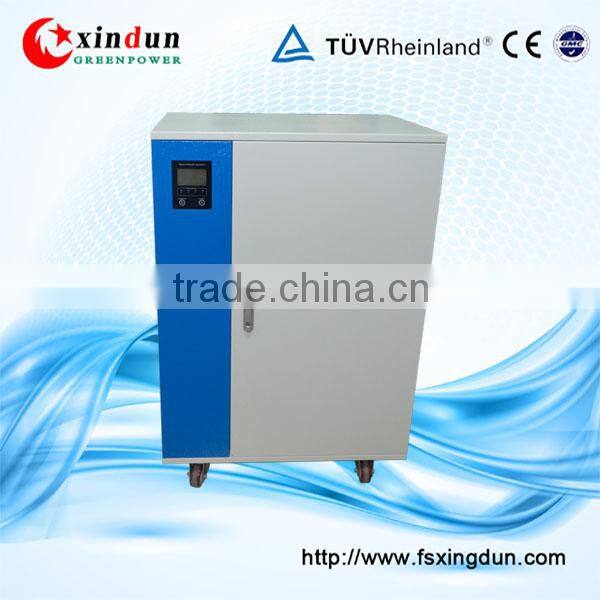

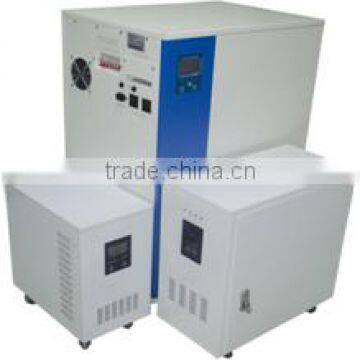

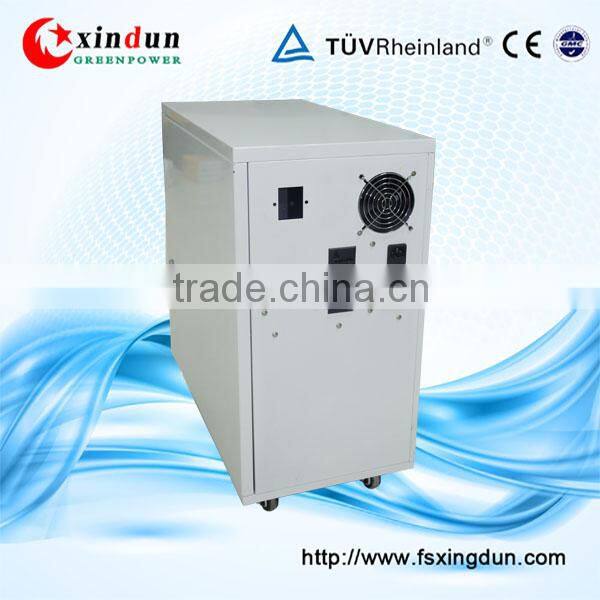

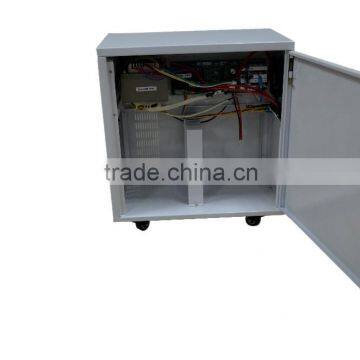

China supply home solar power system use 1KW 2KW 3KW 3 in 1 inverter battery builtin solar generator cabinet

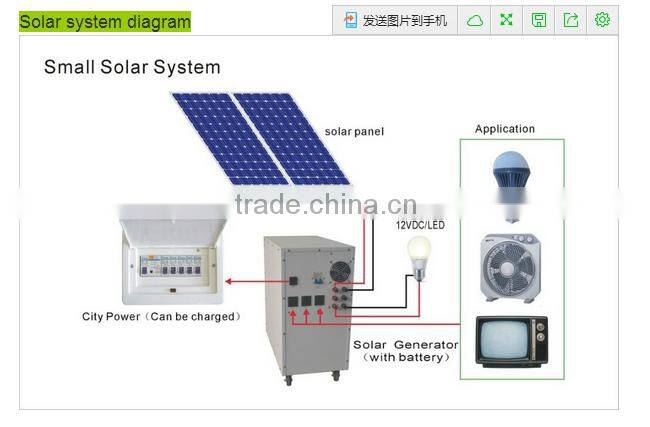

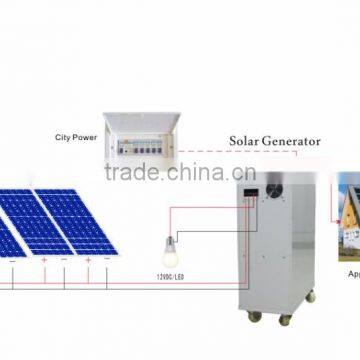

Solar module:solar battery module(also called photovoltaic battery module)in series or in parallel according to the system requirements,the solar energy will change into electrical energy in the light of the sun and then output,it is the core component of solar photovoltaic system.
Controller: solar power controller is an important part of the solar power system, System of charging and discharging and load work automatically by its intelligent control and protection. Its performance directly affects the reliability of the system. Especially the battery life, overcharge or over discharge will be cause damage and even lethal damage for the battery.
Inverter: in solar photovoltaic power supply system, if it has the AC load, it is necessary to use the devices of the inverter. The direct current generated by solar modules or the battery release of DC into AC for load.
Battery:Stored up the electricity produced by the solar cell module produce,When illumination is insufficient or night or load demand is greater than the power produced by the solar cell module.Stored energy will be released in order to meet the load demand of energy,It is the solar energy photovoltaic system energy storage unit.Currently solar pv system commonly used is lead acid battery,For higher requirements of the system,Usually adopt deep discharge vrla battery ,deep discharge suction fluid type lead-acid battery,etc
| Specifications: | ||||||||
| Model XD- | TNY50112-10 | TNY70112-50 | TNY10224-50 | TNY20248-40 | TNY50296-50 | |||
| Solar Energy Module | Type | Monocrystalline silicon A level | ||||||
| Power | 100W | 500W | 1100W | 1800W | 4400W | |||
| Daily Power generation(Sunshine according to 5H) | 0.5KWH | 2.5KWH | 5.5KWH | 9KWH | 22KWH | |||
| Size(mm) | 1160×660×35×1 | 1250*660*35*4 | 1360*900*40*6 | 1620*990*40*8 | 1955*990*45*16 | |||
| PV Controller | Control mode | Direct charge/PWM/MPPT | ||||||
| Charge current | 10A | 50A | 50A | 40A | 50A | |||
| Rated charging voltage | 12VDC | 12VDC | 24VDC | 48VDC | 96VDC | |||
| Compulsive charging voltage | 14.8V | 29.6V | 59.2V | 118.4V | ||||
| Balanced charging voltage | 14.4V | 28.8V | 57.6V | 115.2V | ||||
| Floating charging voltage | 13.8V | 27.6V | 55.2V | 110.4V | ||||
| Recovery charging voltage | 13.3 | 26.6V | 53.2V | 106.4V | ||||
| Battery overvoltage protection/recovery | 16.5V/15V | 33V/30V | 66V/60V | 132V/120V | ||||
| Protection function | Reverse connection, short circuit, overcharge, anti charge protection | |||||||
| Display | LED | |||||||
| PV Inverter | Rated Capacity | 500W | 700W | 1000W | 2000W | 5000W | ||
| DC voltage | 12V | 24V | 48V | 96V | ||||
| Undervoltage protection | 10.5V | 21V | 42V | 84V | ||||
| Inverter structure | Low frequency structure | |||||||
| Mains input | 75VAC-125VAC or 145VAC-275VAC | |||||||
| Inverter output | 110VAC+/-2% or 220VAC+/-2% | |||||||
| Mains input charging current | 10A | |||||||
| Working way | Mains priority/solar power priority (optional) | |||||||
| Conversion time | ≤4ms | |||||||
| Overload capacity | Overload 110% 30 seconds the machine automatically shut down; overload shutdown 120% 2 seconds; mains mode overload do not shutdown | |||||||
| Conversion efficiency | ≥80% | |||||||
| Output waveform | Pure sine wave | |||||||
| Work environment | Temperature0-40°C,Humidity10-90% | |||||||
| Cooling mode | Forced air cooling | |||||||
| Protection function | Mains over / under-voltage, direct current is too high / undervoltage, the inverter output short circuit | |||||||
| Display | LCD | |||||||
| Output waveform distortion | ≤±0.3% | |||||||
| Input and output frequency | The same with power system | |||||||
| Battery | Battery Type | Deep cycle maintenance-free lead-acid battery | ||||||
| Battery capacity | 100AH/12V×1 | 200AH/12V×1 | 100AH/12V×2 | 200AH/12V×4 | 100AH/12V×8 | |||
| Discharge time(full Load calculation) | 1.3H | 1.8H | 1.3H | 2.8H | 1.1H | |||
| Machine specifications | Size(mm) | 465×245×465 | 580×280×470 | 580×300×610 | 600×540×940 | |||
| Weight | 48KG | 81KG | 7KG | 302KG | 332KG | |||
| Remarks | Specification for reference.Subject to change without prior notice | |||||||
package
1. We have the carton box and wood package, it depend on the reated power of the inverter
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery time.
2. MOQ: 1 PCS
3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
Q1: Are you a factory?
A1: Yes, we are a factory of inverter , solar controller and solar generator since 2005 year.
Q2: Can you provide free sample?
A2: Yes, we will charge when first time to place order, but return back when our customer re-order.
Q3:How about the delivery?
A3: would be on time since we have reasonable workshop working schedule and worker to support.
Why Choose Us?
1. We are Alibaba assessed gold supplier.
2. We are a professional manufacturer of power inverter and controller with over 10 years experience.
Best production capability, best quality control, best service.
3. 100% QC inspection and testing before shipment.
4. CE listed, competitive price.
Sherry is 24 hours, 7 days Hot Line for consulting and Technical Support.
Sherry Yang(+86 13760629244/whatsapp)
Skype:sherry412008
Address: 3/F, Bldg.3, area C, European Industry Park, Chancheng Dist., Foshan, Guangdong, China
