CNC Hydraulic Roller Bending Machine

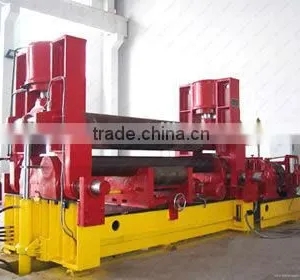

CNC Hydraulic Roller Bending Machine thumbnail-1
CNC Hydraulic Roller Bending Machine photo-1
US$ 8,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
ALMACO
Contact Supplier Request Quote Chat Now
Almaco Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number W11S
Machine Type Beading Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services Other, Measure
Certification ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas



Product Description



CNC hydraulic roller  bending machine

This machine belongs to hydraulic 3-roller plate rolling machine. The top roller makes up-down movement and horizontal movement, the up-down movement is drove by the force of hydraulic oil in hydraulic cylinder on the piston rod, it is fluid drive and the two lower rollers make rotation movement and it provide the torque for rolling plate though the gear mesh of reducer. There are support rollers under the two lower rollers and the support roller can be adjusted; top roller is of drum shape, which can improve the straightness of products, and it is proper for various kinds of extra long section shape tanker. The pre-bending is achieved by adjusting the top roller and makes it in asymmetrical position as opposed to lower roller. Rolling of working piece is achieved by lower roller movement driven by a reducer. Due to the level of lower roller will not change, it is easy to feed the plate and operate.

1)      High-precision end of the pre-bending, set the length of the straight edge freely; direct pressure on the pre-roll bending, high-precision can be completed in advance of the end of the bend.

2)      NC control, high productivity products rolling process parameters NC, simple and substantial increase in efficiency.





Model

 Specification  Maximum thickness (mm)  Maximum width (mm)  Top roller diam eter (mm)  Bottom roller diameter (mm)  Distance between bottom rollers  Main motor power (mm)  Hydraulic motor power (kw)  Traveling motor power
11501 W11S-3 x 3200  3 3200 245 135 centre (mm)180  4 2.2 0.75
11502 W11S-6 x 1500  6 1500 175 125 160 3 2.2 0.75
11503 W11S-6 x 2000  6 2000 220 135 180 4 2.2 0.75
11504 W11S-6 x 2500  6 2500 245 135 180 4 2.2 0.75
11505 W11S-8 x 2000  8 2000 235 135 180 4 2.2 0.75
11506 W11S-8 x 2500  8 2500 255 145 200 7.5 4 0.75
11507 W11S-8 x 3000  8 3000 280 145 200 7.5 4 0.75
11508 W11S-12 x 2000  12 2000 255 150 245 7.5 4 0.75
11509 W11S-12 x 2500  12 2500 300 165 270 11 5.5 1.5
11510 W11S-12 x 3000  12 3000 350 180 300 11 5.5 2.2
11511 W11S-16 x 2000  16 2000 300 165 270 11 5.5 1.5
11512 W11S-16 x 2500  16 2500 330 180 300 11 5.5 2.2
11513 W11S-16 x 3200  16 3200 400 220 360 22 7.5 4
11514 W11S-20 x 2000  20 2000 370 220 360 22 7.5 4
11515 W11S-20 x 2500  20 2500 380 220 360 22 7.5 4
11516 W11S-20 x 3000  20 3000 425 235 380 30   4
11517 W11S-25 x 2000  25 2000 390 220 360 22 7.5 4
11518 W11S-25 x 2500  5 2500 410 235 380 30   4
11519 W11S-30 x 2000  30 2000 410 235 380 30   4
11520 W11S-25 x 3000  25 3000 450 250 400 37 15 5.5
11521 W11S-25 x 4000  25 4000 550 275 460 37 18.5 7.5
11522 W11S-30 x 2500  30 2500 460 260 420 37 18.5 5.5
11523 W11S-30 x 3000  30 3000 500 275 460 37 18.5 7.5
11524 W11S-30 x 3200  30 3200 510 275 460 37 18.5 7.5
11525 W11S-30 x 4000  30 4000 580 290 500 45 18.5 7.5
11526 W11S-35 x 2000  35 2000 460 260 420 37 18.5 7.5
11527 W11S-35 x 2500  35 2500 500 275 460 37 18.5 7.5
11528 W11S-35 x 3000  35 3000 540 290 500 45 18.5 7.5
11529 W11S-35 x 4000  35 4000 630 340 610 55 22 11
11530 W11S-40 x 2000  40 2000 500 275 460 37 18.5 7.5
11531 W11S-40 x 2500  40 2500 520 290 500 45 18.5 7.5
11532 W11S-40 x 3000  40 3000 590 340 610 55 22 11

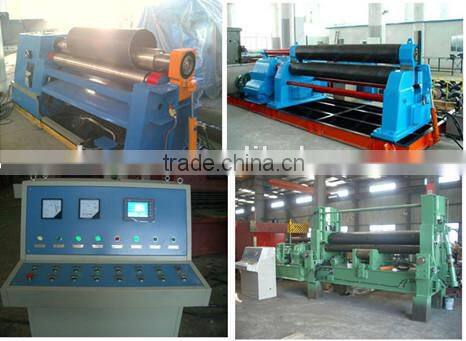

 production show:

CNC hydraulic roller bending machine

Packaging & Shipping



The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign





Our Services



1.OEM



2.Spare parts



3.Warranty for one year



4.Tech support is available for 24 hours



5.Fast delivery





Company Information



Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
 Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.









CERTIFICATION:



customer visiting:





CNC hydraulic roller bending machine

Our products are exported to more than 50 countries, more than 700 customers











FAQ



1. Accept L/C, T/T  ,D/A,D/P type of payments



2. Regarding to the technical questions, pls contact our R&D



3. Any question, call us or send email, we will try our best to satisfy you
