Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Jiangsu, China | Brand Name: | Almaco | Model Number: | Y81 |
Voltage: | 380V | Power(W): | w | Weight: | kg |
Dimension(L*W*H): | mm | Certification: | CE&ISO9001 | Warranty: | 365 days |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

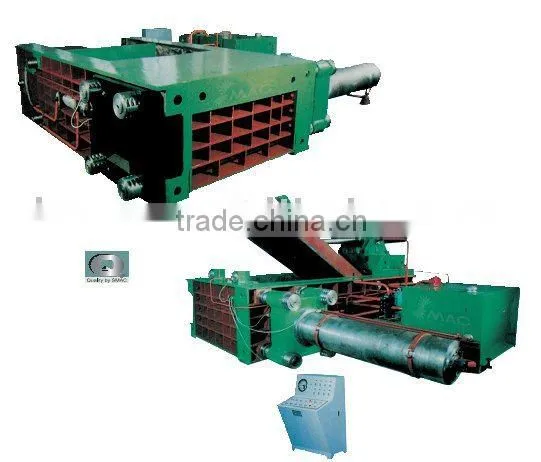

Y81 series Hydraulic Baling Press
Main Structure Features:
Y81 series of hydraulic metal scraps balers (compactors) are applied in steel plants, recycling companies, ferrous & non-ferrous metals smelting industry to compress steel parts. Scrap steel, iron, brass, aluminum and other scrap metals into cuboids, cylinders,octagons & all other shapes, so as to reduce the costs of transportation & smelting.
Baling press has 6 models from 63 to 630 tons. Compression box, bale shape to be designed to accommodate metal scraps.
Bale density>1800kg/m3 ; baling cycle 80 to 160 seconds.
Bale-discharging alternatives: "turn-out", push-out"or "forward-discharge"; operation altematives: manual or PLC control utomatic.
No foundation bolts needed during installation; use diesel engine or electricity for power.
Model | Specification | Nominal Force (KN) | Compression Box Size (mm) | Baling size (mm) | Density (kg/m3) | Cycle Length (sec) | Power (kw) | Overall size (cm) | Weight (tons) | |
11901 | Y81-63B | 630 | 1100 x 600 x 420 | 300 x 200 x 250 | >=2 | 120 | 7.5 | 350 x 240 x 190 | 5.5 | |
11902 | Y81-63C | 630 | 1010 x 500 x 370 | 300 x 150 x 150 | >=2 | 120 | 7.5 | 286 x 193 x 146 | 3.3 | |
11903 | Y81-100C | 1000 | 1600 x 700 x 480 | 500 x 300 x 300 | >=2 | 120 | 15 | 400 x 280 x 222 | 11 | |
11904 | Y81-160 | 1600 | 1600 x 1200 x 750 | 600 x 360 x 360 | >=2 | 120 | 30 | 548 x 385 x 252 | 13 | |
11905 | Y81-160B | 1600 | 1800 x 1300 x 750 | 600 x 340 x 400 | >=2 | 120 | 22 | 548 x 385 x 252 | 16 | |
11906 | Y81-250C | 2500 | 2500 x 1800 x 900 | 700 x 460 x 560 | >=2 | 240 | 37 | 610 x 600 x 400 | 37 |
