Home > Products > milling machine > the best sale and low cost chinese turret milling machine for sale TM6325A of ALMACO company

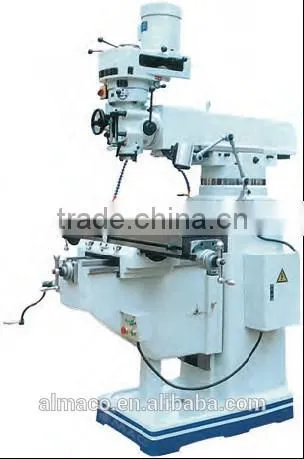

the best sale and low cost chinese turret milling machine for sale TM6325A of ALMACO company
- shanghai
- T/T L/C D/P D/A
You May Like
-
the best sale and china low cost plano milling machine X2516HD of ALMACO company
-
the best sale and high precisions china cheap plano milling machine X2512HA of ALMACO company
-
the best sale and low cost side end milling machine GL-1000C of china of ALMACO company
-
the best sale and low price chinese milling machine X2012A of ALMACO company
-
the best sale and low price chinese side-end milling machine GL-800C of ALMACO company
-
the best sale and low cost universal milling machine HUM32 of china of ALMACO company
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | ALMACO/SMAC | Model Number | TM6325A | |
| Type | Vertical | CNC or Not | CNC | |
| Voltage | 380V | Power(W) | 2.25kw | |
| Dimension(L*W*H) | 1516*1550*2080mm | Weight | 1380kg | |
| Certification | CE;ISO9001 | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
chinese turret milling machine
Double 550 swallowtail guideway is adopted on both Y and Z-axis, so it is easy to adjust. The guideway on saddle is lined with TF wearable material.
1. 550 swallowtail guildeway is adopted on Z-axis, and rectangular guideway on Y-axis.
2. Adopted strengthen rib on both sides of the columb, that makes the machine rigidly and beautiful.
1. Fixed structure is used to conned the mill head without ram, which makes the cut intensity well.
2. Rectangular guideway on Y, Z-axis makes the machine stable and rigidly. Guideway with TF wearable material.
1. Rectangular guideway on Y, Z-axes is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wearable material.
1. Rectangular guideway on Y, Z-axes makes the machine stably and rigidly.
2. The guideway on saddle is lined with TF wearable material.
Rectangular guideway is adopted both on Y, Z-axes. The guideway on saddle is lined with TF wearable material, which makes the machine stably and rigidly,also makes it beautiful and easy to operate.
chinese turret milling machine
chinese turret milling machine
| Model | TM6323A | TM6323B | TM6325 | TM6325A | TM6323B | TMU6325 | TM6325C | TM6325D | TM6330 | TM6330A | TM6333 | TM6333A | |
| Table size | 230x1067(9"x42") 230x1246(9"x49") | 254x1270 (10"x50") 254x1370 (10"x54") | 250x1270 (10"x50") | 254x1270 (10"x50") 254x1370 (10"x54") | 305x1370 (12"x54") 305x1500 (12"x60") | 330x1370 (13"x54") 330x1500 (13"x54") | |||||||
| Long travel | 650 840 | 850 950 | 770 | 850 950 | 870 1000 | 840 1000 | |||||||
| Cross travel | 305 | 420 | 400 | 420 | 420 | 380 | 368 | ||||||
| Vertical travel | 400 | 420 | 400 | 420 | 430 | 450 | |||||||
| T-slot No. and size | 3 x 16 | ||||||||||||
| Ram travel | 312 | 470 | 500 | ||||||||||
| Distance from spindle nose to table surface | 0-415 | 0-405 | 0-350 | 0-450 | |||||||||
| Spindle hole taper | (Standard): R8 (Optional): ISO 30/ISO 40 | (Standard): ISo 40 | |||||||||||
| Spindle travel | 127 | ||||||||||||
| Spindle speed | (standard): (shift gradel) 50Hz 65-4500 60Hz: 80-5440 | ||||||||||||
| (optional): (variable) 65-4500 | (optional): (variable) 65-3750 | ||||||||||||
| Auto quill feed | (three steps): 0.04(0.0015"/0.08(0.003")/0.15(0.006") mm/revolution | ||||||||||||
| Spindle motor | 2.25Kw/3HP | 2.25Kw/5HP | 2.25Kw/5HP | ||||||||||
| Head swivel | 90° | ||||||||||||
| Head tilting | 45° | 45° | 45° | 45° | 45° | 45° | FIX | 45° | 45° | 45°FIX | 45° | FIX | |
| Dimension of package | one miller per case | 1400x1476x2030 | 1516x1550x2080 | 1566x1650x2080 | 1800x2016x2180 | ||||||||
| two miller per case | 1450x1570x2080 | 1650x1790x2170 | 1720x1800x2175 | 1800x2200x2180 | |||||||||
| three miller per case | 1450x2180x2080 | 1650x2285x2235 | |||||||||||
| weight (kg) | 1100 | 1160 | 1550 | 1380 | 1420 | 1650 | 1590 | 1590 | 1700 | 1750 | 2300 | 2350 | |
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
